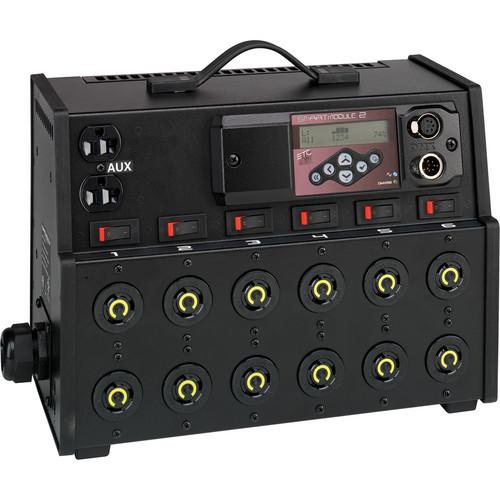

Product description SM6-10X-B 6 Circuit SmartModule 2 from ETC offers portable or permanently installed lighting control for entertainment productions of all types, museums, convention centers and other multi-use venues. The quiet, convection-cooled dimmer has 6 channels with 1,200W maximum output each, a dual Edison outlet, DMX and RDM remote addressing and control and a 120-240VAC input voltage requirement. Output is 120VAC. A 6-button smart-style, multi-language keypad allows local control of the unit and its 20 built-in chase patterns. - Applications
- Applications requiring distributed dimming and position flexibility:
- Industrial productions
- Rental productions
- Convention and conference centers
- Museums
- Casinos
- Discos
- Gymnasiums
- Cafeterias
- Multimedia rooms
- Features
-
- Convection cooled
- No fans required
- 1,200W max. per channel output
- Resettable 1,200 watt (10A) breaker output protection
- One duplex Edison convenience outlet
- DMX512A with RDM remote addressing
- Smart user interface
- Graphic level display
- Quick setup menus
- Button shortcut for manual control
- User-selectable dimmer curves
- Local and manual control of 20 chases (preprogrammed sequences)
- General
-
- 6 Dimmers
- UL / cUL Listed
- Installation requires attachment of a safety cable, data via DMX, and main power input using your choice of a panel mount connector or a flexible cable
- Mechanical
-
- Manufactured of strong, thick walled aluminum with a black baked powder-coat finish
- Integrated handle for ease of carrying
- Stackable six circuit - conveniently designed to stack vertically for storage
- Electrical
-
- Input power feed - 20A max. per phase
- 85-140VAC phase to neutral 47-63Hz
- 120-240VAC input voltage
- Output voltage: 120VAC
- Power via an attached flexible 12' SO cable with bare-ends (connector not supplied)
- 2,500V isolation between control and power components
- Dual SCR forward phase dimming
- Total load cannot exceed capacity of main power connection (wall outlet, 15A, 20A per phase)
- 75W minimum load per dimmer
- 10A magnetic supplemental circuit breaker for each output
- Thermal
-
- Maximum ambient temperature of 104°F (40° C)
- Humidity between 10 - 95% non-condensing
- Optimum cooling when mounted horizontally
- Control Features
-
- DMX512 In and Thru via 5 Pin XLR connectors
- Supports up to 32 SmartModule 2 units on one DMX line
- High contrast 2-line by 20-character backlit LCD with graphic channel level indication
- Six-button Smart-style keypad
- Two status indicators: Power and Valid DMX
- Soft patch any dimmer to any DMX channel
- Five selectable dimmer output curves: IES modified square law, linear, switched (50% threshold), fluorescent with adjustable cut-off
- Adjustable pre-heat
- Multi-language capability: English, Spanish, German, and French
In the Box ETC SM6-10X-B 6 Circuit SmartModule 2 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC SM6-10X-B 6 Circuit SmartModule 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC SM6-10X-B Specs | Material of Construction | Thick walled aluminum | | Channels | 6 Dimming channels, resettable 1,200W (10A) per channel with breakers
75W minimum load per dimmer | | Chases | 20 | | Cooling | Convection | | Connections | 5-pin XLR x2 6 Circuits (dimming)
Dual Edison outlet
Single (12'/3.7 m) SO cable with bare ends for 120-240VAC single (bi/2) phase feeds | | Control | DMX512 In and Thru via 5 Pin XLR connectors
RDM, manual | | Controller | 2-Line by 20-character backlit LCD with graphic channel level indication
Six-button Smart style keypad Two status indicators: Power and Valid DMX | | Power Requirements | Input: 120-240VAC, 20A max. per phase
85-140VAC phase to neutral 47-63Hz
Output: 120VAC | | Operation Conditions | Maximum temperature: 104°F
Humidity: 10-95% con-condensing | | Certification and Compliance | UL/cUL | | Dimensions | 15 x 10.5 x 7.25" (380 x 270 x 185 mm) | | Weight | 24 lb (10.75 kg) |
