User Manual for ETC SmartBar 2 Dimmer W Stage Pin Output Click to enlarge the picture
Contents of the user manual for the ETC SmartBar 2 Dimmer W Stage
- Product category: Dimmers ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Dimmers
|
User manual for the ETC SmartBar 2 Dimmer W Stage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

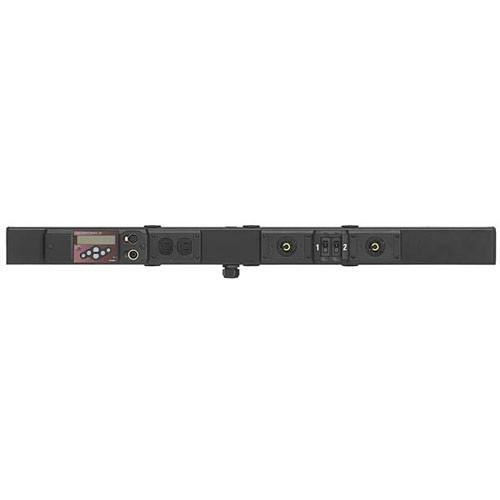

Product description The ETC SmartBar 2 Dimmer (6-Circuit) W/Stage Pin Output provides dimming for portable or permanent installations economically--you can set up your system anytime, anywhere. Just plug in and play. This SmartBar 2 has 3-phase cable in, and Stage Pin output. - Convection Cooled
- No fan required
- Fixture Mount
- Integrated fixture suspension points
- Easy Focus
- Integrated nylon bushings
- FlexiLoad
- Up to 1200 watts max per output
- Easy Reset
- Resettable breaker output protection
- RDM Enabled
- DMX512a w/RDM Remote Addressing
- "Smart" UI
- Graphic level display; quick setup menus; button shortcut for manual control; user-selectable dimmer curves; 20 chases (preprogrammed sequences)
- Manufactured of strong, thick-walled aluminum with a black baked powder-coat finish
- Supplied with 4-1/2" long, 1/2" bolts and appropriate hardware for fixture mounting
- 85-140V phase to neutral 47-63Hz mains supply
- Input power feed - 20A max per phase
- Standard w/3-phase 4-wire plus ground, 20A feed
- DMX512 In and Thru via 5Pin XLR connectors
- Supports up to 32 SmartBar 2s on one DMX line
- High contrast 2-line by 20-character backlit LCD with graphic channel level indication
- 6-button "Smart" style keypad
- 2 status LED indicators: Power and Valid DMX
- Soft patch any dimmer to any DMX channel
- Five selectable dimmer output curves--IES modified square law; linear; switched (50% threshold); fluorescent with adjustable cut-off; adjustable pre-heat
- Local manual control and 20 chase patterns for standalone operation
- Multi-language capability--English, Spanish, German, and French
- Maximum ambient temperature of 104°F (40°C)
