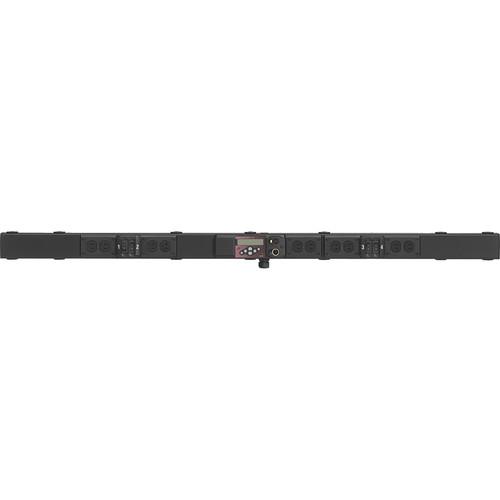

Product description The Black-finished ETC SmartBar 2 Smart Solutions SB4 Dual Edison Output 4-Circuit Dimmer is an advanced dimming solution for portable or permanent installations. Features include DMX or manual control via a 6-button Smart style keypad and 0-100% dimming. The bar measures 59.7 x 3.31 x 2.0" and is usually suspended overhead in theatrical productions, conventions, and entertainment venues. The SmartBar can handle a maximum of 1200W per channel and will support up to 32 SmartBar 2s on one DMX line. - Applications
-
- Industrial productions
- Rental productions
- Convention and conference centers
- Museums
- Casinos
- Discos
- Multi-use venues: gymnasiums, cafeterias, multi-media room
- Attributes
-
- Convection-cooled, no fans required
- Fixture mount: integrated fixture suspension points
- Easy Focus: integrated nylon bushings
- Top feed
- Up to 1200W max per output
- Easy reset: resettable breaker output protection
- RDM enabled: DMX512A with RDM remote addressing
- Smart UI:
Graphic level display
Quick setup menus
Button shortcut for manual control
User-selectable dimmer curves
20 chases (preprogrammed sequences)
- General
- 4 Circuits, 1200W per channel
- Mechanical
-
- Manufactured of strong, thick-walled aluminum with a black baked powder-coat finish
- Integrated, sleeved suspension points for fixtures and for mounting hardware
- Supplied with 4-1/2" long, 1/2" bolts and appropriate hardware for fixture mounting
- Convection-cooled - operates without cooling fans or filters
- Sealed enclosure prevents dirt and dust intrusion
- Electrical
-
- 85-140 VAC phase to neutral 47-63 Hz
- Input power top feed, 20A max per phase
- 4 Circuit: 12' (bare ends) single 12/3 SO cable for 120 VAC hot/neutral/ground feed
- 2500V Isolation between control and power components
- Total load cannot exceed capacity of main power connection (wall outlet, 15A, 20A per phase)
- 75W minimum load per dimmer
- Dual Edison outlets (1 per circuit)
- Single duplex auxiliary outlet centered on bar
- 10A magnetic supplemental circuit breaker for each output
- Thermal
-
- Maximum ambient temperature of 104°F (40°C)
- Humidity between 10 - 95% non-condensing
- Natural convection cooling
- Optimum cooling when mounted horizontally
- Control
-
- DMX512 In and Thru via 5-pin XLR connectors
- Supports up to 32 SmartBar 2s on one DMX line
- High contrast 2-line by 20-character backlit LCD with graphic channel level indication
- 6-Button Smart style keypad
- 2 Status LED indicators: Power and Valid DMX
- Soft patch any dimmer to any DMX channel
- Five selectable dimmer output curves:
IES modified square law
Linear
Switched (50% threshold)
Fluorescent with adjustable cut-off
Adjustable Pre-Heat
- Local manual control and 20 chase patterns for standalone operation
- Multi-Language capability: English, Spanish, German, and French
In the Box ETC SmartBar 2 Smart Solutions SB4 4-Circuit Dimmer (Black, Dual Edison) Mounting Hardware Single 12/3 SO cable for 120V Hot/Neutral/Ground Feed Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC SmartBar 2 Smart Solutions SB4 4-Circuit Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7543A1041-AT Specs | Material | Thick walled aluminum with black baked powder-coat finish
Integrated, sleeved suspension points for fixtures and for mounting hardware | | Ratings | 4 Dimmer version
1200 W max per channel output | | Cooling | Convection, no fan | | Safety | 2500 V isolation between control and power components
Total load main power connection (wall outlet, 15 A, 20 A per phase)
10 A magnetic supplemental circuit breaker for each output | | Connectors | Dual Edison outlets (1 per circuit)
1 x Duplex auxiliary outlet
5-Pin XLR In and Thru (DMX) | | Control | DMX512 In and Thru via 5-in XLR connectors
Supports up to 32 SmartBar 2s on one DMX line
High-contrast, 2-line by 20-character backlit LCD
6-Button Smart style keypad
2 Status LED indicators: Power and Valid DMX
Soft patch any dimmer to any DMX channel
Local manual control
20 Chase patterns for standalone operation | | Display | High-contrast, 2-line by 20-character backlit LCD with 6-button Smart style keypad | | Dimmer | 100-0% Dimming
5 Selectable dimmer output curves: IES modified square law Linear
Switched (50% threshold)
Fluorescent with adjustable cut-off
Adjustable Pre-Heat | | Voltage | 100-120 VAC (nominal) | | Operating Conditions | Temperature: 104°F (40°C) maximum
Humidity: 10 - 95% non-condensing | | Languages | English, Spanish, German and French | | Finish | Black | | Dimensions | 59.7 x 3.31 x 2.0" / 1516 x 84 x 50.8 mm | | Weight | 18 lb / 8.2 kg | | | | Package Weight | 23.4 lb | | Box Dimensions (LxWxH) | 65.0 x 8.0 x 7.0" |
