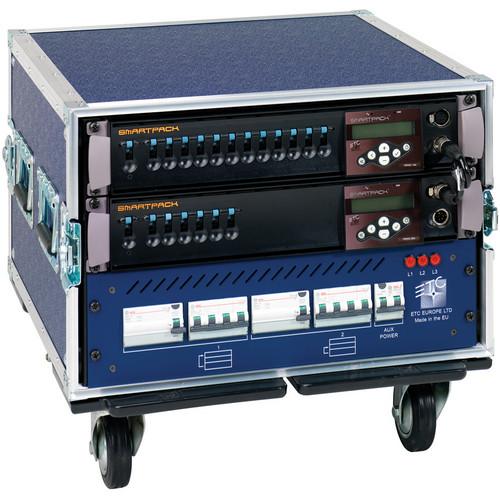

User Manual for ETC SmartPack Touring System Click to enlarge the picture
Contents of the user manual for the ETC SmartPack Touring System
- Product category: Dimmers ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Dimmers
|
User manual for the ETC SmartPack Touring System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description - Applications
-
- Small to medium sized road shows
- Corporate or Ballroom events
- Portable dimming requirements in theaters or performance spaces
- Performance
-
- Sturdy and reliable performance
- Versatile control via DMX-512
- Easy plug and play operation
- Features
-
- Small compact design built to travel
- Room for 2 or 4 SmartPacks with choice of outputs
- Industrial grade road case with casters
- Front convenience outlets
- 3/4-length rack slides for easy pack service/removal
- Cam-Lok power inputs
- Circuit breaker power distribution per pack
- User-selectable single phase/three phase
- Operation
-
- SmartLink enabled
- Variety of option panels
- Optional main circuit breaker
- Optional Cam-Lok feed-thru panel
- Dimmer
-
- Space for 2 or 4 SmartPack dimmer packs
- Packs
-
- Packs optically isolated DMX512 input and pass-thru on individual packs (self-terminating)
- Jumper cables provided to daisy-chain DMX
- Tested and pre-configured at the factory
- Menus set to English
- DMX set for addresses 1-12, 1-24 or 1-48 depending on the model of touring rack
- Output options based on rear output panels of individual packs: Edison, Stage Pin, Twist-Lock, PowerCon, or 6-Circuit Multi-Pin
- Mechanical
-
- 2-pack system is in a 12 U case
- 4-pack system is in a 16 U case
- ABS laminated 3/8" ply with aluminum-extruded edging and tongue-and-groove mating surfaces for lid Removable front and back lids
- Zinc plated hardware including ball corners
- Butterfly twist latches
- Spring loaded deep recessed handles
- 360° Swivel 3.5" casters, two braking and two non-braking, 250 lb-rated
- Equipment mounted to pre-drilled/threaded rack rail, with #10-32 hardened Phillips rack screws
- 3/4 - length rack slides from easy pack service/removal
- Power Distribution
-
- Cam-Lok E1016 series input panel
- Distribution Voltage Range from 85 - 140VAC, 47 - 63 Hz
- Three phase power indicators with test points
- Circuit breaker per pack, rated at 60 amps allowing for 100% full load operation in single phase
- All SmartPacks plug into power distro module via a flexible pigtail with connector - packs are interchangeable within the system
- Power connector per pack has locking tabs to prevent them from coming out during transit
- Options
-
- Option panels (Sensor Touring Rack style)
- Optional 125A Main Circuit Breaker for 2-pack system, 250A MCB for 4-Pack system
- Optional Cam-Lok feed-thru panel
- Thermal
- Front-to-back cooling in packs for better airflow in a stacked application
In the Box ETC SmartPack Touring System 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC SmartPack Touring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 2XSL620 Specs | Number of SmartPacks | 2 or 4 | | Input Panel Type | Cam-Lok E1016 Series | | Output Connectors | x | | Outlets | 2x Edison duplex outlets with a 20A fully rated magnetic circuit breaker | | Voltage Range | 85 - 140VAC, 47 - 63 Hz | | Circuit Breaker | Yes, 60A, single phase | | Case | 12 U (2-pack) or 16U (4-pack) | | DMX Interface | Yes, 1-12, 1-24, 1-48 addresses | | Output Connector | x | | Handles | x | | Closure | x | | Material | x | | Casters | Yes, 3.5" (9.0 cm), 360° swivel, 250 lb (113.4 kg) rated | | Operating Conditions | Temperature: 32 - 95°F (0 - 35°C)
Humidity: 30 - 95% (non-condensing) | | Dimensions | 28 x 22 x 32" (710 x 562 x 817 mm) or 35 x 22 x 32.2 (886 x 562 x 32.2 mm) | | Weight | 2 - Pack 200 lbs (73 kg), 4 Pack 275 lb (125 kg) |
