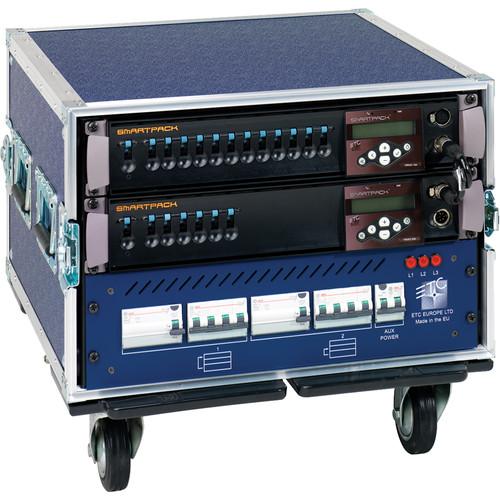

Product description Designed for corporate, theater, road show and performance spaces, the Smartpack Touring System with 6-Circuit Multi-Pin from ETC is a 24-channel, 10A system with two SmartPack dimmers. The system features DMX control, Cam-Lock E1016 series power inputs, and a 50A circuit breaker per pack. The system meets ATA 200 standards and is meant to be shipped. The enclosure is constructed of ABS laminated 3/8" plywood with aluminum-extruded edging and tongue-and-groove mating surfaces for the lid. Both front and back lids are removable. The hardware, including the ball corners, are zinc-plated. The lid is locked down by butterfly twist latches and the system has spring-loaded deep recessed handles for carrying. Movement is facilitated by 3.5" casters that are rated for a 250 lb load. - Applications
-
- Small to medium-sized road shows
- Corporate or ballroom events
- Portable dimming requirements in theaters or performance spaces
- Performance
-
- Safe and reliable operation
- Versatile control via DMX-512
- Easy plug-and-play operation
- Mechanical Features
-
- Small, compact design built to travel
- Room for 2 SmartPacks
- Cam-Lock E1016 series power inputs
- 50A circuit breaker per pack
- Optional 100A or 225A main breaker
- Optional Cam-lock Feed-Thru panel
- Front and rear convenience outlets
- Industrial grade road case with 360° swivel casters
In the Box ETC Smartpack Touring System with 6-Circuit Multi-Pin (24 x 10A) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Smartpack Touring System with 6-Circuit Multi-Pin in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC SmartPack Specs | Interior Device Capacity | Space for two or four SmartPack dimmer packs Optically Isolated DMX512 input and pass-thru on individual packs
6-Circuit multi-pin rear output | | Power Distribution | Cam-Lock E1016 series input
3-Phase power indicators with test points
1 x 50 A 3-pole circuit breaker per pack
Optional Cam-Lock Feed-Thru panel
Voltage range from 85-140 VAC, 47/63 Hz
Front and rear convenience outlet panels
2x Edison duplex outlets with a 20 A fully rated magnetic circuit breaker | | Thermal | Ambient operation temperature between 32°F / 0°C and 95°F / 35°C
Humidity between 30-95% (non-condensing)
Front-to-back cooling in packs for better airflow in a stacked application | | Material of Construction | ABS-laminated 3/8" / 9.5 mm ply with aluminum-extruded edging and tongue-and-groove mating surfaces for lid
Removable front and back lids
Zinc plated hardware including ball corners
Butterfly twist latches
Spring-loaded deep recessed handles
360° Swivel 3.5" (89 mm) casters, two braking and two non-braking
250 lb (113.5 kg)-rated casters
Equipment mounted to pre-drilled/threaded rack rail, with #10-32 hardened Phillips rack screws | | Listings | UL508A listed, meets ATA 200 standards | | Dimensions | 23 x 22 x 32.6" / 58.4 x 56 x 82.8 cm | | Weight | 160 lb / 72.5 kg |
