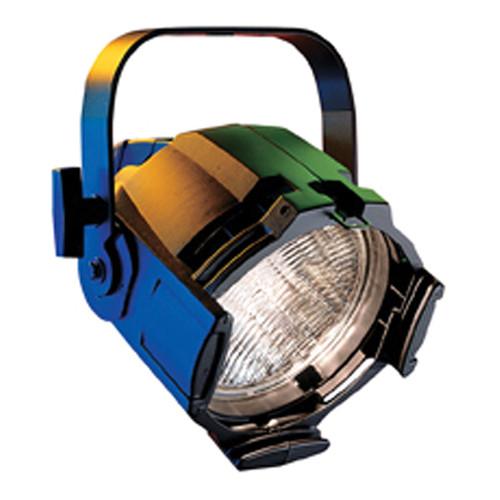

User Manual for ETC Source Four 575 Watt PAR with Cold Mirror Reflector, Twist-Lock- White Click to enlarge the picture
Contents of the user manual for the ETC Source Four 575 Watt PAR
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four 575 Watt PAR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Source Four 575 Watt PAR with Cold Mirror Reflector, Twist-Lock -White (115-240V AC) from ETC offers power, elegance and efficiency with a rugged die-cast aluminum construction and acclaimed Source Four optical technology. The unique reflector coating ensures that only light, instead of heat, goes out of the front of the fixture, making the Source Four PAR MCM ideal for orchestra lighting or other performance situations where on-stage comfort is paramount.The Source Four PARs deliver a smooth even field, and at 575 watts are comparable to 1000 watt PAR64s -- while saving 40% on energy. This fixture is available in Black, or White finishes, with a variety of connectors: Edison, Stage Pin, and Pigtail.When fitted with a 575 watt HPL bulb (available separately), this fixture will provide 128 footcandles, 15.7 ft. in diameter, from a distance of 50 ft, with a Very Narrow Spot Lens installed.
With a Medium Flood Lens, it will throw an oblong beam of 83 footcandles, 13.6-19.2 ft. in diameter from 35 ft.
With the Wide Flood Lens, it will provide a 45 footcandle oblong beam, 17.1-26.1 ft. in diameter, from 30 ft. - Compact, Efficient Fixture
- Combined with reductions in power and cable requirements, Source Four PARs are perfect for touring.
- Subtle Appearance
- The white finish of the fixture and accessories calls less attention to itself when used in architectural applications.
- Several Fixtures in One
- Easily installed, snap-in interchangeable lenses: Very Narrow Spot, Narrow Spot, Medium Flood, Wide Flood (VNSP, NSP, MFL, WFL) are included.
An optional extra-wide flood lens is available for short-throw applications. - Versatile
- Gel frame holders with 2 accessory slots.
- Supports ETC Dimmer Doubling Technology
- The patented, optional Dimmer Doubler allows two lighting fixtures to operate independently using only one dimmer (in North America).
- Safe
- UL and cUL listed, sealed reflector housing
In the Box ETC Source Four 575 Watt PAR with Cold Mirror Reflector, Twist-Lock- White (115-240V AC) Lenses for Source Four PAR - Set of 4 uxeudbcrxerzycvefeucvwtbwwyextfeqrdvs Color Frame for 5 Degree Source 4 Par - White Yoke 3' AC Cable, Twist-Lock 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four 575 Watt PAR with Cold Mirror Reflector, Twist-Lock- White in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PAR MCM Specs | Rating | 375, 575 Watts | | Socket (Lampholder) | G9.5, heat-sink ceramic 2-pin | | Lens (Condenser) | 4 Lenses included: VNSP, NSP, MFL, WFL
Extra Wide Flood optional | | Reflector (Mirror) | MCM (Metal Cold Mirror) | | Mounting | Hole in Yoke for C- Clamp or Floor Mount | | Yoke | Steel, with 2 mounting positions, positive locking clutch | | Cable | 3' Fiberglass, Twist-Lock | | Focusing | With lenses | | Weight | 7.5 lb (3.4 kg) | | Dimensions | 10.75 x 15.9 x 10.25" (27 x 40.4 x 26 cm) with optional C Clamp | | | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 11.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
