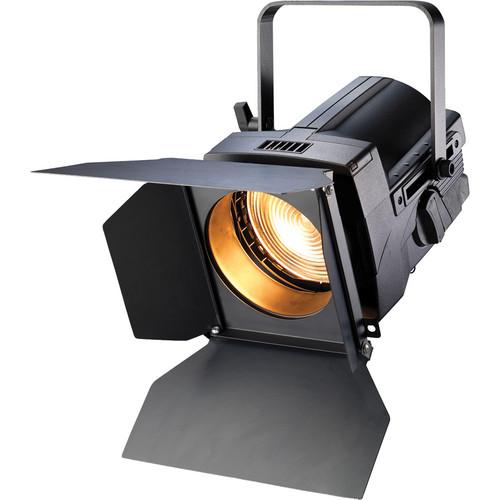

User Manual for ETC Source Four 7" Fresnel Click to enlarge the picture
Contents of the user manual for the ETC Source Four 7" Fresnel
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four 7" Fresnel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Source Four 7" Fresnel by ETC combines the classic Fresnel design with efficient HPL lamp technology and advanced reflector design to offer a 750W luminaire with a lumens rating equal to other 1000W fixtures.
The 7" Fresnel renders a very even beam output with a 20 - 65° spot-to-flood range. The black aluminum housing is supported by a sliding yoke mount for variable balance points when hanging, while its HPL Quick eXchange socket allows for easy lamp changes (lamps sold separately). The fixture supports ETC's Dimmer Doubling technology, which allows you to double the number of fixtures in your system without adding dimmer modules or running additional cable. The 7" Fresnel has three-conductor 36" leads in a glass fiber outer sleeve. No plug is included. - Construction
-
- Rugged die-cast aluminum construction
- Convenient full-sized zoom adjustment knob
- Unique HPL Quick eXchange socket enables easy lamp changes
- Sliding yoke mount for variable balance point
- Fully enclosed accessory slots for no light leak
- UL and cUL listed
- Optical
-
- 7" lens
- True Fresnel optical system for good barndoor beam-shaping performance
- Glass reflector with dichroic coating optimized for HPL performance
- Electrical
-
- 115-240 VAC, 50/60 Hz
- High-temperature, three-conductor 36" leads in a glass fiber outer sleeve
- Lamp (Sold Separately)
-
- HPL compact tungsten filament contained in a krypton/xenon-filled quartz envelope
- 750W maximum
- Uses same lamp as all Source Four fixtures for common inventory
- Patented filament geometry makes for extremely efficient light collection and transmission
- Integral die-cast aluminum heat sink lamp base
- Dimmer Doubling Technology
- ETC's Dimmer Doubling technology allows you to double the number of fixtures in your system without adding dimmer modules or running additional cable. The key to this is the Dimmer Doubler, which is installed between a Sensor dimmer module and two ETC Source Four 77 volt fixtures. It splits the output of a single dimmer into two separately-controlled outputs. You can then use an ETC control console to independently control the output of the two fixtures.
- Photometrics
- Spot 20° 115V
Beam angle: 9°
Field angle: 20°
Candela: 124,300
Field lumens: 3990
Beam lumens: 1930
Lumens per watt: 5.3
1,243 fc/13,380 lux @ 10' with field diameter of 3.5'
552 fc/5,946 lux @ 15' with field diameter of 5.2'
311 fc/3,345 lux @ 20' with field diameter of 6.9'
199 fc/2,141 lux @ 25' with field diameter of 8.6'
Medium Flood 40° 115V
Beam angle: 21°
Field angle: 40°
Candela: 51,500
Field lumens: 7390
Beam lumens: 3580
Lumens per watt: 9.9
515 fc/5,543 lux @ 10' with field diameter of 7.2'
229 fc/2,464 lux @ 15' with field diameter of 10.7'
129 fc/1,386 lux @ 20' with field diameter of 14.3'
82 fc/887 lux @ 25' with field diameter of 17.9'
Flood 47° 115V
Beam angle: 52°
Field angle: 65°
Candela: 17,600
Field lumens: 10,690
Beam lumens: 7,590
Lumens per watt: 14.3
176 fc/1,894 lux @ 10' with field diameter of 12.6'
78 fc/842 lux @ 15' with field diameter of 18.9'
44 fc/474 lux @ 20' with field diameter of 25.2'
28 fc/303 lux @ 25' with field diameter of 31.5' In the Box ETC Source Four 7" Fresnel (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four 7" Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Fresnel Specs | Maximum Wattage | 750 W | | Socket (Lampholder) | G9.5 heat sink | | Lens (Condenser) | 7.0" Fresnel | | Reflector | Glass reflector with dichroic coating | | Mount | Yoke tapped for ceiling or stand mounting | | Focusing | 20 - 65° spot to flood adjustment | | Yoke | Sliding mount for variable balance point | | Cable | 3-Conductor 36" / 91.4 cm leads in glass fiber outer sleeve (no plug) | | Power Requirements | 100-240 VAC, 50/60 Hz | | Weight | 13.3 lb / 6.1 kg | | | | Package Weight | 15.6 lb | | Box Dimensions (LxWxH) | 15.0 x 13.0 x 13.0" |
