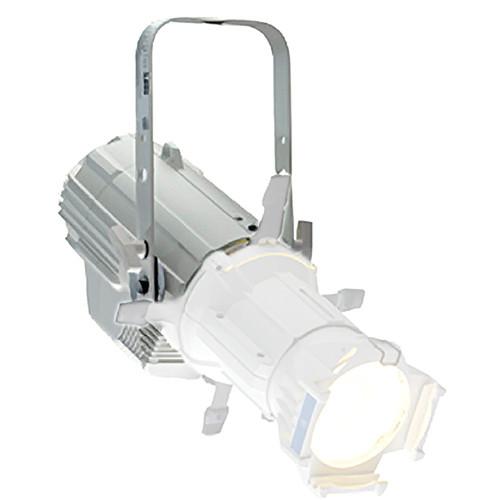

User Manual for ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel Click to enlarge the picture
Contents of the user manual for the ETC Source Four Daylight LED Light
- Product category: LED Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC LED Lights
|
User manual for the ETC Source Four Daylight LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Source Four LED line is the result of the marriage of the Source Four and Desire product lines yielding the control of a Source Four with color control of the Desire fixture. This white, 100-240 VAC ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel is comprised of the light engine only. It is intended for those who want to retrofit an existing fixture. There is no shutter barrel on the engine. It is compatible with zoom lens barrels only and requires one for use. Among the many benefits of the light engine are multiple control options via DMX, superior color rendition, multi-voltage operation, and long (50,000 hours) lamp life. - 60 Luxeon Rebel LED emitters
- Multiple dimming curve options
- Preset colors and sequences for standalone (no console required) operation
- White point selection: white light and color behavior based on a specific color temperature white light, i.e. 3200K, 5600K, etc
- Loss of data behavior options: instant off, hold last look for two minutes, etc
- Output modes: three output options that offer the user a choice between maximum output and maximum consistency
- DMX512 in/thru via five-pin XLR connectors
- Up to nine fixtures can be linked via power in/thru connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermally insulated rear handle, knobs, and shutter handles make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters.
- Tool-free lamp centering and peak/flat adjustment knobs are built in
- Functions with 110-240 AC voltage
- User-friendly control interface with multiple modes and fixture settings
- Positive locking double-clutch fixture body
- Neutrik power in and thru connections
- Active electronic thermal management for droop-free operation
- Quiet fan cooling. Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
- Uses Source Four 15-30° and 25-50° Zoom tubes only
In the Box ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel (White, 100-240 VAC) 400CC C Clamp for Source 4 Ellipsoidal Spotlights Limited 1-Year Warranty User Manual PDF 991.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Daylight LED Light Engine without Lens Tube or Shutter Barrel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Daylight Specs | | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 71
CQS 70 | | Cooling System | None | | Display | None | | Housing Material | Metal | | Number of LEDs | 60 | | Expected Lamp Life | 50,000 Hours | | Fixture Weight | 14.3 lb / 6.5 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | | | IP Rating | IP20 | | Operating Temperature | -4 to 104°F / -20 to 40°C | | | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 13.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
