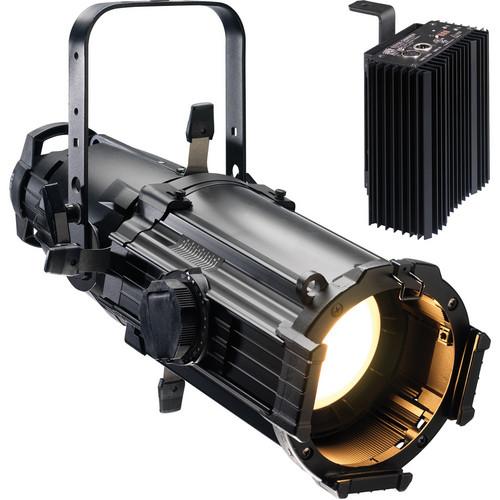

User Manual for ETC Source Four Ellipsoidal Lighting Fixture with Dimmer Click to enlarge the picture
Contents of the user manual for the ETC Source Four Ellipsoidal Lighting Fixture
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four Ellipsoidal Lighting Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The ETC Source Four Ellipsoidal Lighting Fixture with Dimmer (25-50˚ Zoom, White) features a rugged die-cast and extruded aluminum construction. With the patented one-handed zoom operation, adjustments are quick, simple and safe. Technicians can focus with one hand and hold the ladder with the other. And the lens-tube door provides quick and easy access when you want to clean the lens assembly, tool-free. The patented dichroic mirror allows shutters and accessories to stay cool, and drop-in accessories are interchangeable with fixed-focus fixtures. Rated up to 750W, Source Four Zoom gives you crisp optics for excellent imaging and field quality. Using the electronic Silent (eS) technology and a convection-cooled design, the attached high-performance dimmer can be placed in acoustically sensitive venues. By taking DMX control signals directly, this self dimming tungsten fixture can now reside alongside LEDs and moving lights, allowing system designs to focus on switched power and data distribution instead of centralized dimming systems. Zoom Fixture - Rugged die-cast and extruded aluminum construction
- Patented one-handed focus mechanism with positive lock
- Rotating shutter assembly ±25˚
- 20-gauge stainless steel shutters in a tri-plane assembly
- Lens tube door provides easy access for lens cleaning
- Scale markings for field angle and focus settings
- Thermally insulated rear handle
- High impact, thermally insulated knobs and shutter handles
- Integral die cast color frame holder with two accessory slots, and a top mounted, color frame retainer
- Steel yoke with two mounting positions
- Positive locking double-clutch yoke
- Slot for glass or stainless steel patterns
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- High temperature 3-conductor 36" leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Re-optimized optical system for improved photometric performance and field uniformity
- Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
- Reflector secured with anti-vibration shock mounts
- Lenses (sold separately) have anti-reflective coatings
- Lenses secured with anti-vibration shock mounts
- Low gate and beam temperature, shutters will not warp or distort
- Tool free, positive locking X, Y, and Z lamp centering adjustments, unaffected by relamping
Dimmer - Designed for use with all tungsten Source Four family fixtures
- Electronic Silent technology for operation free of dimmer- and lamp-filament noise
- Changes your Source Four into a truly distributed fixture with onboard dimming and control
- Electronic Dimming with harmonic and noise suppression
- Acoustic specification replaces dimmer rise time
- Manufactured of epoxy-painted aluminum body and anodized aluminum heat sink
- Multiple yoke-fixing hole combinations for flexible mounting to the fixture
- Convection-cooled; operates without cooling fans
- DMX512A/RDM In and Thru via 5-Pin XLR connectors
- Bare-end power cable input
- Lamp burner directly connected to output cable
- 2,500V isolation between control and power components
- Electronic overcurrent protection
- Supports up to 32 units on one DMX line
- Three-Button Local Control: Focus/test, up and down
- Single button DIM to full for focus
- Up/down buttons for setting DMX address or for local intensity control
- One Status Indicator: Multicolor LED for power, error, and valid DMX
- Three Selectable Dimmer Output Curves: IES modified square law, linear, switched (50% threshold)
- Produces no lamp noise (exceeds all rise time specs) as electronics sound-pressure level less than 0 dBa at 3.2' (1m)
- ANSI E1.20 RDM and ANSI E1.11 DMX512A
- RDM: Discover (flashes light output); find and set DMX address; change curve; receive overcurrent/undercurrent warnings; receive over temperature warning
- Yoke mount, universal mounting bracket included for direct mounting on a fixture yoke in multiple orientations to accommodate maximum flexibility
- Up and down level control, returns to previous level after power loss
- No electrical assembly required
- Applications: Theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, multi-use venues such as schools and meeting rooms, and any application requiring distributed dimming and position flexibility
In the Box ETC Source Four Ellipsoidal Lighting Fixture with Dimmer (25-50 Zoom, White) Color Frame C-Clamp 36.0" (91.4cm) Leads Yoke Mount Universal Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Ellipsoidal Lighting Fixture with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Zoom Specs | Zoom | 25 to 50˚ | | Lamp | 750 W maximum | | Rotation | ±25˚ shutter assembly | | Construction | 20-gauge stainless steel | | Voltage | 115 to 240 V, 50/60 Hz | | Luminance | Degree: 25˚, Candela: 150,745, Field Lumens: 15,035, Beam Lumens: 11,165, Efficiency: 68.7%, Lumens per Watt: 20.0
Illuminance: 7,212 lux (670 fc) at Throw Distance: 15.0' (4.6 m),Field diameter: 7.3' (2.2 m)
Illuminance: 1,803 lux (167 fc) at Throw Distance: 30.0' (9.1 m), Field diameter: 14.6' (4.5 m)
Illuminance: 801 lux (74 fc) at Throw Distance: 45.0' (13.7 m), Field diameter: 21.9' (6.7 m)
Illuminance: 536 lux (50 fc) at Throw Distance: 55.0' (16.8 m), Field diameter: 26.8' (8.2 m)
Degree: 50˚, Candela: 63,480, Field Lumens: 14,780, Beam Lumens: 8,600, Efficiency: 67.5%, Lumens per Watt: 19.7
Illuminance: 6,833 lux (635 fc) at Throw Distance: 10.0' (3.0 m),Field diameter: 8.4' (2.6 m)
Illuminance: 1708 lux (159 fc) at Throw Distance: 20.0' (6.1 m), Field diameter: 16.9' (5.2 m)
Illuminance: 759 lux (71 fc) at Throw Distance: 30' (9.1 m), Field diameter: 25.3' (7.7 m)
Illuminance: 558 lux (52 fc) at Throw Distance: 35' (10.1 m), Field diameter: 29.6' (9.0 m) Photometric data is measured with an HPL 750W/115V 300 hour lamp | | Dimensions (L x W x H) | 23.9 x 13.3 x 21.3" (607.0 x 337.8 x 541.0 mm) | | Weight | 17.0 lb (7.6 kg) | | Sizing | 20 A Breaker | | Voltage Range | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Regulated Output Voltage | Supports 208 V input to 115 V output | | Isolation | 2,500 V between control and power components | | Max Output | 750 W | | Ambient Temperature | 104°F (40°C) | | Humidity | 10 to 95%, non-condensing | | Heat Dissipation | 171 BTU at full load | | Dimensions (WxHxL) | 3.57 x 6.50 x 7.35" (90.68 x 165.10 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 30.0 x 16.4 x 12.75" |
