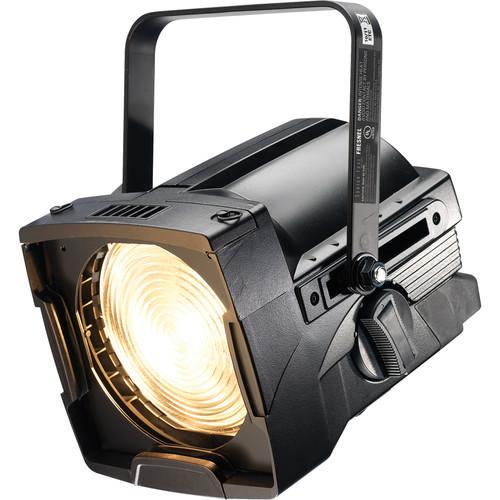

Product description The white, twist lock Source Four Fresnel from ETC combines traditional Fresnel optics with a unique reflector design and HPL lamp technology to provide the equivalent output of a 1,000W fixture using a 750W lamp. Made of rugged die-cast aluminum, the light features a unique Quick eXchange system that allows relamping from underneath, most times without having to change focus. The 9-52° beam angle provides excellent spot to flood coverage and is easily adjustable, while the 100-240 VAC, 50/60Hz power supply ensures worldwide use. Please note a lamp is required for use and is available separately. - Physical
-
- Rugged die-cast aluminum construction
- Convenient full-size zoom adjustment knob
- Unique HPL Quick eXchange socket enables easy lamp changes
- Sliding yoke mount for variable balance point
- Fully enclosed accessory slots for no light leak
- UL and cUL listed
- Electrical
-
- 100-240 VAC, 50/60Hz
- High-temperature, three-conductor 36" leads in a glass-fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Optical
-
- 7" (175 mm) aperture
- Zoom range: 9-52° beam angle, 20-65° field angle
- True Fresnel optical system for good barn door beam-shaping performance
- Glass reflector with dichroic coating optimized for HPL performance
- Lamp
-
- HPL – compact tungsten filament contained in a krypton/xenon-filled quartz glass envelope
- Uses same lamp as all Source Four fixtures for common inventory
- 750W maximum
- Patented filament geometry makes for extremely efficient light collection and transmission
- Integral die-cast aluminum heat sink lamp base
In the Box ETC Source Four Fresnel (White, Twist Lock) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Fresnel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Fresnel Specs | Rating | 750 W Max | | Socket (Lampholder) | HPL Quick eXchange socket | | Lens (Condenser) | 7" (175 mm) Fresnel | | Beam and Field Angle | Beam Angle: 9-52°
Field Angle: 20-65° | | Reflector (Mirror) | Glass reflector with dichroic coating | | Photometrics | At 65°
Candela: 17,600 | Field Lumens: 10,690 | Beam Lumens: 7,590 | Lumens per Watt: 14.3
At Throw Distance of 20' (6.1 m): 44 fc / 474 lux with a beam diameter of 25.2' (7.7 m)
At 40°
Candela: 51,500 | Field Lumens: 7,390 | Beam Lumens: 3,580 | Lumens per Watt: 9.9
At Throw Distance of 20' (6.1 m): 129 fc / 1,386 lux with a beam diameter of 14.3' (4.4 m)
At 20°
Candela: 124,300 | Field Lumens: 3,990 | Beam Lumens: 1,930 | Lumens per Watt: 5.3
At Throw Distance of 20' (6.1 m): 311 fc / 3,335 lux with a beam diameter of 6.9' (2.1 m)
Measured with an HPL 750 W / 115 V 300-hour amp | | Mounting | Yoke | | Cable | High temperature three-conductor 36" leads in a glass fiber outer sleeve | | Plug | Twist Lock | | Voltage | 100-240 VAC, 50/60 Hz | | Approvals and Compliance | UL and cUL | | Dimensions | Including Yoke: 12.4 x 10.9 x 13.5" (315.0 x 277.0 x 342.0 mm) | | Weight | 13.3 lb (6.1 kg) |
