User Manual for ETC Source Four Fresnel Zoom to Focus Fixture Click to enlarge the picture
Contents of the user manual for the ETC Source Four Fresnel Zoom to
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four Fresnel Zoom to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

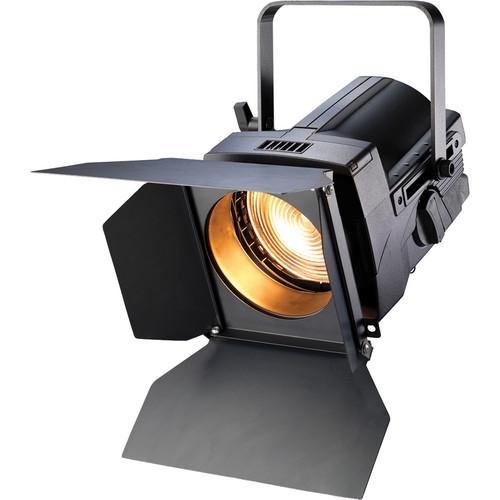

Product description The black Source Four Fresnel Zoom to Focus Fixture from ETC brings you the soft-focus lighting and sparkle you love with Source Four quality and efficiency. A combination of the Source Four HPL lamp technology and the traditional Fresnel optics enables you to use the lamp inventory of this fixture with a single source, the HPL.
With the Source Four Fresnel Fixture, you can choose the lamp wattage that best suits your particular application and energy requirements, from 375 to 750W lamps. When you need to relamp a Source Four Fresnel Fixture, ETC’s smart design makes your work easy. The socket and access door let you change out the lamp from underneath the fixture without having to break focus saving on work, time, and trouble. The fixture-housing is engineered to eliminate light leaks and minimize spillage. The innovative mechanical design of this fixture has simplified focusing for you. Whatever physically awkward spot you’re working in, the fixture can be easily adjusted from spot to flood, with a full-sized zoom knob you can get a real grip on.
Spot-to-flood focus is accomplished by large, easy-to-use knob for quick adjustments in inconvenient positions. The Quick eXchange socket design permits re-lamping from underneath the fixture without breaking focus in most situations. - Physical
- Rugged die-cast aluminum construction
Convenient full-size zoom adjustment knob
HPL Quick eXchange socket enables easy lamp changes
Sliding yoke mount for variable balance point
Fully enclosed accessory slots for no light leak
UL and cUL listed - Electrical
- High temperature 3-conductor 36" leads in a glass fiber outer sleeve
Supports ETC Dimmer Doubling technology - Optical
- True fresnel optical system for good barn door beam shaping performance
Glass reflector with dichroic coating optimized for HPL performance - Lamp
- HPL lamp with compact tungsten filament contained in a krypton/xenon-filled quartz glass envelope
Patented filament geometry makes for efficient light collection and transmission
Integral die-cast aluminum heat sink lamp base In the Box ETC Source Four Fresnel Zoom to Focus Fixture (Black) 2-Pin & Ground, 20A Connector 7.5" Color Frame Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Fresnel Zoom to Focus Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Fresnel Specs | Aperture | 7" (175 mm) | | Zoom Range | 9 to 52° beam angle
20 to 65° field angle | | Illuminance | At a Throw Distance of 10' (3 m) with Field Diameter 3.5' (1.1 m): 13,380 lux (1,243 footcandles)
At a Throw Distance of 15.0' (4.6 m) with Field Diameter 5.2' (1.6 m): 5,946 lux (552 footcandles)
At a Throw Distance of 20.0' (6.1 m) with Field Diameter 6.9' (2.1 m): 3,345 lux (311 footcandles)
At a Throw Distance of 25.0' (7.6 m) with Field Diameter 8.6' (2.6 m): 2,141 lux (199 footcandles) | | Lamp | 750 W maximum | | Power | 100 to 240 V, 50/60 Hz | | Connector | 2-pin and ground, 20A connector | | Weight | 13.3 lb (6.1 kg) | | | | Box Dimensions (LxWxH) | 17.0 x 16.0 x 13.0" |
