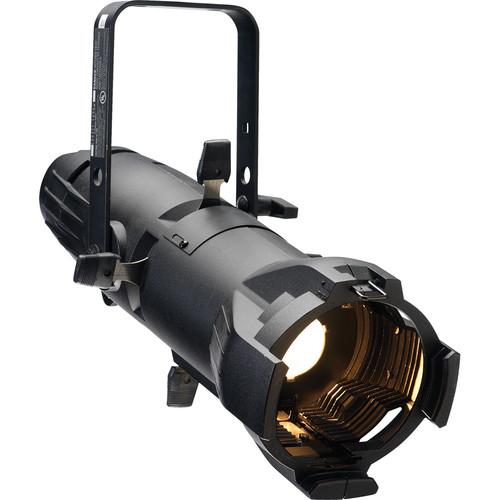

User Manual for ETC Source Four Junior 575 Watt Ellipsoidal Spotlight - 50 Degree Click to enlarge the picture
Contents of the user manual for the ETC Source Four Junior 575 Watt
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four Junior 575 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The white ETC Source Four Junior 575 Watt 50 Degree Ellipsoidal Spotlight with three-prong Edison plug combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. Source Four technology provides a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. This wide-throw Source Four Jr is perfect for - but never limited to - smaller theater venues, schools, industrials, and any other application where affordability, space-savings and high performance are the criteria.
When fitted with a 575W HPL bulb (available separately), this fixture will provide a beam of 220 foot candles 9.3' in diameter, from a distance of 10'. It will throw 55 foot candles 18.6' in diameter, from a distance of 20'.
This model includes a three-prong Edison power plug. Other models are available, with pigtail, stage pin, and twist-lock connectors. The Source Four Junior is also available with a 26 or a 50° lens tube. - Cool-Running
- Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
- Solid Construction
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
- Efficient Use of Energy
- The special HPL bulb and borosilicate reflector provide more lumens per watt: at 575 watts the Source Four literally outshines other brands' 1000W ellipsoidals.
- Versatile
- The steel yoke has two mounting position choices.
Fixture has two accessory slots and a top-mounted gel frame retainer.
Other focusing tubes are available.
An optional iris is available. - Gobo Patterns Available
- Accepts Size "M" steel gobos for projection of a vast multitude of patterns or company logos.
- Easy Calibration
- Tool-free lamp centering and peak/flat adjustment knobs are built in.
For detailed instructions, Click Here. - Multi-Voltage
- Functions with 115-240 VAC, with the appropriate optional bulb and power plug.
UL and cUL listed. - Supports ETC Dimmer Doubling Technology
- The patented, optional Dimmer Doubler allows two lighting fixtures to operate independently using only one dimmer.
In the Box ETC Source Four Junior 575 Watt Ellipsoidal Spotlight - 50 Degree (White, 115-240 VAC) Integral Shutter Blades, 50° Lens Tube Yoke and C-Clamp 3' Power Cord with Fiberglass Sheath, Edison Plug Color Frame for Source 4 Black Ellipsoidals Limited 2-Year Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Junior 575 Watt Ellipsoidal Spotlight - 50 Degree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Jr Specs | Rating | 575 W max | | Socket (Lampholder) | G9, heat sink bi-pin | | Lens (Condenser) | 50° | | Reflector (Mirror) | Faceted borosilicate aluminum, multi-layer dichroic coating | | Mounting | M12 hole with C-clamp, safety cable optional | | Yoke | Twin flat blade steel fork, two mounting positions | | Cable | 3' (91.4 cm), fiberglass sheath, Edison plug | | Focusing | 50° tube with high-contrast aspheric lens, stainless steel shutters | | Dimensions | 19.2 x 17.5 x 9.6" (49 x 44.5 x 24 cm) with C-clamp | | Weight | 10 lb (4.5 kg) with C-clamp |
