User Manual for ETC Source Four Junior 575 Watt Ellipsoidal Spotlight, Black, 15 Amp Twist Lock - 36 Degrees Click to enlarge the picture
Contents of the user manual for the ETC Source Four Junior 575 Watt
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four Junior 575 Watt contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

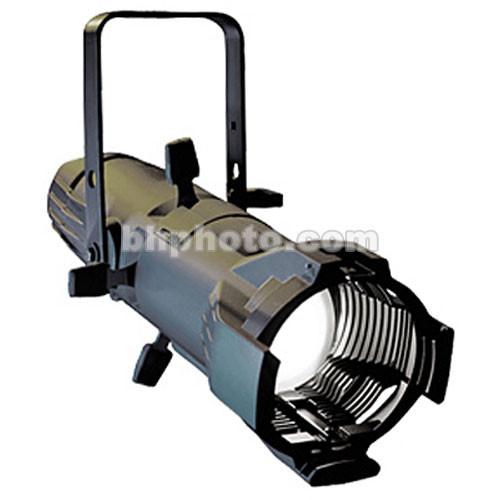

Product description The 36° Source Four Junior 575 Watt Black Ellipsoidal Spotlight with 15 Amp Twist Lock combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. Source Four technology provides a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The Source Four Jr is perfect for - but never limited to - smaller theatre venues, churches, schools, industrials, and any other application where affordability, space-savings and high performance are the criteria. When fitted with a 575 watt HPL bulb (available separately), this fixture will provide a beam of
169 footcandles 10 ft (3.3 m) in diameter, from a distance of 15 ft (4.5 m).
It will throw 42 footcandles 20.1 ft (6.1 m) in diameter, from a distance of 30 ft (9 m). This model includes a 15 Amp Twist Lock connector. Other models are available, with Edison, Pigtail, and Stage Pin connectors. The Source Four Junior is also available with a 26, or a 50° lens tube. - Cool-Running
- Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
- Solid Construction
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
- Efficient Use of Energy
- The special HPL bulb and borosilicate reflector provide more lumens per watt: at 575 watts the Source Four literally outshines other brands' 1000W ellipsoidals.
- Versatile
- The steel yoke has 2 mounting position choices.
Fixture has 2 accessory slots, and a top-mounted gel frame retainer.
Other focusing tubes are available.
An optional iris is available. - Gobo Patterns Available
- Accepts Size "M" steel gobos for projection of a vast multitude of patterns or company logos.
- Easy Calibration
- Tool-free lamp centering and peak/flat adjustment knobs are built in.
For detailed instructions, Click Here.vweybswv - Multi-Voltage
- Functions with 115-240 AC Voltage, with the appropriate optional bulb and power plug.
UL and cUL Listed. - Supports ETC Dimmer Doubling Technology
- The patented, optional Dimmer Doubler allows two lighting fixtures to operate independently using only one dimmer (in North America only).
In the Box ETC Source Four Junior 575 Watt Ellipsoidal Spotlight, Black, 15 Amp Twist Lock - 36 Degrees (115-240V AC) Integral Shutter Blades, 36° Lens Tube Yoke and C Clamp 3' Power Cord with Fiberglass Sheath, 15A Twist Lock Color Frame for Source 4 Black Ellipsoidals 2 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Junior 575 Watt Ellipsoidal Spotlight, Black, 15 Amp Twist Lock - 36 Degrees in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Jr Specs | Rating | 375, 575 Watts | | Socket (Lampholder) | G9, Heat Sink bi-pin | | Lens (Condenser) | 36° | | Reflector (Mirror) | Faceted borosilicate aluminum, multi-layer dichroic coating | | Mounting | M12 hole with C-clamp, safety cable optional | | Yoke | Twin flat blade steel fork, 2 mounting positions | | Cable | 3', fiberglass sheath, 15A Twist Lock | | Focusing | 36° Tube with high contrast aspheric Lens, Stainless steel shutters | | Weight | 12.3 lb (5.6 kg) with C-Clamp | | Dimensions | 19.2 x 17.5 x 9.6" (49 x 44.5 x 24 cm) with C-Clamp | | | | Package Weight | 15.55 lb | | Box Dimensions (LxWxH) | 16.4 x 10.6 x 10.4" |
