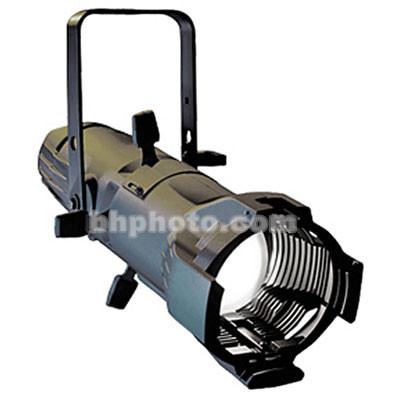

Product description The 25-50° Source Four Junior Zoom 575W Black Ellipsoidal Spotlight with 15A Twist Lock plug combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. Source Four technology provides a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The Source Four Jr Zoom is best for use on the small stage or in clubs, retail events and industrials. It boasts rugged ETC fixture construction and all the precision optics of a Source Four. When fitted with a 575W HPL bulb (available separately), this fixture will provide a beam of 88 footcandles 13.2' (4.2 m) in diameter, from a distance of 30' (9 m) @ 25° zoom. It will throw 63 footcandles 17.8' (5.4 m) in diameter, from a distance of 20' (6 m) @ 50° zoom. This model includes a 15A Twist-Lock connector. Other models are available, with Pigtail, 3 prong Edison Power Plug, and Stage Pin connectors. - Cool-Running
- Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
- Solid Construction
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
- Efficient Use of Energy
- The special HPL bulb and borosilicate reflector provide more lumens per watt: at 575W the Source Four literally outshines other brands' 1000W ellipsoidals.
- Versatile
- The steel yoke has 2 mounting position choices.
Fixture has 2 accessory slots, and a top-mounted gel frame retainer.
Other focusing tubes are available.
An optional iris is available. - Gobo Patterns Available
- Accepts Size "M" steel gobos for projection of a vast multitude of patterns or company logos.
- Easy Calibration
- Tool-free lamp centering and peak/flat adjustment knobs are built in.
For detailed instructions, Click Here.rxstyfzbwsvavyvyfwdyrfcvu - Multi-Voltage
- Functions with 115-240 AC Voltage, with the appropriate optional bulb and power plug.
UL and cUL Listed. - Supports ETC Dimmer Doubling Technology
- The patented, optional Dimmer Doubler allows two lighting fixtures to operate independently using only one dimmer (in North America only).
In the Box ETC Source Four Junior Zoom 575W Ellipsoidal Spotlight, Black, 15A Twist Lock - 25-50 Degree (115-240V AC) Integral Shutter Blades, 25-50° Zoom Lens Tube Yoke and C Clamp 3' Power Cord with Fiberglass Sheath, 15A Twist Lock Color Frame for Source 4 Black Ellipsoidals 2 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Junior Zoom 575W Ellipsoidal Spotlight, Black, 15A Twist Lock - 25-50 Degree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Jr Zoom Specs | Rating | 375, 575W | | Socket (Lampholder) | G9, Heat Sink bi-pin | | Lens (Condenser) | 25-50° | | Reflector (Mirror) | Faceted borosilicate aluminum, multi-layer dichroic coating | | Mounting | M12 hole with C-clamp, safety cable optional | | Yoke | Twin flat blade steel fork, 2 mounting positions | | Cable | 3', fiberglass sheath, 15A Twist Lock | | Focusing | 25-50° Tube with high contrast aspheric Lens, Stainless steel shutters | | Weight | 12.3 lb (5.6 kg) with C-Clamp | | Dimensions | 19.2 x 17.5 x 9.6" (49 x 44.5 x 24 cm) with C-Clamp | | | | Package Weight | 16.55 lb | | Box Dimensions (LxWxH) | 23.5 x 10.5 x 10.5" |
