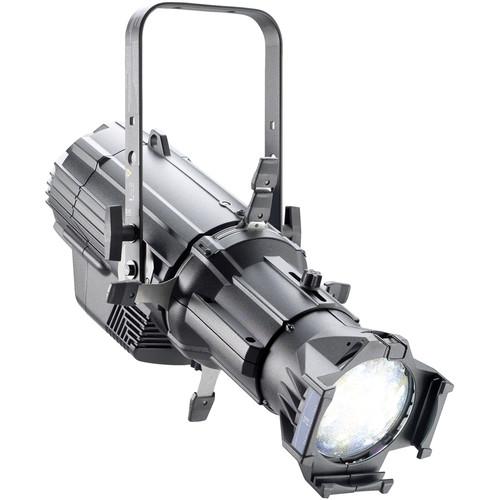

User Manual for ETC Source Four LED Series 2 Daylight HD with Shutter Barrel Click to enlarge the picture
Contents of the user manual for the ETC Source Four LED Series 2
- Product category: LED Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC LED Lights
|
User manual for the ETC Source Four LED Series 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The silver Source Four LED Series 2 Daylight HD with Shutter Barrel from ETC is an LED fixture offering a flicker-free output ideal for broadcast and stage lighting applications. The Daylight HD model uses a mixture of 60 LED emitters to produce a variable cool-white color temperature output with ideal performance between 4000-6500K to imitate natural daylight sources. Color tint control is also offered for fine-tuning to match different skin tones. This light engine is capable of CRIs up to 95 when balanced to 4500K, and the LEDs have a long lifetime of 20,000 hours before dropping to 70% intensity. Also, there is a 15-bit virtual dimming engine for smooth transitions without color shifts.
The Series 2 Daylight HD has remote control with DMX512 using 5-pin XLR connectors. Multiple lights can be linked for synchronization and there is also RDM functionality. The physical characteristics of the light include a quiet fan cooling system and a durable die-cast aluminum construction. It is IP20- and UL1573-certified and comes with a hanging yoke mount. Additionally, it has a universal 100-240 VAC power supply. - Light Quality
-
- LED array with 60 Luxeon Rebel emitters
- Daylight/cool-white balance with peak performance from 4000-6500K
- Brightness of the array is about 9700 lumens at 4500K
- Beam has 2-to-1 center-to-edge drop-off ratio
- LED lifetime is about 20,000 before dropping to 70% intensity
- Control and Interface
-
- Complies with DMX512A standard with in and thru via 5-pin XLR connectors
- Control options include RGB, HSI, HSIC, Direct control, Studio control, and variable-rate Strobe
- Six-button user interface and multi-line LCD display
- RDM compatibility
- 15-bit non-linear scaling techniques for dimming
- Dimming curve options include incandescent, standard, linear, and quick
- Physical
-
- Die-cast aluminum construction
- IP20 rated and ETL listed to UL1573 standard
- Yoke mount with two mounting positions for 300° rotation
- Shutter assembly allows for ±25° rotation
- Slots for mounting accessories and attaching optional lenses
- Quiet fan cooling system
In the Box ETC Source Four LED Series 2 Daylight HD with Shutter Barrel (Silver) - Hanging Yoke
- 5' Neutrik PowerCON to Edison Power Cable
- Gate Diffuser
- A-Size Pattern Holder
- Limited 3-Year Warranty
Quick start Guide PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four LED Series 2 Daylight HD with Shutter Barrel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Series 2 Specs | | | Color Temperature | 4000 to 6500K | | Color Accuracy Standard | CRI 95 at 4500K
CRI 92 at 5600K | | Cooling System | None | | Dimming | Yes Continuous | | Display | None | | Housing Material | Aluminum | | Lumens | 9700 | | Number of LEDs | 60 | | Expected Lamp Life | 20,000 Hours (L70) | | Fixture Dimensions | 17.1 x 13.3 x 24.8" / 43.4 x 33.8 x 63.1 cm | | Fixture Weight | 18.3 lb / 8.3 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 171 W | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP20 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 13.0" |
