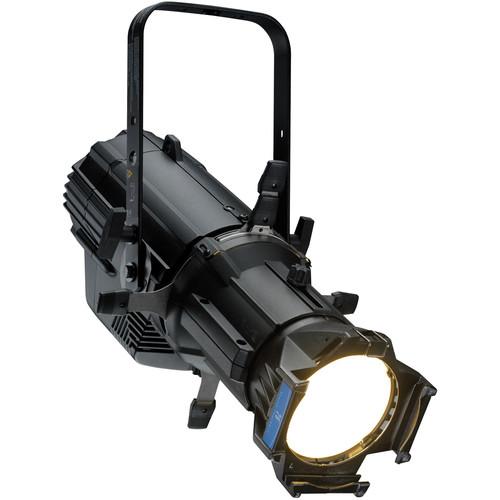

Product description The Source Four LED Series 2 Lustr Light Engine Body from ETC is an LED fixture that utilizes the seven color x7 system with 60 Luxeon Rebel LEDs to create quality light in a range of colors. This light engine is capable of CRI >90 when balanced to 5600K, and the LEDs have a long lifetime of 20,000 hours before dropping to 70% intensity. Also, there is a 15-bit virtual dimming engine for smooth transitions without color shifts.
The Series 2 Lustr has remote control with DMX512 using 5-pin XLR connectors. Multiple lights can be linked for synchronization, and there is also RDM functionality. The physical characteristics of the light include a quiet fan cooling system and a durable die-cast aluminum construction. It is IP20- and UL1573-certified and comes with a hanging yoke mount. Additionally, it has a universal 100-240 VAC power supply.
This light engine body is designed for use with zoom lens tubes, cyc adapters, and for retrofitting with existing Source Four tungsten fixtures. - Light Quality
-
- LED array with 60 Luxeon Rebel emitters
- x7 Color System with red, green, amber, cyan, blue, indigo, and lime LEDs
- Brightness of the array is about 6500 lumens
- Beam has 2-to-1 center-to-edge drop-off ratio
- LED lifetime is about 20,000 hours before dropping to 70% intensity
- Control and Interface
-
- Complies with DMX-512A standard with in and thru via 5-pin XLR connectors
- Control options include RGB, HSI, HSIC, Direct control, Studio control, and variable-rate Strobe
- Six-button user interface and multi-line LCD display
- RDM compatibility
- 15-bit non-linear scaling techniques for dimming
- Dimming curve options include incandescent, standard, linear, and quick
- Physical
-
- Die-cast aluminum construction
- IP20 rated and ETL listed to UL1573 standard
- Yoke mount with two mounting positions for 300° rotation
- Accepts zoom lens tubes, cyc adapters, and allows for retrofitting of existing tungsten fixtures
- Quiet fan cooling system
In the Box ETC Source Four LED Series 2 Lustr Light Engine Body - Hanging Yoke
- 5' Neutrik PowerCON to Edison Power Cable
- C-Clamp Soft Focus Diffuser
- A-Size Pattern Holder
- Limited 3-Year Warranty
Quick start Guide PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four LED Series 2 Lustr Light Engine Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Series 2 Lustr Specs | Rating | At 5600K: >90
At 3200K: >86 | | Color System | x7 Color System | | LED Array | 60 Luxeon Rebel LEDs | | LED Lifetime | 20,000 hours to 70% brightness | | Colors | Red, amber, green, cyan, blue, indigo, and lime | | Brightness | 6500 lumens | | Dimming | 15-bit non-linear scaling with incandescent, standard, linear, and quick curve options | | Drive System | Pulse-Width Modulation | | Remote Control Interface | USITT DMX 512A via In and Thru 5-pin XLR connectors
ANSI RDM E1.20 standard | | Construction | Die-cast aluminum alloy | | Ingress Protection Rating | IP20 | | Certifications | UL1573 | | Mount | Hanging yoke with C-clamp | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | 171 W, 1.44 A at 120 VAC | | Dimensions | 10.8 x 17.0 x 13.3" / 27.4 x 43.4 x 33.8 cm (including yoke) | | Weight | 14.3 lb / 6.5 kg | | | | Package Weight | 19.815 lb | | Box Dimensions (LxWxH) | 17.4 x 12.3 x 12.3" |
