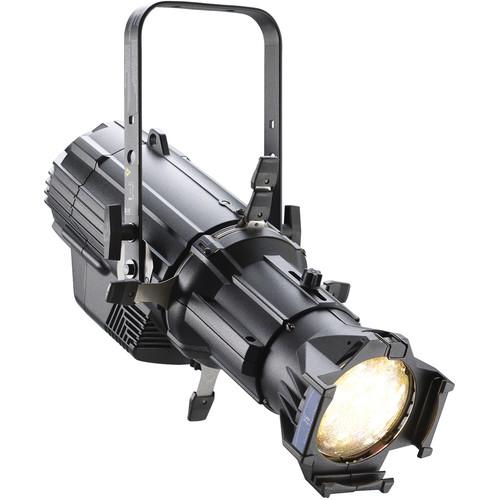

Product description The Source Four LED Series 2 Tungsten HD Light Engine Body from ETC is an LED fixture offering a flicker-free output ideal for broadcast and stage lighting applications. The Tungsten HD model uses a mixture of 60 LED emitters to produce a variable, warm-white color temperature output with ideal performance between 2700-4500K to match other tungsten-balanced sources. Color tint control is also offered for fine-tuning to match different skin tones. This light engine is capable of a CRI up to 96 when balanced to 3200K, and the LEDs have a long lifetime of 20,000 hours before dropping to 70% intensity. Also, there is a 15-bit virtual dimming engine for smooth transitions without color shifts.
The Series 2 Tungsten HD has remote control with DMX512 using 5-pin XLR connectors. Multiple lights can be linked for synchronization, and there is also RDM functionality. The physical characteristics of the light include a quiet fan cooling system and a durable die-cast aluminum construction. It is IP20- and UL1573-certified and comes with a hanging yoke mount. Additionally, it has a universal 100-240 VAC power supply.
This light engine body is designed for use with zoom lens tubes, cyc adapters, and for retrofitting with existing Source Four tungsten fixtures. - Light Quality
-
- LED array with 60 Luxeon Rebel emitters
- Tungsten/warm-white balance with peak performance from 2700-4500K
- Brightness of the array is about 8400 lumens at 2700K
- Beam has 2-to-1 center-to-edge drop-off ratio
- LED lifetime is about 20,000 hours before dropping to 70% intensity
- Control and Interface
-
- Complies with DMX-512A standard with in and thru via 5-pin XLR connectors
- Control options include RGB, HSI, HSIC, Direct control, Studio control, and variable-rate Strobe
- Six-button user interface and multi-line LCD display
- RDM compatibility
- 15-bit non-linear scaling techniques for dimming
- Dimming curve options include incandescent, standard, linear, and quick
- Physical
-
- Die-cast aluminum construction
- IP20 rated and ETL listed to UL1573 standard
- Yoke mount with two mounting positions for 300° rotation
- Accepts zoom lens tubes, cyc adapters, and allows for retrofitting of existing fixtures
- Quiet fan cooling system
In the Box ETC Source Four LED Series 2 Tungsten HD Light Engine Body - Hanging Yoke
- 5' Neutrik PowerCON to Edison Power Cable
- Gate Diffuser
- A-Size Pattern Holder
- Limited 3-Year Warranty
Quick start Guide PDF 2.8mbyedbxvaeseewfevdrvaaewxsxtrevufyasrwb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four LED Series 2 Tungsten HD Light Engine Body in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Series 2 Specs | Rating | At 3200K: 96
At 4000K: 91 | | LED Array | 60 Luxeon Rebel LEDs | | LED Lifetime | 20,000 hours to 70% brightness | | Brightness | 8400 lumens at 2700K | | Dimming | 15-bit non-linear scaling with incandescent, standard, linear, and quick curve options | | Drive System | Pulse-Width Modulation | | Remote Control Interface | USITT DMX 512A via In and Thru 5-pin XLR connectors
ANSI RDM E1.20 standard | | Construction | Die-cast aluminum alloy | | Ingress Protection Rating | IP20 | | Certifications | UL1573 | | Mount | Hanging yoke with C-clamp | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Power Requirements | 100-240 VAC, 50/60 Hz | | Power Consumption | 171 W, 1.44 A at 120 VAC | | Dimensions | 10.8 x 17.0 x 13.3" / 27.4 x 43.4 x 33.8 cm (including yoke) | | Weight | 14.3 lb / 6.5 kg | | | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 13.0" |
