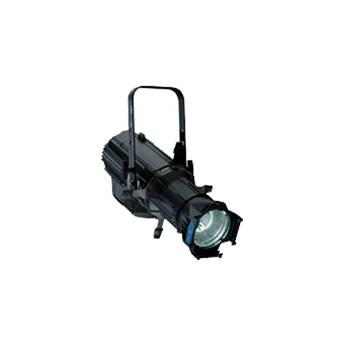

Product description This silver-finished Source Four LED Studio HD Ellipsoidal light engine with shutter barrel is ideal for video, film and other white-light applications. With its rugged diecastenclosure and easy-to-operate user interface, the Source Four LED Studio HD is a powerful tool for any lighting professional. The fixture can be configured to operate under console control for studio systems or in stand-alone, no-controller-required settings for location lighting.This is a light engine with a shutter barrel and requires a lens tube for use. All Source Four lens tubes deliver a high-quality, controllable beam of LED light. For the best results, it is highly recommended that EDLT versions are used. There is also a special LED-only version of the 50° lens tube. - General
-
- 60 LED array
- ETL listed to UL1573 - the standard for stage and studio lighting units
- IP20-rated for indoor use
- Power and DMX in/thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Physical
-
- Rugged die-cast, all-metal housing
- Standard black finish. Optional white, silver or custom colors
- C-clamp
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- Hanging yoke standard. Optional yoke/floor stand available
- Electrical
-
- 100 to 240VAC 50/60 Hz universal power input
- Neutrik power in and thru connections
- Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel. Consult breaker trip curves when used with other equipment
- Uses power from a non-dim source
- Light Source
- 60 2.5W LED emitters with 50,000-hour LED life
- Color
-
- Provides rich variable-white light
- Color temperature range from 2700 to 6500K
- Broad-spectrum color interacts seamlessly with conventional sources
- Exclusive red-shift option emulates incandescent dimming performance
- Illuminates skin tones and other objects for natural appearance and high color rendering
- Optical
-
- Use the included soft-focus diffuser for creating washes or soft light
- Best performance using ETC's EDLT lens tubes
- Can use all ETC Source Four interchangeable lens barrels: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses
- For better performance, use the new LED 50° barrel
- Control
-
- DMX512 in and thru via 5-pin XLR connectors
- Multiple control options including RGB, strobe, and console-free Master/Slave mode
- 15-bit virtual dimming engine provides smooth, high-quality theatrical fades and minimizes color shift during dimming
- RDM functionality for address and setting changes
- Thermal
-
- Ambient operating temperature of -4 to 104°F (-20° to 40°C)
- Active electronic thermal management for droop-free operation
- Quiet fan cooling
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature if there is free flow of air around fixture housing
In the Box ETC Source Four LED Studio HD Ellipsoidal (Silver) Shutter Barrel Hanging Yoke Gobo Holder Diffuser C-Clamp Limited 2-Year Warranty Quick start Guide PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four LED Studio HD Ellipsoidal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Studio HD Specs | Material | All metal | | Light Source | 60 2.5 W LED emitters, 50,000 hours life expectancy to 70% intensity | | Gobos | Slot for optional glass or steel gobos
Slot with sliding cover for motorized pattern devices or optional iris | | Focus | Manual | | Color Temperature | 2700 to 6500 K | | Color Accuracy | CRI
94 @ 3200 K, 91 @ 5600 K
CQS
95 @ 3200 K, 87 @ 5600 K
Color Fidelity
93 @ 3200 K, 86 @ 5600 K
Duv
0.000 @ 3200 K, 0.000 @ 5600 K | | Beam and Field Angle | Depends on optional lens in use | | Illuminance | Depends on optional lens in use | | Lens | Optional 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses | | Dimming | 15-bit Virtual dimming engine
Red-shift option emulates incandescent dimming | | Approvals and Ratings | IP20, dry location
ETL listed to UL1573 | | Control | Power and DMX in/thru connections
RGB, strobe, and console-free Master/Slave mode
RDM | | Operating Temperature | 4 to 104°F (-20° to 40°C) | | Cooling | Quiet fan | | Cable | Neutrik power in and thru connections | | Power Linking | Up to 9 fixtures (15 A max.) linked via power thru connector (10 fixtures total per circuit) | | Input Voltage | 100 to 240 VAC 50/60 Hz
Inrush: 120 V: 11 A (first half-cycle), 240 V: 15 A (first half-cycle) | | Approvals | CE, MET | | Dimensions | Fixture without lens: 8.9 x 4.3 x 9.1" (225 x 108 x 232 mm)
Fixture with lens extended: 11.5 x 4.3 x 9.1: (291 x 108 x 232 mm) | | Weight | Fixture without lens 2.8 lb (1.3 kg)
Fixture with lens: 3.2 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 13.0" |
