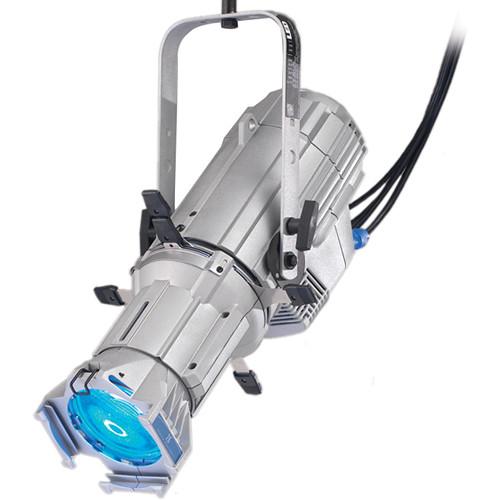

Product description The ETC Source Four LED Tungsten Light Engine Body with Shutter Barrel is the heart of the Source Four LED ellipsoidal. This listing is for the engine and shutter barrel and requires separate purchase of a lens tube with your choice of 5, 10, 14, 19, 26, 36, 50, 70, or 90-degree lenses. Zoom lenses cannot be used with the shutter barrel. The engine/barrel combo includes a 5' powerCON bare end cable, yoke mount, C-clamp, soft focus diffuser and an A-size pattern holder. Edison, Stage Pin, and Twist Lock connectors are available separately. The Source Four LED Tungsten Ellipsoidal is a advanced luminaire employing sixty 2.5mm emitters with a color temperature 3000K a CRI of 86, CQS of 86 and a color fidelity rating of 86 at 3000K. The Duv rating of 0.001 indicates the near absence of green or magenta tint. Light intensity is variable remotely via DMX. The light engine/barrel ships with a 100-240 VAC power supply and weighs 18.3 lb. - General
-
- 60-LED array
- ETL listed to UL1573, the standard for stage and studio lighting units
- IP20-rated for indoor use
- Power and DMX in/thru connections for easy setup
- User-friendly control interface with multiple modes and fixture settings
- Physical
-
- Rugged die-cast all-metal housing
- Available in black, white, silver or custom colors
- C-clamp
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns and soft focus diffuser
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- Hanging yoke standard. Optional yoke/floor stand available
- Electrical
-
- 100-240 VAC, 50/60 Hz universal power input
- Neutrik power in and thru connections
- Up to 9 fixtures (15A max) may be linked via power thru connector
- Requires power from a non-dim source
- LEDs
-
- 50,000 hour LED life (to 70% intensity)
- 60 2.5W LED emitters
- Optical
-
- Use the included soft-focus diffuser for creating washes or soft light
- Best performance using ETC's EDLT lens tubes, especially 50° barrel
- Can use all ETC Source Four Interchangeable lens barrels: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses (no zooms)
- Control
-
- DMX512 in and thru via five-pin XLR connectors
- Multiple control options including strobe, and console free Master/Slave mode
- Multiple dimming curve options
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
- Preset sequences
- Loss of data behavior options - instant off and "hold last look" for two minutes
- Output modes - three output options that offer the user a choice between maximum output and maximum consistency
- RDM functionality for address and setting changes
- Quick Setups
- 3 Combinations of operational settings are available to get quickly started. These settings are specifically created for different applications and are easily accessible at the fixture display. Each setting can then be modified as required to take advantage of all of the possible control features.
- Studio: Enables control of intensity from luminaire U/I; no console required. Features linear dimming curve and regulated output for color consistency
- Single Channel: Direct: For general purpose architectural use. Features standard dimming curve and regulated output for color consistency
- Stage: Direct: Matches conventional luminaire performance. Features incandescent dimming curve and regulated output
- Thermal
-
- Ambient operating temperature of -4° to 104°F (-20° to 40°C)
- Active electronic thermal management for droop-free operation
- Quiet fan cooling
- Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
In the Box ETC Source Four LED Tungsten Light Engine Body with Shutter Barrel (Silver) Pattern Holder Yoke C-Clamp Soft Focus Diffuser PowerCON Bare End Cable (5') Limited 2-Year Warranty User Manual PDF 991.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four LED Tungsten Light Engine Body with Shutter Barrel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Tungsten Specs | | | Color Temperature | 3000K | | Color Accuracy Standard | CRI 86 at 3200K
CQS 86 at 3200K | | Cooling System | Fan | | Dimming | Yes | | Display | None | | Number of LEDs | 60 | | Fixture Dimensions | 18.8 x 13.3 x 18.5" / 47.7 x 33.8 x 47.0 cm (Including Yoke & Shutters) | | Fixture Weight | 18.3 lb / 8.5 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Consumption Per LED | 2.5 W | | Max Power Consumption | 157.4 W | | | | Cable Length | 5' / 1.5 m | | Cable Type | powerCON to Bare Ends | | | | Box Dimensions (LxWxH) | 28.0 x 27.0 x 13.0" |
