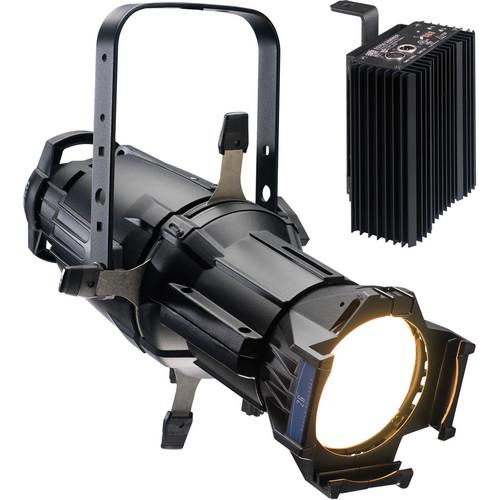

Product description The white Source Four Lighting Fixture with Dimmer and Bare Power Lead from ETC combines the energy-saving power of the patented HPL lamp (sold separately), with a dichroic reflector and optical-quality lenses (sold separately), for a cooler operating light. That means your gels, patterns and shutters last longer and your performance space stays cooler.The Source Four's revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The EDLT lens tube option (sold separately) for 19º, 26º, 36º and 50º field angles makes the Source Four better for ultra-crisp, high-contrast gobo projections.Rated for up to 750W, the Source Four is great for punching through saturated colors and performing the longest throws. Ultra-efficient for more lumens per watt. At 575 watts the Source Four is brighter then conventional 1000w ellipsoidals. At 750 watts the Source Four is one of the brightest fixtures available in its class. Fixture - Rugged die-cast and extruded aluminum construction
- Rotating shutter assembly ±25˚
- 20-gauge stainless steel shutters in a tri-plane assembly
- Interchangeable lenstubes with smooth-running Teflon guides provide nine user selectable field angle options
- Thermally insulated rear handle
- High impact, thermally insulated knobs and shutter handles
- Two accessory slots and a top mounted, gel frame retainer
- Steel yoke with two mounting positions
- Positive locking double-clutch fixture body
- Slot for glass or stainless steel patterns
- Wide accessory slot with sliding cover for motorized pattern devices or optional iris
- High temperature 3-conductor 36" leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Re-optimized optical system for improved photometric performance and field uniformity
- Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
- Reflector secured with anti-vibration shock mounts
- Micro-groove plastic fresnel lens
- Lenses (sold separately) secured with anti-vibration shock mounts
- Tool free, positive locking X, Y, and Z lamp centering adjustments, unaffected by relamping
- Beam edge continually adjustable from hard to soft
- Interchangeable lens barrels permit selection of 5˚, 10˚, 14°, 19˚, 26˚, 36˚, 50˚, 70°, and 90° field angles as well as 19˚, 26˚, 36˚, and 50˚ EDLT lenses (sold separately)
Dimmer - Designed for use with all tungsten Source Four family fixtures
- Electronic Silent technology for operation free of dimmer- and lamp-filament noise
- Changes your Source Four into a truly distributed fixture with onboard dimming and control
- Electronic Dimming with harmonic and noise suppression
- Acoustic specification replaces dimmer rise time
- Manufactured of epoxy-painted aluminum body and anodized aluminum heat sink
- Multiple yoke-fixing hole combinations for flexible mounting to the fixture
- Convection-cooled; operates without cooling fans
- DMX512A/RDM In and Thru via 5-Pin XLR connectors
- Bare-end power cable input
- Lamp burner directly connected to output cable
- 2,500V isolation between control and power components
- Electronic overcurrent protection
- Supports up to 32 units on one DMX line
- Three-Button Local Control: Focus/test, up and down
- Single button DIM to full for focus
- Up/down buttons for setting DMX address or for local intensity control
- One Status Indicator: Multicolor LED for power, error, and valid DMX
- Three Selectable Dimmer Output Curves: IES modified square law, linear, switched (50% threshold)
- Produces no lamp noise (exceeds all rise time specs) as electronics sound-pressure level less than 0 dBa at 3.2' (1m)
- ANSI E1.20 RDM and ANSI E1.11 DMX512A
- RDM: Discover (flashes light output); find and set DMX address; change curve; receive overcurrent/undercurrent warnings; receive over temperature warning
- Yoke mount, universal mounting bracket included for direct mounting on a fixture yoke in multiple orientations to accommodate maximum flexibility
- Up and down level control, returns to previous level after power loss
- No electrical assembly required
- Applications: Theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, multi-use venues such as schools and meeting rooms, and any application requiring distributed dimming and position flexibility
In the Box ETC Source Four Lighting Fixture with Dimmer and Bare Power Lead (White) Color Frame C-Clamp 36.0" (91.4cm) Leads Bare Power Lead Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Lighting Fixture with Dimmer and Bare Power Lead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Specs | Rotation | ±25˚ shutter assembly | | Socket (Lampholder) | HPL Quick eXchange Socket.
750W Maximum | | Construction | 20-gauge stainless steel | | Voltage | 115 to 240 V, 50/60 Hz | | Dimensions (L x W x H) | 8.5" x 13.3" x 21.3" (216 x 338 x 541.0 mm) | | Weight | 14.0 lb (6.4 kg) | | Sizing | 20 A Breaker | | Voltage Range | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Regulated Output Voltage | Supports 208 V input to 115 V output | | Isolation | 2,500 V between control and power components | | Max Output | 750 W | | Ambient Temperature | 104°F (40°C) | | Humidity | 10 to 95%, non-condensing | | Heat Dissipation | 171 BTU at full load | | Dimensions (WxHxL) | 3.57 x 6.50 x 7.35" (90.68 x 165.10 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 25.1 x 14.4 x 11.4" |
