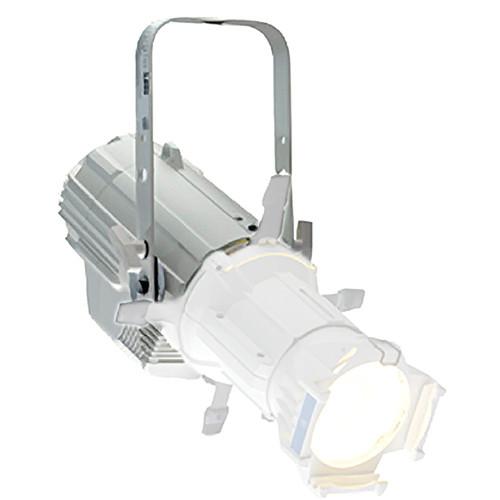

User Manual for ETC Source Four Lustr LED Light Engine with Shutter Barrel -100-240VAC Click to enlarge the picture
Contents of the user manual for the ETC Source Four Lustr LED Light
- Product category: LED Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC LED Lights
|
User manual for the ETC Source Four Lustr LED Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The Source Four LED line is the result of the marriage of the Source Four and Desire product lines yielding the control of a Source Four with color control of the Desire fixture. This ETC Source Four Lustr+ LED Light Engine with Shutter Barrel (White) - 100-240VAC is comprised of the light engine and shutter barrel only. It requires one of the interchangeable fixed field lenses for use. Lustr+ fixtures utilize an exclusive x7 Color System which allows blending of the 7-color LED array to render an extremely broad range of colors, subtle hues and theatrical tints. The Lustr+ is especially complementary to skin tones. Other benefits of the series are multiple control options via DMX, multi-voltage operation and long (50,000 hour) lamp life. - x7 Color System
- Source Four LED Lustr+ fixtures are based on the x7 Color System utilizing six colors plus high-intensity white to achieve true, usable broad-spectrum color. Rich vibrant colors as well as subtle theatrical tints are all possible with this color changing fixture. Explore new opportunities by pairing with incandescent light from the ETC's original Source Four line of fixtures to provide maximum flexibility and range
- High Color Rendering
- Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
- Broad Spectrum Color
- Broad-spectrum color interacts seamlessly with conventional sources
- Optional Red-shift Option
- Exclusive optional red-shift option emulates tungsten dimming performance
- Intuitive Controls
- User-friendly control interface with multiple modes and fixture settings
- 60 LEDs
- 60 Luxeon Rebel LED color mixing profile spotlight fixture
- Power Thru Feature
- Up to nine fixtures can be linked via power in/thru connectors
- 15-bit Virtual Dimming
- 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes color shift during dimming
- RDM
- RDM functionality for address and setting changes
- Cool Handling
- Thermally insulated rear handle, knobs and shutter handles make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler
- Sturdy Construction
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters
- Tool-free Lamping
- Tool-free lamp centering and peak/flat adjustment knobs are built in
- Multi-voltage
- Functions with 110-240 AC voltage
- Positive Adjustments
- Positive locking double-clutch fixture body
- Neutrik Connector
- Neutrik power in and thru connections
- Cooling
- Quiet fan cooling. Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing. Active electronic thermal management is employed for droop-free operation
- Compatible Lenses
- Can use all ETC Source Four Interchangeable lens tubes: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses
- Control Options
-
- Multiple DMX choices ranging from a simple RGB profile - which effectively controls all seven LED colors via three channels - to nine-channel "direct" color and intensity control
- Multiple dimming curve options
- Preset colors and sequences for stand-alone (no console required) operation
- White point selection - white light and color behavior based on a specific color temperature white light, i.e. 3200K, 5600K, etc
- Loss of data behavior options - instant off, hold last look for two minutes, etc
- Output modes - three output options that offer the user a choice between maximum output and maximum consistency
In the Box ETC Source Four Lustr+ LED Light Engine with Shutter Barrel (White) -100-240VAC PowerCon to Bare Ends Power Input Lead 5.0' (1.5 m) Soft Focus Diffuser Gobo Holder Limited 1-Year Warranty User Manual PDF 991.3kbafqaffrddyufdybefb Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Lustr LED Light Engine with Shutter Barrel -100-240VAC in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Lustr Specs | | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 84 at 3200K
CQS 87 at 3200K
CRI 92 at 5600K
CQS 92 at 5600K | | Cooling System | None | | Display | None | | Housing Material | Metal | | Number of LEDs | 60 | | Expected Lamp Life | 50,000 Hours | | Fixture Dimensions | 24.8 x 17.0 x 13.3" / 63.1 x 43.4 x 33.8 cm | | Fixture Weight | 18.3 lb / 8.3 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | None | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 135.9 W | | | | Cable Length | 5' / 1.5 m | | Cable Type | powerCON to Bare Ends | | | | Certifications | UL, as per Manufacturer | | IP Rating | IP20 | | Operating Temperature | -4 to 104°F / -20 to 40°C | | | | Package Weight | 25.1 lb | | Box Dimensions (LxWxH) | 27.0 x 12.0 x 12.0" |
