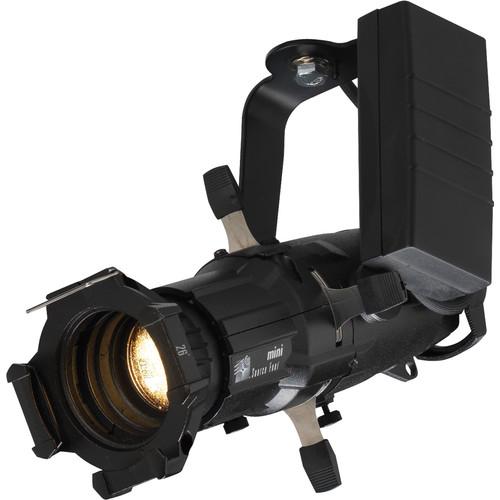

Product description The black-finished, 26 degree, Source Four Mini Portable Mount LED light from ETC is a lightweight, high-output ellipsoidal, with a 3,000 K Cree LED light source that is well-suited to multi-fixture designs in venues such as museums, retail stores, restaurants, lobbies, labs and theaters. The Mini features die cast, aluminum construction with a steel yoke, 4 captive shutter blades, dual captive accessory slots and thermally insulated knobs and shutter handles. The Source Four Mini uses projector-quality lenses which can be adjusted for a hard or soft beam edge. The fixture includes a E-sized holder for gobos with 1.47" (37.5 mm) with a 1.0" (25.4 mm) image areas. A media frame is also included for filters and diffusion material. This Portable version of the Mini has a C-clamp for attachment to pipe with a 0.37" (9.5 mm) to 1" (25.4 mm) diameter, an LED driver in a color-matched enclosure and a 3' power cable with a NEMA 5-15P 3-prong, North American connector. - Portable (C-Clamp) Mount
-
- Yoke-mounted LED driver in color-matched enclosure
- Miniature C-Clamp mounting (included) for use with 3/8" to 1" pipe
- 3' power cable with NEMA 5-15P connector
- Construction
-
- Die-cast aluminum construction (A380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with 0.406" (10.3 mm) diameter mounting hole
- Rotating shutter assembly ±175°
- E-size gobo pattern holder (included) 1.47" (37.5 mm) with a 1.0" (25.4 mm) image area
- Stainless steel, full hard shutters in a tri-plane assembly, 0.015" (0.40 mm) (A301 grade)
- Tool-free tilt and beam adjustment
- High-impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for included pattern holder
- Dual captive accessory slots for included media frame
- Electrical
-
- Power at full intensity: 12 W typical, 14W max
- 18 AWG input wire size
- Input voltage: 90-135 VAC, 50/60 Hz,
- Dimmable (forward and reverse phase)
- Inrush (first half-cycle), 120 V: 3 A
- Lamp
-
- Cree LED
- Long-life: 35,000 hours L70 lumen maintenance
- 3,000 K color temperature
- Optical
-
- Projector-quality, high-contrast lenses
- Beam edge continually adjustable from hard to soft
- Venue Compatibility
-
- Museums
- Retail stores
- Restaurants
- Lobbies
- Labs
- Theaters
- Photometrics
- 26°
Field lumens: 490
Beam lumens: 399
Field angle: 26.8°
Candela: 4,440
Lumens per watt: 37.1
44 fc/ 478 lux @ 10' (3.0 m) with a field diameter of 4.8' (1.5 m)
20 fc/ 212 lux @ 15' (4.6 m) with a field diameter of 7.1' (2.2 m)
11 fc/ 119 lux @ 20' (6.1 m) with a field diameter of 9.5' (2.9 m)
7.0 fc/ 76 lux @ 25' (7.6 m) with a field diameter of 11.9' (3.6 m) In the Box ETC Source Four Mini LED - 26 Degree (Portable, Black) Gobo Pattern Holder for Source Four Mini Luminaire (E Size) czcratuwecuev Color Frame for Source Four Mini (Black) Miniature C-Clamp Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Mini LED - 26 Degree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Mini LED Specs | Material | Steel, aluminum, polymer | | Light Source | Cree LED | | Color Temperature | 3,000 K | | CRI | 80+ | | Rating | 70 Lumens | | Beam Angle | 26° | | Focusing | Beam edge continually adjustable hard to soft | | Adjustments | Rotating shutter: +/-175° | | Dimmer | Yes | | Mounting | C-Clamp | | Yoke | Steel yoke with 0.406" (10.3 mm) diameter mounting hole | | Cable | Yes, 3.0' power cable with NEMA 5-15P (3-Prong NA/US) Connector | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Power Requirements | 90-135 VAC, 50/60 Hz, 3 A | | Power Consumption | 12 W Typical, 14 W max | | Approvals | UL/cUL153 | | Dimensions | 9.69 x 5.25 x 9.87" (246 x 133 x 251 mm) | | Weight | 2.7 lb (1.2 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 6.0" |
