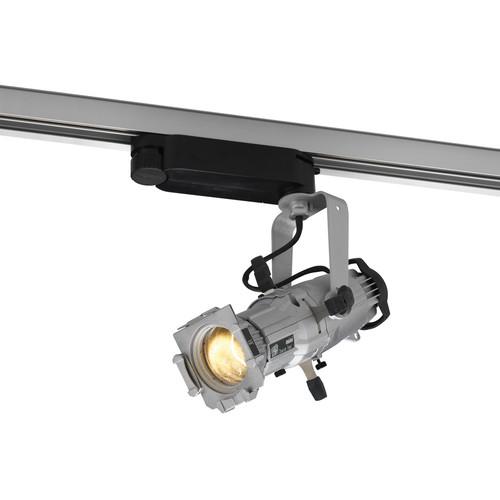

Product description The black-finished, 36 degree, Source Four Mini Gallery with Track Mount LED light from ETC is a lightweight, high-output ellipsoidal, with a 3,000 K Cree LED light source that is well-suited to multi-fixture designs in venues such as museums, retail stores, restaurants, lobbies, labs and theaters. The Mini features die cast, aluminum construction with a steel yoke, 4 captive shutter blades, dual captive accessory slots and thermally insulated knobs and shutter handles. The Source Four Mini uses projector-quality lenses which can be adjusted for a hard or soft beam edge. The fixture includes a E-sized holder for gobos with 1.47" (37.5 mm)diameters and 1.0" (25.4 mm) image areas. A media frame is also included for filters and diffusion material. This Gallery with Track Mount version of the Mini has a CRI of 90+, is ETL-listed for EUTRAC brand track and includes a EUTRAC adapter. - Gallery Version with Track Mount
-
- CRI: 90+
- Compatible and ETL-listed for EUTRAC brand track
- EUTRAC (#98-549) two-circuit track adapter included
- LED factory-installed in color-matched adapter
- Construction
-
- Die-cast aluminum construction (A380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with 0.406" (10.3 mm) diameter mounting hole
- Rotating shutter assembly ±175°
- E-size gobo pattern holder (included) 1.47" (37.5 mm) with a 1.0" (25.4 mm) image area
- Stainless steel, full hard shutters in a tri-plane assembly, 0.01" (0.40 mm) (A301 grade)
- Tool-free tilt and beam adjustment
- High-impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for included pattern holder
- Dual captive accessory slots for included media frame
- Electrical
-
- Power at full intensity: 12 W typical, 14 W max
-
- Input voltage: 90-135 VAC, 50/60 Hz,
- Dimmable (forward and reverse phase)
- Inrush (first half-cycle), 120 V: 3A
- Lamp
-
- Cree LED
- Long-life: 35,000 hours L70 lumen maintenance
- 3,000 K color temperature
- Optical
-
- Projector-quality, high-contrast lenses
- Beam edge continually adjustable from hard to soft
- Venue Compatibility
-
- Museums
- Retail stores
- Restaurants
- Lobbies
- Labs
- Theaters
- Photometrics
- 36°
Field lumens: 391
Beam lumens: 320
Field angle: 37°
Candela: 1,730
Lumens per watt: 30.8
17 fc/ 186 lux @ 10' (3.0 m) with a field diameter of 6.7' (2.0 m)
8.0 fc/ 83 lux @ 15' (4.6 m) with a field diameter of 10' (3.1 m)
4.0 fc/ 47 lux @ 20' (6.1 m) with a field diameter of 13.4' (4.1 m)
3.0 fc/ 30 lux @ 25' (7.6 m) with a field diameter of 16.7' (5.1 m) In the Box ETC Source Four Mini LED - 36 Degree (Gallery, Track, Black) Gobo Pattern Holder for Source Four Mini Luminaire (E Size) Color Frame for Source Four Mini (Black) EUTRAC Two-Circuit Track Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Mini LED - 36 Degree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Mini LED Specs | Material | Steel, aluminum, polymer | | Light Source | Cree LED | | Color Temperature | 3,000 K | | CRI | 90+ | | Rating | 70 Lumens | | Beam Angle | 36° | | Focusing | Beam edge continually adjustable hard to soft | | Adjustments | Rotating shutter: +/-175° | | Dimmer | Yes | | Mounting | Track | | Yoke | Steel yoke with 0.406" (10.3 mm) diameter mounting hole | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Power Requirements | 90-135 VAC, 50/60 Hz, 3A | | Power Consumption | 12W Typical, 14 W max | | Approvals | UL/cUL1574 | | Dimensions | 9.69 x 5.25 x 9.82" (246 x 133 x 249 mm) | | Weight | 2.4 lb (1.08 kg) | | | | Box Dimensions (LxWxH) | 12.6 x 10.75 x 4.0" |
