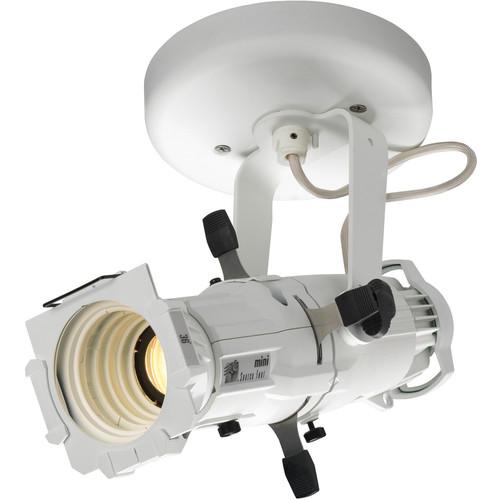

User Manual for ETC Source Four Mini LED - 36 Degree Click to enlarge the picture
Contents of the user manual for the ETC Source Four Mini LED -
- Product category: Architectural Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Architectural Lights
|
User manual for the ETC Source Four Mini LED - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The white-finished, 36 degree, Source Four Mini Gallery with Canopy Mount LED light from ETC is a lightweight, high-output ellipsoidal, with a 3,000 K Cree LED light source that is well-suited to multi-fixture designs in venues such as museums, retail stores, restaurants, lobbies, labs and theaters. The Mini features die cast, aluminum construction with a steel yoke, 4 captive shutter blades, dual captive accessory slots and thermally insulated knobs and shutter handles. The Source Four Mini uses projector-quality lenses which can be adjusted for a hard or soft beam edge. The fixture includes a E-sized holder for gobos with 1.47" (37.5 mm)diameters and 1.0" (25.4 mm) image areas. A media frame is also included for filters and diffusion material. This Gallery Canopy version of the Mini has a CRI of 90+. It comes with a 5.31" diameter pre-wired, color-matched canopy for non-track installation, and features a built-in rotation stop to prevent wire damage when adjusting the light. Installation hardware is included. - Gallery Version with Canopy Mount
-
- Color-matched, powder-coated canopy mount with LED driver
- Canopy dimensions: diameter: 5.31 (135 mm), height 1.04" (26.4 mm)
- Installation hardware included
- Fixture pre-wired to canopy at factory for easy installation
- Built-in rotation stop to prevent cable damage
- Construction
-
- Die-cast aluminum construction (A380 grade)
- Fine-texture, high-temperature powder-coated paint
- Steel yoke with 0.406" (10.3 mm) diameter mounting hole
- Rotating shutter assembly ±175°
- E-size gobo pattern holder (included) 1.47" (37.5 mm) with a 1.0" (25.4 mm) image area
- Stainless steel, full hard shutters in a tri-plane assembly, 0.01" (0.40 mm) (A301 grade)
- Tool-free tilt and beam adjustment
- High-impact resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for included pattern holder
- Dual captive accessory slots for included media frame
- Electrical
-
- Power at full intensity: 12 W typical, 14 W max
-
- Input voltage: 90-135 VAC, 50/60 Hz,
- Dimmable (forward and reverse phase)
- Inrush (first half-cycle), 120 V: 3A
- Lamp
-
- Cree LED
- Long-life: 35,000 hours L70 lumen maintenance
- 3,000 K color temperature
- Optical
-
- Projector-quality, high-contrast lenses
- Beam edge continually adjustable from hard to soft
- Venue Compatibility
-
- Museums
- Retail stores
- Restaurants
- Lobbies
- Labs
- Theaters
- Photometrics
- 36°
Field lumens: 391
Beam lumens: 320
Field angle: 37°
Candela: 1,730
Lumens per watt: 30.8
17 fc/ 186 lux @ 10' (3.0 m) with a field diameter of 6.7' (2.0 m)
8.0 fc/ 83 lux @ 15' (4.6 m) with a field diameter of 10' (3.1 m)
4.0 fc/ 47 lux @ 20' (6.1 m) with a field diameter of 13.4' (4.1 m)
3.0 fc/ 30 lux @ 25' (7.6 m) with a field diameter of 16.7' (5.1 m) In the Box ETC Source Four Mini LED - 36 Degree (Gallery, Canopy, White) Gobo Pattern Holder for Source Four Mini Luminaire (E Size) czcratuwecuev Color Frame for Source Four Mini (White) Installation Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Mini LED - 36 Degree in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Mini LED Specs | Material | Steel, aluminum, polymer | | Light Source | Cree LED | | Color Temperature | 3,000 K | | CRI | 90+ | | Rating | 70 Lumens | | Beam Angle | 36° | | Focusing | Beam edge continually adjustable hard to soft | | Adjustments | Rotating shutter: +/-175° | | Dimmer | Yes | | Mounting | Canopy | | Yoke | Steel yoke with 0.406" (10.3 mm) diameter mounting hole | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Power Requirements | 90-135 VAC, 50/60 Hz, 3A | | Power Consumption | 12W Typical, 14 W max | | Approvals | UL/cUL1598 | | Dimensions | 9.69 x 5.25 x 8.18" (246 x 133 x 208 mm)
5.31" (135 mm) diameter, 1.04" (26.4 mm) height | | Weight | 2.6 lb (1.17 kg) | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 12.6 x 10.7 x 6.2" |
