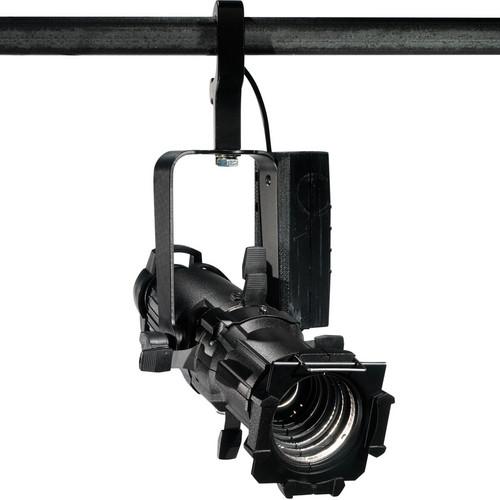

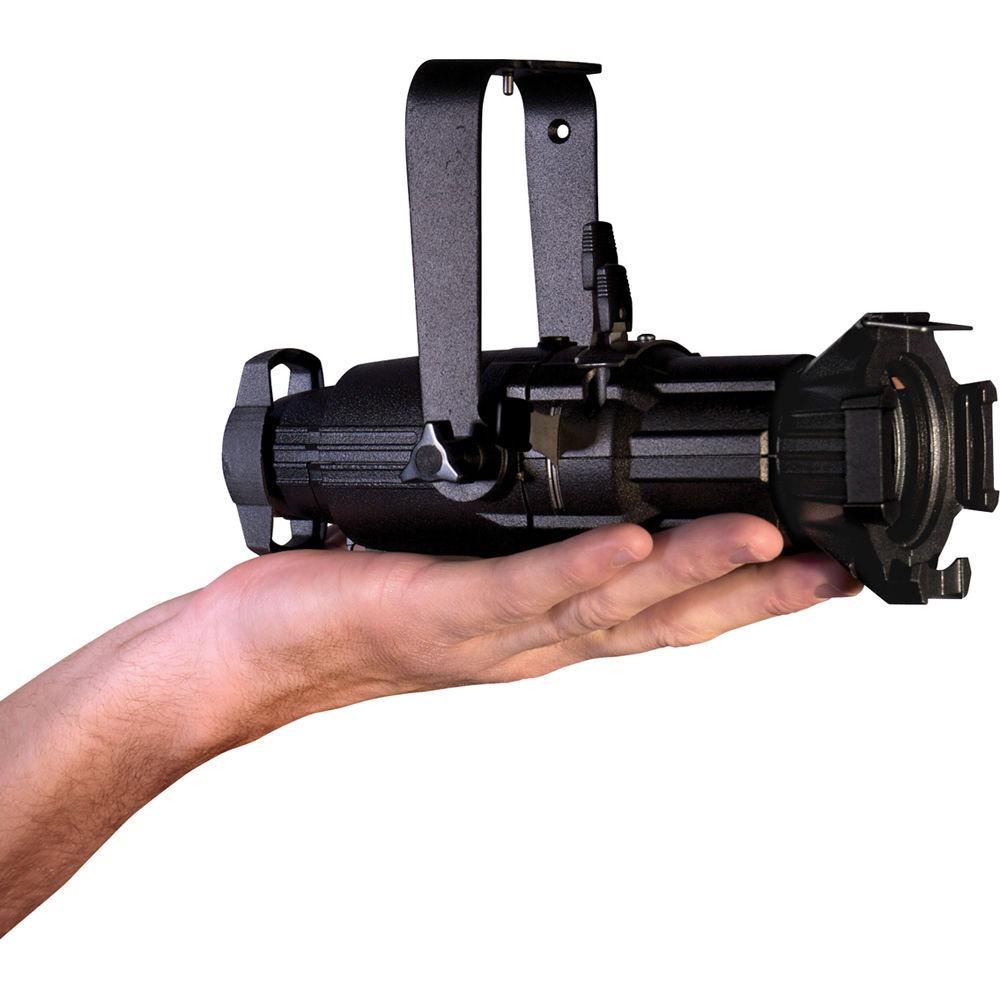

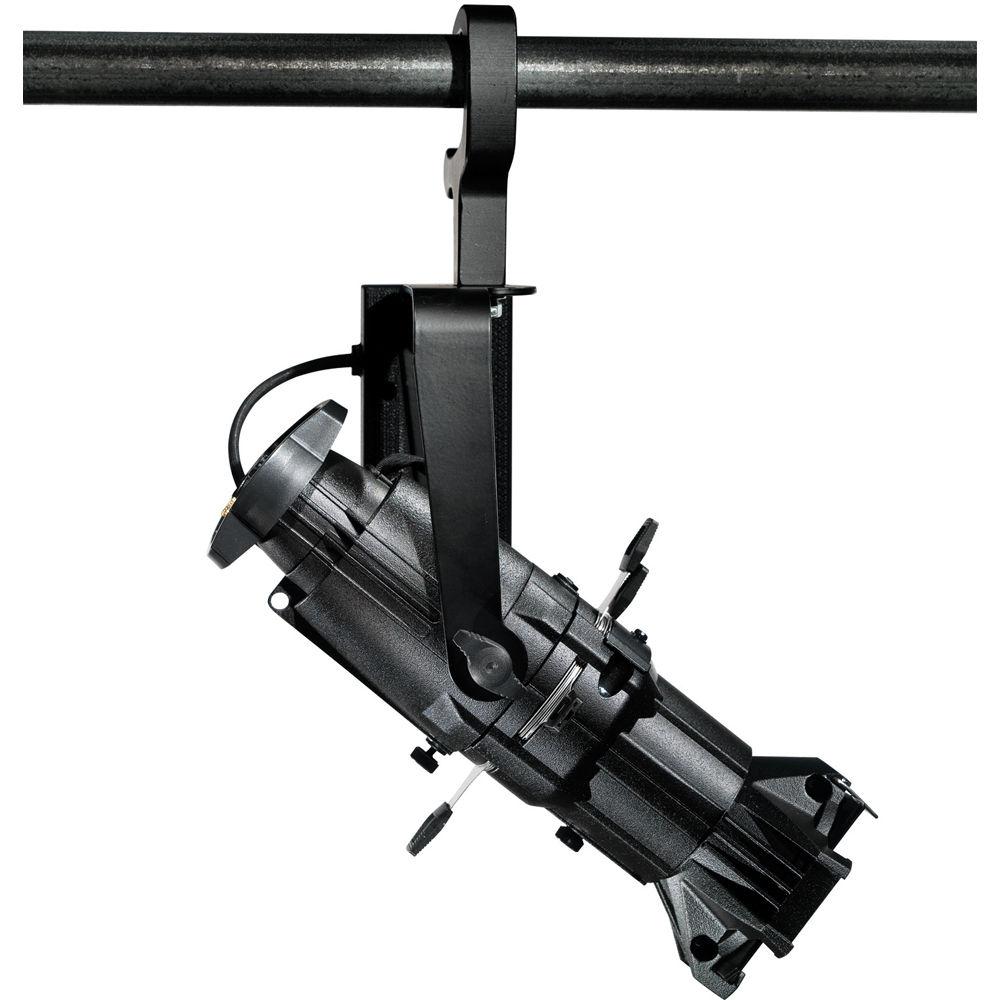

Product description The ETC Source Four Mini with 19° Lens (Black) features a 50W source, crisp optics, user-friendly functionality, and sleek look of the Source Four fixtures, but in a compact format one-tenth its size.
The Source Four Mini features a 19° field angle and comes in a portable version, for clamp or bolt mounting, with the transformer mounted on the yoke. Surprisingly bright for its size, the Mini offers crystal clear image projection and a bright, even field. - Die cast aluminum construction (A380 grade)
- Fine-texture, high-temperature, powder-coated paint
- Steel yoke with 0.4" diameter mounting hole
- Rotating shutter assembly ±175°
- Removable rear housing for easy lamp replacement
- Stainless steel shutters in a tri-plane assembly
- Fixed field angles to suit a range of throw distances
- Tool-free pan, tilt, and beam adjustment
- High impact-resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for pattern holder (included)
- Dual captive accessory slots for color frame (included) and top hats
- Yoke-mounted 12V transformer in black matched enclosure
- Dimmable by most forward or reverse phase dimmers
- Ushio 50W Eurostar IR MR-16 lamp (included)
- Long life of 5000-hour average lamp life
- Halogen capsule cuts harmful UV
- Titanium oxide coating provides consistent color throughout lamp life
- 19° fixed beam field angle lens
- Beam edge continually adjustable hard-to-soft
In the Box ETC Source Four Mini with 19° Lens (Black) C-Clamp Power Cable (3') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Mini with 19° Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Mini Specs | Field Angle | 19° | | Diameter | Steel yoke 0.4" (10.3 mm) | | Rotation | ±175° | | Transformer | GE Lightech 230/12 V Class 2 potted electronic halogen transformer | | Voltage | 120 VAC | | Power Factor | 0.96 | | Input Current | 0.28 A | | Illuminance | Degree: 19°
Beam Angle: 14.10°
Field Lumens: 440
Beam Lumens: 320
Candela: 8,830
Lumens per Watt: 8.76
Illuminance: 950 lux (88.3 fc) at Throw Distance: 10' (3.0 m), Field Diameter: 3.2' (1.0 m)
Illuminance: 422 lux (39.2 fc) at Throw Distance: 15' (4.6 m), Field Diameter: 5.2' (1.6 m)
Illuminance: 238 lux (22.1 fc) at Throw Distance: 20' (6.1 m), Field Diameter: 6.8' (2.1 m)
Illuminance: 106 lux (9.8 fc) at Throw Distance: 29.8' (9.1 m), Field Diameter: 10.1' (3.1 m) | | Output Voltage | 11.7 V | | Lamp | Ushio 50 W Eurostar IR MR-16 lamp (included) | | Lamp Life | 5000-hour average lamp life | | Spread | 35º flood beam spread | | Color Temperature | 3000K | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions | W x H x D: 5.2 x 7.1 x 9.6" (13.2 x 18.0 x 24.4 cm) | | Weight | 2.6 lb (1.2 kg) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 12.5 x 10.7 x 6.3" |
