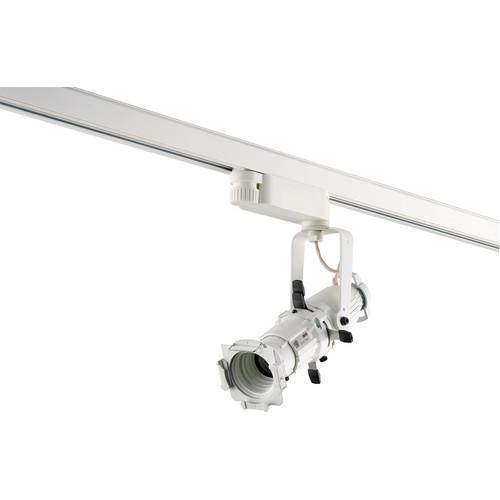

User Manual for ETC Source Four Mini with 50° Lens Click to enlarge the picture
Contents of the user manual for the ETC Source Four Mini with 50°
- Product category: Architectural Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Architectural Lights
|
User manual for the ETC Source Four Mini with 50° contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The ETC Source Four Mini with 50° Lens (Track Adapter Mount, White) features a 50W source, crisp optics, user-friendly functionality, and sleek look of the Source four fixtures, but in a compact format one-tenth its size. This Source Four mini features a 50° Lens and comes in a track mount version with integrated 12V transformer and a EUTRAC 2-circuit track adapter for EUTRAC-brand track. Surprisingly bright for its size, the mini offers crystal-clear image projection and a bright, even field. - Die-cast aluminum construction (A380 grade)
- Integral 12V transformer factory installed in white adapter
- Power lead from fixture to transformer
- Compatible with EUTRAC 2-circuit tracks
- Fine-texture, high-temperature powder-coated paint
- Rotating shutter assembly ±175°
- Removable rear housing for easy lamp replacement
- Stainless steel shutters in a tri-plane assembly
- Fixed field angles to suit a range of throw distances
- Tool-free pan, tilt and beam adjustment
- High impact-resistant, thermally insulated knobs and shutter handles
- Captive accessory slot for pattern holder (included)
- Dual captive accessory slots for color frame (included) and top hats
- 2.9' (90.0cm) power cable
- Dimmable by most forward or reverse phase dimmers
- Halogen capsule cuts harmful UV
- Titanium oxide coating provides consistent color throughout lamp life
- 50° fixed beam field angle lens
- Beam edge continually adjustable hard-to-soft
In the Box ETC Source Four Mini with 50° Lens (Track Adapter Mount, White) Ushio 50 W Eurostar IR MR-16 lamp 3.0' (0.9m) Power Cable EUTRAC 2-circuit track adapter Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Mini with 50° Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Mini Specs | Field Angle | 50° | | Socket (Lampholder) | GU5.3
50W Maximum at 12V | | Rotation | ±175° | | Transformer | GE Lightech 60W Class 2 potted electronic transformer | | Voltage | 120V AC 60 Hz input power | | Power Factor | 0.95 | | Input Current | 0.5 A | | Output Voltage | 12 V | | Illuminance | Degree: 50˚, Beam Angle: 32.2°, Field Lumens: 500, Beam Lumens: 320, Candela: 1,940, Lumens per Watt: 9.96
Illuminance: 209 lux (19.4 fc) at Throw Distance: 10.0' (3.0 m), Field Diameter: 8.9' (2.7 m)
Illuminance: 93 lux (8.6 fc) at Throw Distance: 15.0' (4.6 m), Field Diameter: 13.4' (4.1 m)
Illuminance: 52 lux (4.9 fc) at Throw Distance: 20.0' (6.1 m), Field Diameter: 17.8' (5.4 m)
Illuminance: 23 lux (2.2 fc) at Throw Distance: 30' (9.1 m), Field Diameter: 26.7' (8.1 m) | | Spread | 35º flood beam spread | | Operating Temperature | 32 to 104°F (0 to +40°C) | | Dimensions | W x H x D: 5.25" x 9.82" x 9.69" (133 x 249 x 246mm) | | Weight | 2.4 lbs. (1.1 Kg) | | | | Box Dimensions (LxWxH) | 12.6 x 10.75 x 4.0" |
