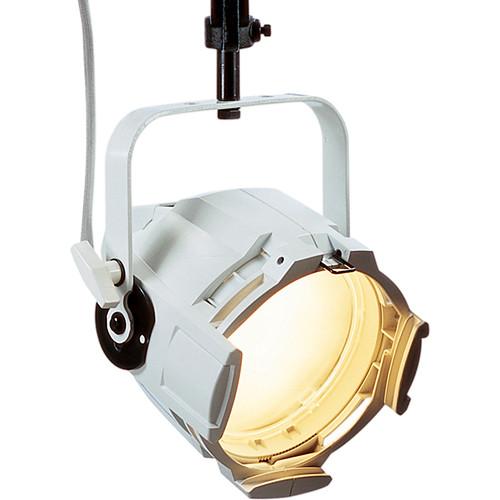

Product description The white Source Four PAR Enhanced Aluminum Fixture from ETC features a die-cast aluminum construction and the Source Four optical technology. This fixture offers a smooth even field, with brightness and energy savings of up to 40%. It is rated for the 750W HPL lamp. Changing beam angles is easy with a set of 4 snap-in lenses that mount in a cool, rotating ring. And when you need a new lamp, you can just use your stock of Source Four HPLs (no need to carry a large inventory of expensive PAR64 lamps). The compact design of this unit allows more units to be mounted on a pipe or fitted into a truck. Combined with reductions in power and cable requirements, this fixture is suitable for touring. It also has a twist-lock connector. - Physical
- Rugged die-cast aluminum construction
Tool-free access to the reflector and lens
High-impact, thermally insulated knobs
Sealed reflector housing
Reflector temperature control through integral heat sink fins
Gel frame holders with 2 accessory slots
Top-mounted, gel-frame retainer
Steel yoke with 2 mounting positions
Positive locking yoke clutch
UL and cUL listed - Electrical
- High-temperature 3-conductor 36.0" (914.4mm) leads in a glass fiber outer sleeve
Supports ETC Dimmer Doubling technology - Lamp
- Compact tungsten filament contained in a krypton/xenon-filled quartz envelope (see table for suitable lamp types)
Filament geometry makes for efficient light collection and transmission
Integral die-cast aluminum heat sink lamp base - Lenses
- Four heat-resistant, molded borosilicate glass lenses supplied with each unit: VNSP (Very Narrow Spot), NSP (Narrow Spot), MFL (Medium Flood), and WFL (Wide Flood)
Round beam for VNSP and NSP, oblong beam shape for MFL and WFL
Tool-free lens changing
Thermally insulated lens ring - Optical
- Modified parabolic and multifaceted reflector
Computer designed reflector facets molded directly into heat sink casting, finished with an enhanced aluminum deposition process, and polished for maximum reflectance In the Box ETC Source Four PAR Enhanced Aluminum Fixture (White) 7.5" (190.5mm) Color Frame Set of four Source Four PAR Lenses (VNSP, NSP, MFL, WFL) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PAR Enhanced Aluminum Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PAR EA Specs | Electrical | 115 to 240 V, 50/60 Hz | | Lamp | 750 W maximum | | Illuminance | With VNSP Lens
At a Throw Distance of 30.0' (9.1 m) with Field Diameter 8.6' (2.6 m): 4,570 lux (422 footcandles)
At a Throw Distance of 50.0' (15.2 m) with Field Diameter 14.4' (4.4 m): 1,645 lux (153 footcandles)
At a Throw Distance of 70.0' (21.3 m) with Field Diameter 20.2' (6.1 m): 839 lux (78 footcandles)
At a Throw Distance of 85.0' (25.9 m) with Field Diameter 24.5' (7.5 m): 569 lux (53 footcandles)
With NSP Lens
At a Throw Distance of 25.0' (7.6 m) with Field Diameter 7.4' (2.3 m): 5,799 lux (539 footcandles)
At a Throw Distance of 45.0' (13.7 m) with Field Diameter 13.3' (4.1 m): 1,790 lux (166 footcandles)
At a Throw Distance of 65.0' (19.8 m) with Field Diameter 19.3' (5.9 m): 858 lux (80 footcandles)
At a Throw Distance of 80.0' (24.4 m) with Field Diameter 23.7' (7.2 m): 566 lux (53 footcandles)
With MFL Lens
At a Throw Distance of 15.0' (4.6 m) with Field Diameter 6.2/8.4' (1.9/2.6 m): 6,467 lux (601 footcandles)
At a Throw Distance of 25.0' (7.6 m) with Field Diameter 10.3/14.0' (3.2/4.3 m): 2,329 lux (216 footcandles)
At a Throw Distance of 40.0' (12.2 m) with Field Diameter 16.6/22.5' (5.0/6.9 m): 910 lux (85 footcandles)
At a Throw Distance of 50.0' (15.2 m) with Field Diameter 20.7/28.1' (6.3/8.6 m): 582 lux (54 footcandles)
With WFL Lens
At a Throw Distance of 8' (2.4 m) with Field Diameter 5.3/7.6' (1.6/2.3 m): 7,950 lux (739 footcandles)
At a Throw Distance of 16.0' (4.9 m) with Field Diameter 10.6/15.3' (3.2/4.7 m): 1,987 lux (185 footcandles)
At a Throw Distance of 24.0' (7.3 m) with Field Diameter 15.8/22.9' (4.8/7.0 m): 883 lux (82 footcandles)
At a Throw Distance of 30.0' (9.1 m) with Field Diameter 19.8/28.6' (6.0/8.7 m): 565 lux (53 footcandles)
| | Weight | 7.5 lb (3.4 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 11.0" |
