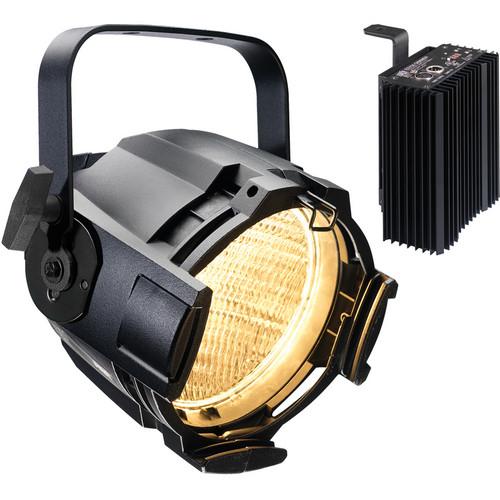

User Manual for ETC Source Four PAR Enhanced Aluminum with Dimmer Click to enlarge the picture
Contents of the user manual for the ETC Source Four PAR Enhanced Aluminum
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four PAR Enhanced Aluminum contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description This Black Source Four PAR Enhanced Aluminum with Dimmer and Twist Lock Connector from ETC offers power, elegance, and efficiency. It has a rugged, die-cast aluminum construction and features Source Four's optical technology. The Source Four PAR EA delivers a smooth and even field. 575 Watt Source Four PAR's produce as much light as typical 1000W PAR64 lights. This saves about 40% on energy and provides maximum brightness in wash lighting. This fixture is rated for up to 750W HPL lamps. Changing beam angles is easy as the Source Four PAR EA comes with a set of 4 snap-in lenses that mount in a cool, rotating ring. The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, this Source Four PAR Luminaire is well suited for touring. This Source Four PAR EA Luminaire also comes with an integrated dimmer.The Source Four Dimmer delivers high-performance in tungsten-lighting applications. Using the ES (Electronic Silent) technology and a convection-cooled design, this high-performance dimmer can be placed in acoustically-sensitive venues. By directly taking DMX control signals, this self-dimming tungsten fixture resides alongside LEDs and moving lights, thereby allowing system designs to focus on switched power and data distribution instead of the centralized dimming systems.This dimmer can be used in applications requiring distributed dimming and position flexibility such as theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, multi-use venues such as schools and meeting rooms. Source Four PAR EA - EA (Enhanced Aluminum) reflector
- Uses Super-efficient HPL lamps
- 4 heat-resistant, molded borosilicate glass lenses are supplied with each unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL)
- Rugged die-cast aluminum construction
- Tool-free access to the reflector and lens
- High-impact, thermally insulated knobs
- Reflector temperature control through integral heat sink fins
- Gel frame holders with 2 accessory slots
- Steel yoke with 2 mounting positions
- Positive locking yoke clutch
- High-temperature 3-conductor 36" leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Compact tungsten filament contained in a krypton / xenon- filled quartz envelope
- Integral die-cast aluminum heat sink lamp base
- Thermally insulated lens ring
Dimmer ES Dimming Technology: - Produces no lamp noise (exceeds all risetime specs)
- Yoke-mount; universal-mounting bracket included
- Direct-mounting on a fixture yoke in multiple orientations to accommodate maximum flexibility
- Local Operation: One-press dim to FULL for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
- No electrical assembly required; comes as a complete kit with burner assembly
- Manufactured of epoxy-painted, aluminum body and anodized aluminum heat sink
- Electronic over-current protection
- Supports up to 32 units on one DMX line
In the Box ETC Source Four PAR Enhanced Aluminum with Dimmer (Twist Lock Connector, Black) Dimmer Universal Mounting Bracket Yoke Mount Very Narrow Spot (VNSP) Lens Narrow Spot (NSP) Lens Medium Flood (MFL) Lens Wide Flood (WFL) Lens Color Frame Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PAR Enhanced Aluminum with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PAR EA Specs | | | Socket (Lampholder) | HPL Quick eXchange Socket.
750W Maximum | | Power Connector | Grounded 20A L5-20 connector (Twist Lock) | | Voltage | 115 to 240 V, 50/60 Hz | | Illuminance | For VSNP Lens:
Candela: 382,145
Field Lumens: 9,640
Beam Lumens: 5,395
Efficiency: 44%
Lumens Per Watt: 12.9
Illuminance:
4,570 lux (425 fc) @ 30.0' (9.1 m) throw distance and 8.6' (2.6 m) field diameter
1,645 lux (153 fc) @ 50.0' (15.2 m) throw distance and 14.4' (4.4 m) field diameter
839 lux (78 fc) @ 70.0' (21.3 m) throw distance and 20.2' (6.1 m) field diameter
569 lux (53 fc) @ 85.0' (25.9 m) throw distance and 24.5' (7.5 m) field diameter
For NSP Lens:
Candela: 336,740
Field Lumens: 9,504
Beam Lumens: 5,280
Efficiency: 43.4%
Lumens Per Watt: 12.7
Illuminance:
5,799 lux (539 fc) @ 25.0' (7.6 m) throw distance and 7.4' (2.3 m) field diameter
1,790 lux (166 fc) @ 45.0' (13.7 m) throw distance and 13.3' (4.1 m) field diameter
858 lux (80 fc) @ 65.0' (19.8 m) throw distance and 19.3' (5.9 m) field diameter
566 lux (53 fc) @ 80.0' (24.4 m) throw distance and 23.7' (7.2 m) field diameter
For MFL Lens:
Candela: 135,225
Field Lumens: 9,890
Beam Lumens: 5,580
Efficiency: 45.2%
Lumens Per Watt: 13.2
Illuminance:
6,467 lux (601 fc) @ 15.0' (4.6 m) throw distance and 6.2 / 8.4' (1.9 / 2.6 m) field diameter
2,329 lux (216 fc) @ 25.0' (7.6 m) throw distance and 10.3 / 14.0' (3.2 / 4.3 m) field diameter
910 lux (85 fc) @ 40.0' (12.2 m) throw distance and 16.6 / 22.5' (5.0 / 6.9 m) field diameter
582 lux (54 fc) @ 50.0' (15.2 m) throw distance and 20.7 / 28.1' (6.3 / 8.6 m) field diameter
For WFL Lens:
Candela: 47,270
Field Lumens: 9,220
Beam Lumens: 5,240
Efficiency: 42.1%
Lumens Per Watt: 12.3
Illuminance:
7,950 lux (739 fc) @ 8.0' (2.4 m) throw distance and 5.3 / 7.6' (1.6 / 2.3 m) field diameter
1,987 lux (185 fc) @ 16.0' (4.9 m) throw distance and 10.6 / 15.3' (3.2 / 4.7 m) field diameter
883 lux (82 fc) @ 24.0' (7.3 m) throw distance and 15.8 / 22.9' (4.8 / 7.0 m) field diameter
565 lux (53 fc) @ 30.0' (9.1 m) throw distance and 19.8 / 28.6' (6.0 / 8.7 m) field diameter Photometric data measured with HPL 750W/115V lamp. | | Weight | 7.5 lb (3.4 kg) | | | | Dimmer | Suggested Breaker Sizing: 20 A | | Voltage Range | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Regulations | Input: 208 V
Output: 115 V | | Maximum Output | 750 W | | Connectors | DMX In and thru
DMX thru is not self-terminating
DMX512A/RDM In and Thru via 5-Pin XLR connectors | | Ambient Temperature | 104°F (40°C) maximum | | Humidity | Between 10 to 95%, non-condensing | | Cooling | Convection-cooled, optimum cooling when mounted with heat sink fins in vertical position | | Heat Dissipation | 171 Btu at full load | | Dimensions (HxWxL) | 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 17.5 x 17.2 x 16.25" |
