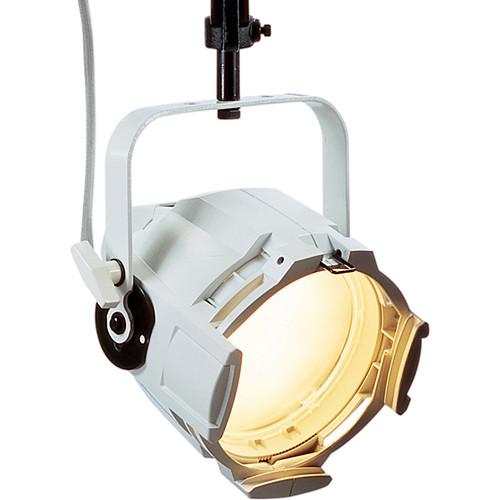

Product description The white Source Four PAR Metal Cold Mirror Fixture from ETC comprises all the power of a PAR plus the cool beam of the Source Four. Its reflector coating ensures that only light, not heat, goes out of the front of the fixture. It is designed for orchestra lighting or other performance situations where on-stage comfort is paramount.
The fixture delivers a smooth, even field, and saves energy. Changing its beam angles is easy. This Source Four PAR comes with a set of 4 snap-in lenses that mount in a cool, rotating ring. That also means no more reaching into a hot can with cracked porcelain sockets. When you need a new lamp, just use your stock of Source Four HPL lamps (no need to carry a large inventory of PAR64 lamps). The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, the Source Four PAR is suitable for touring. - Physical
- Rugged die-cast aluminum construction
Tool-free access to the reflector and lens
High-impact, thermally insulated knobs
Sealed reflector housing
Reflector temperature control through integral heat sink fins
Gel frame holders with 2 accessory slots
Top-mounted, gel-frame retainer
Steel yoke with 2 mounting positions
Positive locking yoke clutch
UL and cUL listed - Electrical
- High-temperature, 3-conductor 36" leads in a glass fiber outer sleeve
Supports ETC Dimmer Doubling technology - Lamp
- HPL lamp features a compact tungsten filament contained in a krypton/xenon-filled quartz envelope
Filament geometry makes for efficient light collection and transmission
Integral die-cast aluminum heat sink lamp base - Lenses
- Four Heat-Resistant, Molded, Borosilicate Glass Lenses Supplied with Each Unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL), and Wide Flood (WFL).
Tool-free lens changing
Thermally insulated lens ring - Optical
- Modified parabolic and multifaceted reflector
Computer designed reflector facets molded directly into heat sink casting, finished with an metal cold mirror, dichroic coating
Cold mirror, dichroic coating removes 90% heat from beam for cooler stage environment In the Box ETC Source Four PAR Metal Cold Mirror Fixture (White) Very Narrow Spot (VNSP) Glass Lens Narrow Spot (NSP) Glass Lens Medium Flood (MFL) Glass Lens Wide Flood (WFL) Glass Lens 7.5" Color Frame Dimmer Doubling Connector (NEMA L515P) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PAR Metal Cold Mirror Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PAR MCM Specs | Power | 115 to 240 V, 50/60 Hz | | Lamp | 575 W maximum | | Illuminance | With VNSP Lens
At a Throw Distance of 30.0' (9.1 m) with Field Diameter 8.2' (2.5 m): 4,180 lux (382 footcandles)
At a Throw Distance of 50.0' (15.2 m) with Field Diameter 13.7' (4.2 m): 1,479 lux (137 footcandles)
At a Throw Distance of 70.0' (21.3 m) with Field Diameter 19.2' (5.8 m): 754 lux (70 footcandles)
At a Throw Distance of 85.0' (25.9 m) with Field Diameter 23.3' (7.1 m): 512 lux (48 footcandles)
With NSP Lens
At a Throw Distance of 25' (7.6 m) with Field Diameter 7.0' (2.1 m): 5,130 lux (477 footcandles)
At a Throw Distance of 45.0' (13.7 m) with Field Diameter 12.7' (3.9 m): 1,583 lux (147 footcandles)
At a Throw Distance of 65.0' (19.8 m) with Field Diameter 18.3' (5.6 m): 759 lux (70 footcandles)
At a Throw Distance of 80.0' (24.4 m) with Field Diameter 22.5' (6.9 m): 501 lux (47 footcandles)
With MFL Lens
At a Throw Distance of 15.0' (4.6 m) with Field Diameter 6.1/8.4’ (1.9/2.5 m): 5,009 lux (465 footcandles)
At a Throw Distance of 25.0' (7.6 m) with Field Diameter 10.2/13.9’ (3.1/4.2 m): 1,803 lux (168 footcandles)
At a Throw Distance of 40.0' (12.2 m) with Field Diameter 16.3/22.3’ (5.0/6.8 m) : 704 lux (65 footcandles)
At a Throw Distance of 50.0' (15.2 m) with Field Diameter 20.4/27.8’ (6.2/8.5 m): 451 lux (42 footcandles)
With WFL Lens
At a Throw Distance of 8.0' (2.4 m) with Field Diameter 5.4/7.8' (1.7/2.4 m): 5,829 lux (542 footcandles)
At a Throw Distance of 16.0' (4.9 m) with Field Diameter 10.8/15.7' 3.3/4.8 m): 1,457 lux (135 footcandles)
At a Throw Distance of 24.0' (7.3 m) with Field Diameter 16.3/23.5' (5.0/7.2 m): 648 lux (60 footcandles)
At a Throw Distance of 30.0' (9.1 m) with Field Diameter 20.3/29.4' (6.2/9.0 m): 414 lux (39 footcandles) | | Connector | 15 A dimmer doubling connector (NEMA L515P) | | Weight | 7.5 lb (3.4 kg) | | | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 11.0" |
