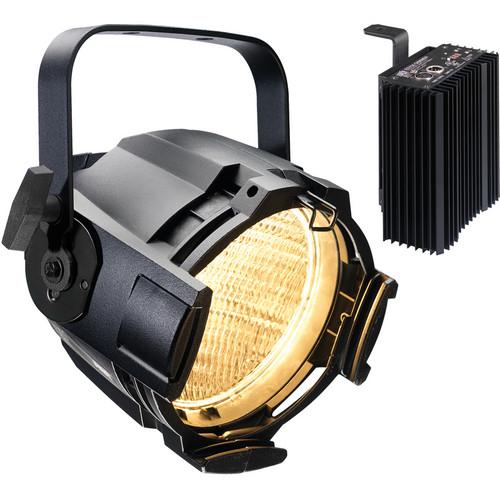

User Manual for ETC Source Four PAR Metal Cold Mirror with Dimmer Click to enlarge the picture
Contents of the user manual for the ETC Source Four PAR Metal Cold
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four PAR Metal Cold contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description This Black Source Four PAR Metal Cold Mirror with Dimmer and Edison Connector from ETC features the power of a PAR and the cool beam of the Source Four. It has a rugged, die-cast aluminum construction and features Source Four's optical technology. The reflector coating ensures that only light and not heat goes out of the front of the fixture, thereby making the Source Four PAR MCM suitable for orchestra lighting or other performance situations where on-stage comfort is needed. This Source Four PAR MCM delivers a smooth and even field. 575 Watt Source Four PAR's produce as much light as typical 1000W PAR64 lights. This saves about 40% on energy and provides maximum brightness in wash lighting. This also means no more reaching into a hot can with cracked porcelain sockets. This fixture is rated for up to 750W HPL lamps. Changing beam angles is easy as the Source Four PAR EA comes with a set of 4 snap-in lenses that mount in a cool, rotating ring. The Source Four PAR's compact design means more units can be mounted on a pipe or fit into a truck. Combined with reductions in power and cable requirements, the Source Four PAR Luminaire is well suited for touring. Source Four PAR Luminaire comes with an integrated dimmer.The Source Four Dimmer delivers high-performance in tungsten-lighting applications. Using the ES (Electronic Silent) technology and a convection-cooled design, this high-performance dimmer can be placed in acoustically-sensitive venues. By directly taking DMX control signals, this self-dimming tungsten fixture resides alongside LEDs and moving lights, thereby allowing system designs to focus on switched power and data distribution instead of the centralized dimming systems.This dimmer can be used in applications requiring distributed dimming and position flexibility such as theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, multi-use venues such as schools and meeting rooms. Source Four PAR - MCM (Metal Cold Mirror) reflector
- Uses Super-efficient HPL lamps
- 4 heat-resistant, molded borosilicate glass lenses are supplied with each unit: Very Narrow Spot (VNSP), Narrow Spot (NSP), Medium Flood (MFL) and Wide Flood (WFL)
- Rugged die-cast aluminum construction
- Tool free access to the reflector and lens
- High-impact, thermally insulated knobs
- Reflector temperature control through integral heat sink fins
- Gel frame holders with 2 accessory slots
- Steel yoke with 2 mounting positions
- Positive locking yoke clutch
- High-temperature 3-conductor 36" leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Compact tungsten filament contained in a krypton / xenon- filled quartz envelope
- Integral die-cast aluminum heat sink lamp base
- Thermally insulated lens ring
Dimmer ES Dimming Technology: - Produces no lamp noise (exceeds all risetime specs)
- Yoke-mount; universal-mounting bracket included
- Direct-mounting on a fixture yoke in multiple orientations to accommodate maximum flexibility
- Local Operation: One-press dim to FULL for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
- No electrical assembly required; comes as a complete kit with burner assembly
- Manufactured of epoxy-painted, aluminum body and anodized aluminum heat sink
- Electronic over-current protection
- Supports up to 32 units on one DMX line
In the Box ETC Source Four PAR Metal Cold Mirror with Dimmer (Edison Connector, Black) Dimmer Universal Mounting Bracket Yoke Mount Very Narrow Spot (VNSP) Lens Narrow Spot (NSP) Lens Medium Flood (MFL) Lens Wide Flood (WFL) Lens Color Frame Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PAR Metal Cold Mirror with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PAR MCM Specs | | | Socket (Lampholder) | HPL Quick eXchange Socket.
750W Maximum | | Power Connector | Parallel-blade U-ground connector (Edison) | | Voltage | 115 to 240 V, 50/60 Hz | | Photometrics | For VNSP:
Candela: 343,440
Field Lumens: 7,798
Beam Lumens: 4,203
Efficiency: 47.2%
Lumens Per Watt: 13.6
Illuminance:
4,108 lux (382 fc) @ 30.0' (9.1 m) throw distance and 8.2' (2.5 m) field diameter
1,479 lux (137 fc) @ 50.0' (15.2 m) throw distance and 13.7' (4.2 m) field diameter
754 lux (70 fc) @ 70.0' (21.3 m) throw distance and 19.2' (5.8 m) field diameter
512 lux (48 fc) @ 85.0' (25.9 m) throw distance and 23.3' (7.1 m) field diameter
For NSP:
Candela: 297,851
Field Lumens: 7,997
Beam Lumens: 4,604
Efficiency: 48.4%
Lumens Per Watt: 13.9
Illuminance:
5,130 lux (477 fc) @ 25.0' (7.6 m) throw distance and 7.0' (2.1 m) field diameter
1,583 lux (147 fc) @ 45.0' (13.7 m) throw distance and 12.7' (3.9 m) field diameter
759 lux (70 fc) @ 65.0' (19.8 m) throw distance and 18.3' (5.6 m) field diameter
501 lux (47 fc) @ 80.0' (24.4 m) throw distance and 22.5' (6.9 m) field diameter
For MFL:
Candela: 104,708
Field Lumens: 8,151
Beam Lumens: 4,808
Efficiency: 49.3%
Lumens Per Watt: 14.2
Illuminance:
5,009 lux (465 fc) @ 15.0' (4.6 m) throw distance and 6.1 / 8.4' (1.9 / 2.5 m) field diameter
1,803 lux (168 fc) @ 25.0' (7.6 m) throw distance and 10.2 / 13.9' (3.1 / 4.2 m) field diameter
704 lux (65 fc) @ 40.0' (12.2 m) throw distance and 16.3 / 22.3' (5.0 / 6.8 m) field diameter
451 lux (42 fc) @ 50.0' (15.2 m) throw distance and 20.4 / 27.8' (6.2 / 8.5 m) field diameter
For WFL:
Candela: 34,656
Field Lumens: 7,628
Beam Lumens: 4,546
Efficiency: 46.2%
Lumens Per Watt: 13.3
Illuminance:
5,829 lux (542 fc) @ 8.0' (2.4 m) throw distance and 5.4 / 7.8' (1.7 / 2.4 m) field diameter
1,457 lux (135 fc) @ 16.0' (4.9 m) throw distance and 10.8 / 15.7' (3.3 / 4.8 m) field diameter
648 lux (60 fc) @ 24.0' (7.3 m) throw distance and 16.3 / 23.5' (5.0 / 7.2 m) field diameter
414 lux (39 fc) @ 30.0' (9.1 m) throw distance and 20.3 / 29.4' (6.2 / 9.0 m) field diameter | | Dimensions (HxWxD) | 15.9" x 10.3" x 10.8" (404 x 262 x 274 mm) | | Weight | 7.5 lb (3.4 kg) | | | | Sizing | Suggested Breaker Sizing: 20 A | | Voltage Range | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Regulations | Input: 208 V
Output: 115 V | | Maximum Output | 750 W | | Connectors | DMX In and thru
DMX thru is not self-terminating
DMX512A/RDM In and Thru via 5-Pin XLR connectors | | Ambient Temperature | 104°F (40°C) maximum | | Humidity | Between 10 to 95%, non-condensing | | Cooling | Convection-cooled, optimum cooling when mounted with heat sink fins in vertical position | | Dimensions (HxWxL) | 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 17.5 x 17.2 x 16.25" |
