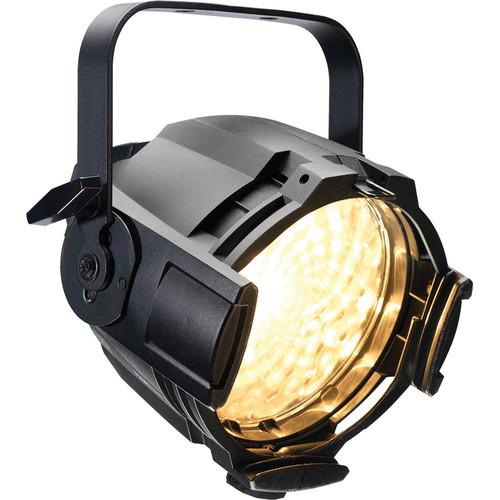

User Manual for ETC Source Four PARNel Click to enlarge the picture
Contents of the user manual for the ETC Source Four PARNel
- Product category: Stage & Studio ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Stage & Studio
|
User manual for the ETC Source Four PARNel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|
Product description The introduction of the Source Four PARNel by ETC presents a unique luminaire with the compactness of a PAR and performance of a Fresnel. The PARNel's wave-lens design renders a very even beam output with a 24 - 47° spot-to-flood range. It features die-cast construction and utilizes efficient HPL tungsten lamps up to 750W. The aluminum housing is supported by a steel yoke tapped with holes for stand or ceiling mounting. The fixture supports ETC's Dimmer Doubling technology which allows you to double the number of fixtures in your system without adding dimmer modules or running additional cable. The PARNel has three-conductor 36" leads in a glass fiber outer sleeve. No plug is included. - Construction
-
- Rugged die-cast aluminum construction
- High-impact, thermally insulated precision focus knob
- Sealed reflector housing
- Reflector temperature control through integral heat sink fins
- Gel frame holders with two accessory slots
- Top-mounted, gel-frame retainer
- Steel yoke with two mounting positions
- Positive locking yoke clutch
- UL and cUL Listed
- Lenses
-
- Patented wave lens system
- Two heat resistant borosilicate glass lenses
- One fixed wave clear lens and one rotatable wave stippled lens installed
- Tool free front lens changing
- Thermally insulated lens ring
- Lamp
-
- HPL compact tungsten filament contained in a krypton/xenon-filled quartz envelope
- 750W maximum
- Patented filament geometry makes for extremely efficient light collection and transmission
- Integral die-cast aluminum heat sink lamp base
- Electrical
-
- 115-240VAC, 50/60Hz
- High-temperature three-conductor 36" leads in a glass fiber outer sleeve
- Dimmer Doubling Technology
- ETC's Dimmer Doubling technology allows you to double the number of fixtures in your system without adding dimmer modules or running additional cable. The key to this system is the Dimmer Doubler. The Dimmer Doubler is installed between a Sensor dimmer module and two ETC Source Four 77 volt fixtures. It splits the output of a single dimmer into two, separately-controlled outputs. You can then use an ETC control console to independently control the output of the two fixtures.
- Photometrics
- Spot 24°
Beam angle: 12°, field angle: 24°
Candela: 190,390
Field lumens: 9,135
Beam lumens: 4,610
Efficiency: 41.7%
Lumens per watt: 12.2
476 fc/5,123 lux @ 20' (6.1 m) with field diameter of 8.4' (2.6 m)
155 fc/1,673 lux @ 35' (10.7 m) with field diameter of 14.7' (4.5 m)
76 fc/820 lux @ 50' (15.2 m) with field diameter of 20.9' (6.4 m)
53 fc/569 lux @ 60' (18.3 m) with field diameter of 25.1' (7.7 m)
Flood 47°
Beam angle: 29°, field angle: 47°
Candela: 47,050
Field lumens: 10,560
Beam lumens: 6,440
Efficiency: 48.2%
Lumens per watt: 14.1
471 fc/5,065 lux @ 10' (3.0 m) with field diameter of 8.7' (2.6 m)
209 fc/2,251 lux @ 15' (4.6 m) with field diameter of 13' (4.0 m)
118 fc/1,266 lux @ 20' (6.1 m) with field diameter of 17.3' (5.3 m)
52 fc/563 lux @ 30' (9.1 m) with field diameter of 26' (7.9 m) In the Box ETC Source Four PARNel Color Frame Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PARNel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PARNel Specs | Rating | 750W | | Socket (Lampholder) | G9.5 Heat sink | | Lens (Condenser) | 2x Borosilicate glass lenses:
1x fixed wave clear, 1x rotatable wave stippled | | Reflector | Parabolic, multifaceted reflector | | Mount | 3x Taps for ceiling or stand mounting | | Focusing | 24 - 47° spot to flood adjustment | | Yoke | Steel yoke with two mounting positions | | Cable | 3-Conductor 36" (91.4 cm) leads in glass fiber outer sleeve | | Power Requirements | 115-240VAC, 50/60Hz | | Dimensions | Including yoke: 15.9 x 10.3 x 10.8" (40.4 x 26.2 x 27.4 cm) | | Weight | 8.0 lb (3.6 lb) | | | | Box Dimensions (LxWxH) | 12.0 x 11.0 x 11.0" |
