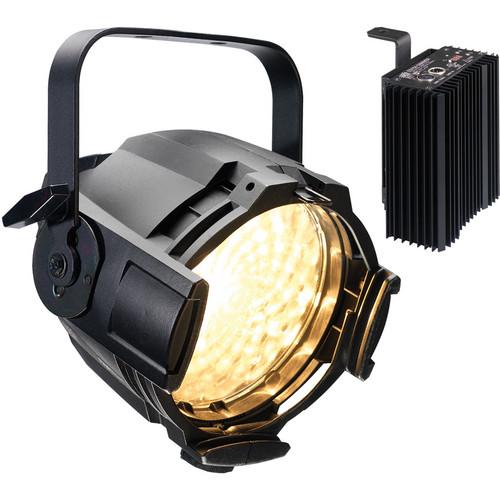

Product description This Black Source Four PAR PARNel with Dimmer and Bare Power Lead from ETC features a wave-lens design and easy focusing knob. It lets you quickly access a range of 25 to 45º, a smooth, soft, and symmetrical field that you can spot or flood as needed. It delivers Fresnel-like functionality and the performance of a Source Four PAR. The Source Four PARNel comes with an integrated dimmer.The Source Four Dimmer delivers high-performance in tungsten-lighting applications. Using the Electronic Silent (ES) technology and a convection-cooled design, this high-performance dimmer can be placed in acoustically-sensitive venues. By directly taking DMX control signals, this self-dimming tungsten fixture resides alongside LEDs and moving lights, thereby allowing system designs to focus on switched power and data distribution instead of the centralized dimming systems.This dimmer can be used in applications requiring distributed dimming and position flexibility such as theaters, hybrid incandescent, LED and discharge systems, industrial productions, rentals, conference and exhibition centers, multi-use venues such as schools and meeting rooms. Source Four PAR - Enhanced aluminum reflector with patented wave lens-system delivers Fresnel-like functionality with PAR level light output
- Uses Super-efficient HPL lamps
- 25 to 45º variable field focus
- Easy spot-to-flood adjustment and high-impact, thermally insulated precision focus knob
- Die-cast faceted reflector
- Rugged die-cast aluminum construction
- Reflector temperature control through integral heat sink fins
- Gel frame holders with 2 accessory slots
- Steel yoke with 2 mounting positions
- Positive locking yoke clutch
- High-temperature 3-conductor 36" leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
- Compact tungsten filament contained in a krypton / xenon- filled quartz envelope
- Patented filament geometry makes for extremely efficient light collection and transmission
- 2 heat resistant borosilicate glass lenses
- One fixed wave clear lens and one rotatable wave stippled lens installed
- Thermally insulated lens ring
- Integral 24 to 47° spot to flood adjustment
- Modified parabolic and multifaceted reflector
- Computer designed reflector facets directly molded into heat sink casting, finished with an enhanced aluminum deposition process and polished for maximum reflectance
Dimmer ES Dimming Technology: - Produces no lamp noise (exceeds all risetime specs)
- Local Operation: One-press dim to FULL for easy focusing (press again to release to DMX input)
- Up and down level control
- Returns to previous level after power loss
- No electrical assembly required; comes as a complete kit with burner assembly
- Electronic Silent technology for operation free of dimmer- and lamp-filament noise
- Manufactured of epoxy-painted, aluminum body and anodized aluminum heat sink
- Electronic over-current protection
- Supports up to 32 units on one DMX line
In the Box ETC Source Four PARNel with Dimmer (Bare Power Lead, Black) Dimmer Universal Mounting Bracket Yoke Mount Color Frame Limited 3-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four PARNel with Dimmer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four PARNel Specs | | | Socket (Lampholder) | HPL Quick eXchange Socket.
750W Maximum | | Power Connector | None (Bare Leads) | | Voltage | 115 to 240 V, 50/60 Hz | | Photometrics | For Spot Focus:
Candela: 190,390
Field Lumens: 9,135
Beam Lumens: 4,610
Efficiency: 41.7%
Lumens Per Watt: 12.2
Illuminance:
5,123 lux (476 fc) @ 20.0' (6.1 m) throw distance and 8.4' (2.6 m) field diameter
1,673 lux (155 fc) @ 35.0' (10.7 m) throw distance and 14.7' (4.5 m) field diameter
820 lux (76 fc) @ 50.0' (15.2 m) throw distance and 20.9' (6.4 m) field diameter
569 lux (53 fc) @ 60.0' (18.3 m) throw distance and 25.1' (7.7 m) field diameter
For Flood Focus
Candela: 47,050
Field Lumens: 10,560
Beam Lumens: 6,440
Efficiency: 48.2%
Lumens Per Watt: 14.1
Illuminance:
5,065 lux (471 fc) @ 10.0' (3.0 m) throw distance and 8.7' (2.6 m) field diameter
2,251 lux (209 fc) @ 15.0' (4.6 m) throw distance and 13.0' (4.0 m) field diameter
1266 lux (118 fc) @ 20.0' (6.1 m) throw distance and 17.3' (5.3 m) field diameter
563 lux (52 fc) @ 30.0' (9.1 m) throw distance and 26.0' (7.9 m) field diameter | | Dimension (DxWxH) | 10.8 x 10.3 x 15.9" (274.0 x 262.0 x 404.0 mm) | | Weight | 8.0 lb (3.6 kg) | | | | Sizing | Suggested Breaker Sizing: 20 A | | Voltage Range | 85 to 140 V, 180 to 260 V | | Frequency Range | 47 to 63 Hz | | Regulations | Input: 208 V
Output: 115 V | | Maximum Output | 750 W | | Connectors | DMX In and thru
DMX thru is not self-terminating
DMX512A/RDM In and Thru via 5-Pin XLR connectors | | Ambient Temperature | 104°F (40°C) maximum | | Humidity | Between 10 to 95%, non-condensing | | Cooling | Convection-cooled, optimum cooling when mounted with heat sink fins in vertical position | | Heat Dissipation | 171 Btu at full load | | Dimensions (HxWxL) | 6.50 x 3.57 x 7.35" (165.10 x 90.68 x 186.69 mm) | | Weight | 4.0 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 17.5 x 17.2 x 16.25" |
