User Manual for ETC Source Four Zoom Ellipsoidal Spotlight, Black, 15 Amp Twist-Lock - 15-30 Degrees Click to enlarge the picture
Contents of the user manual for the ETC Source Four Zoom Ellipsoidal Spotlight,
- Product category: Architectural Lights ETC
- Brand: ETC
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ETC Architectural Lights
|
User manual for the ETC Source Four Zoom Ellipsoidal Spotlight, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ETC product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ETC user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ETC product will considerably shorten its lifespan!
|

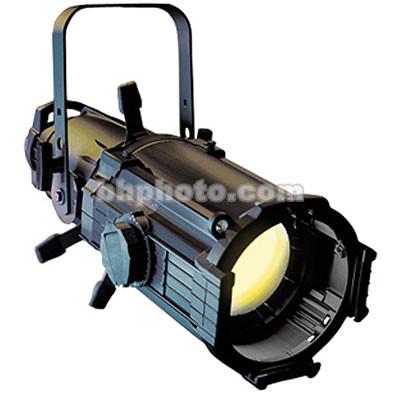

Product description With the ETC Source Four 15-30° Zoom Ellipsoidal Spotlight only one fixture is needed for a variety of field angles. ETC's patented one-handed zoom operation makes adjustments quick, simple and safe. A technician can focus with one hand and hold the ladder with the other. The lens-tube door provides quick, tool-free access when cleaning the lens assembly. This Black, 15 Amp Twist-Lock model has all the advantages of the revolutionary fixed-focus Source Four: bright, even field, cool beam, and amazing efficiency. The patented dichroic mirror disperses heat; shutters and accessories stay cool. Drop-in accessories are interchangeable with the fixed-focus
Source 4 models. Other models in this and the wider 25-50° zoom range are available:
Edison plug, Stage Pin, 20 Amp Twist-Lock, and Pigtail. When fitted with a 750 watt HPL bulb (available separately), this fixture will provide a beam of 117 footcandles 14.5 ft in diameter, from a distance of 55 ft, @ 15° zoom. It will throw a beam of
54 footcandles 24.1 ft in diameter from 45 ft, @ 50° zoom. - Cool-Running
- Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
- Solid Construction
- Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
- Efficient Use of Energy
- The special HPL bulb and borosilicate reflector provide more lumens per watt: at 575 watts the Source Four literally outshines other brands' 1000W ellipsoidals. At 750 watts, no other ellipsoidal can compare to this fixture.
- Versatile
- The steel yoke has 2 mounting position choices.
Fixture has 2 accessory slots, and a top-mounted gel frame retainer.
Other focusing tubes are available.
An optional iris is available. - Scale Markings
- Field angle and focus settings are provided on the fixture.
- Easy Calibration
- Tool-free lamp centering and peak/flat adjustment knobs are built in.
For detailed instructions, Click Here.ydfsqqzqttxysuvfwrcyyw - Multi-Voltage
- Functions with 115-240 AC Voltage, with the appropriate optional bulb and power plug.
UL and cUL Listed. - Supports ETC Dimmer Doubling Technology
- The patented, optional Dimmer Doubler allows two lighting fixtures to operate independently using only one dimmer.
In the Box ETC Source Four Zoom Ellipsoidal Spotlight, Black, 15 Amp Twist-Lock - 15-30 Degrees (115-240V AC) Integral Shutter Blades Yoke and C-Clamp 3' Power Cord with Fiberglass Sheath, 15 Amp Twist-Lock 15-30° Black Lens Tube with Lens Gel Frame 2 Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Source Four Zoom Ellipsoidal Spotlight, Black, 15 Amp Twist-Lock - 15-30 Degrees in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC Source Four Zoom Specs | Rating | 375, 575, 750 Watts | | Socket (Lampholder) | G9, Heat Sink bi-pin | | Lens (Condenser) | Plano-convex front, 2 Bi-convex rear lenses | | Reflector (Mirror) | Faceted borosilicate aluminum, multi-layer dichroic coating | | Mounting | M12 hole with C-clamp, safety cable optional | | Yoke | Twin flat blade steel fork, 2 mounting positions | | Cable | 3', fiberglass sheath, 15A Twist-Lock | | Focusing | 15-30° Tube, Stainless steel shutters | | Weight | 23.3 lb (10.6 kg) with C-Clamp | | Dimensions | 29 x 21.3 x 13" (74.9 x 54.1 x 34 cm) with C-Clamp | | | | Package Weight | 25.6 lb | | Box Dimensions (LxWxH) | 32.25 x 10.5 x 10.5" |
