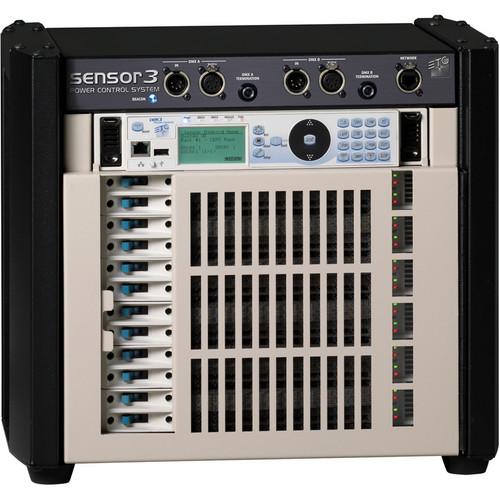

Product description The ETC SP3 1220B Sensor3 is a compact, 6-module dimmer rack designed for traveling productions, stages and smaller venues that still require sophisticated lighting control and reliable, controllable power. With up to 100A of through-put the SP3 1220B rack enables control over twelve 20A stage pin outputs. The on-board CEM3 controller, with intuitive control interface enables the user to quickly configure each dimmer module's output and to rapidly link with the rest of the system. The CEM3 has ETC Net3, ANC and sANC compliance built-in so the user has full awareness of how the system is performing. If a lamp fails, the operator will know.
A full range of Sensor dimmers of varying amperages is available; the user can mix and match as desired and the durable chassis is designed for frequent and quick, tool-free reconfiguration when needed. When installed, optional Advanced Feature dimmers allow for vital feedback as to power consumption, voltage stability, operating temperature and other essential information that will help ensure a reliable, controlled power supply. The SP3 1220B can easily be configured to run on single or 3-phase power according to required output.
All ETC Sensor racks are designed for quiet, fan-cooled operation but, should the need arise, there is an optional cooling module with additional fans available. - CEM3 Control Electronics Module
- - Easy, intuitive scroll wheel and keypad input with graphic display for control of up to 6 dual-dimmer modules
- Basic menu structure for simple DMX operation
- Advanced configuration editing built into pack
- Direct Ethernet control signal input (Net3, sACN) as well as 2 DMX512-A inputs
- Standard reporting and configuration networking
- Optional Advanced Features (AF) reporting
- Supports ETC Dimmer Doubling - Thermal
- - High efficiency cooling system with airflow sensor
- Electrostatic air filter
- Low-noise fan for quiet operation
- Ambient temperature range: 32 to 104°F (0 to 40°C) - Tool-Free Module Installation
- - All modules can be installed or removed without the use of tools. Modules are keyed so it is impossible to install an inappropriate module into a rack
- Compatible Dimmer Modules
- Standard Modules
- D15 Dual 15A Dimmer Module - 350μs
- D15E Dual 15A Dimmer Module - 500μs
- D20 Dual 20A Dimmer Module - 350μs
- D20E Dual 20A Dimmer Module - 500μs
Advanced Feature Modules
- D15AF Dual 15A Dimmer Module - 500μs
- D20AF Dual 20A Dimmer Module - 500μs
- D20DHR Dual 20A Dimmer Module - 800μs
- D20HR Single 20A Dimmer Module - 1000μs
- D50AF Single 50A Dimmer Module - 500μs
- D50HR Double high 50A Dimmer Module - 800μs
- D100AF Double high 100A Dimmer
Special Purpose Modules
- ELV10 Dual 10A Electronic Low Voltage Dimmer Module
- D15F Single 15A Fluorescent Dimmer Module
- D20F Single 20A Fluorescent Dimmer Module
- R15 Dual 15A Relay Module
- R20 Dual 20A Relay Module
- R15AF Dual 15A Relay Module - Advanced Features
- R20AF Dual 20A Relay Module - Advanced Features
- CC15 Dual 15A Constant Current Module
- CC20 Dual 20A Constant Current Module
- AFM Air Flow Module - Cam-lok Power Connectors
- - Durable, industry standard for heavy, three-phase power through-put
- Options
- - Advanced Features (AF) dimmer-specific output reporting - requires Advanced Features (AF) dimmer modules
- Custom output panels can be fabricated by contacting ETC directlybr> - Cam-Lok Pass Thru Panel
- Castered Cart In the Box ETC SP3-1220B Sensor3 Portable Rack Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC SP3-1220B Sensor3 Portable Rack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC SP3-1220B Specs | Control Input | 2 x DMX In Connectors
2 x DMX Out Connectors
1 x Cat 5 RJ45 | | Electrical | Operating Voltages: Single-phase 120/240 VAC Three-phase 120/208 VAC Line feed voltage range 91-139 VAC
Power frequencies 47-53; 57-63 Hz | | Construction | Aluminum
Scratch resistant paint | | Output Connections | 12 x 20A Stage Pin Connectors | | Operating Temperature / Humidity | 32 to 104°F (0 to 40°C)
Relative humidity: 10-90% non-condensing | | Environmental Standards | UL, cUL standards: UL508 | | Dimensions | 17.5 x 15.3 x 12.5" (44.5 x 38.0 x 32.0 cm) | | Weight | 70-90 lb (32-41 kg) depending on customization |
