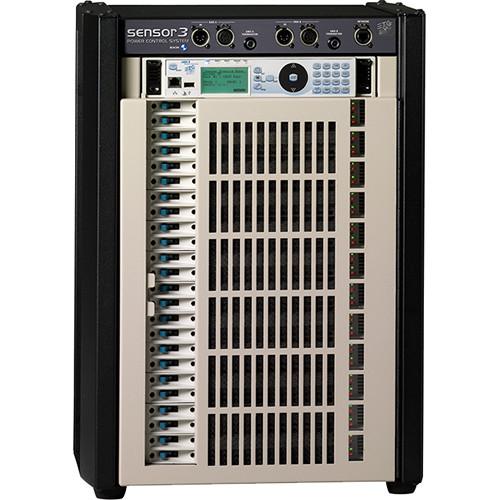

Product description The ETC SP3-2420B 24 x 20A Portable Dimming Pack with Stage Pin Connectors offers powerful digital dimming for small-scale portable applications. Features include 12 modules for up to 24 dimmers, DMX control, 120-240 VAC to three-phase 120-208 VAC operation and CEM3 power control. - Applications
-
- Digital dimming for traveling companies
- Professional black-box or seasonal theater
- Solo and ensemble music tours
- Dance and performance art tours
- Television studio and film productions
- Convention and conference centers
- Attributes
-
- Rugged industrial construction
- Three-phase or single-phase switchable
- Cam-Lok power input connectors
- Flexible load connection options
Twist-Lock (GTL)
Stage Pin
Multi-pin
Edison - CEM3 Control Electronics Module standardBasic menu structure for simple DMX operation
Advanced configuration editing built into pack
Direct Ethernet control signal input (Net3, sACN) as well as two DMX512-A inputs
Standard reporting and configuration networking
Optional Advanced Features (AF) reporting
Supports ETC dimmer doubling - All packs UL and cUL Listed
- General
-
- 12 Modules, 24 dimmers maximum
- Underwriters Laboratories cUL marked, tested and listed
- Complies with ESTA DMX512-A standard
- Mechanical
-
- Rugged aluminum construction
- Fine-textured, scratch-resistant, gray and black epoxy paint
- No tools required for module removal or installation
- Keyed module slots prevent insertion of inappropriate module types
- Thermal
-
- High efficiency cooling system with airflow sensor
- Easily cleaned electrostatic air filter
- Low-noise fan for quiet operation
- Ambient temperature: 32-104°F (0-40°C)
- Electrical
-
- Easily switches from single-phase 120-240 VAC to three-phase 120-208 VAC operation
- Cam-Lok power input connectors
- Cam-Lok pass thru connectors available
- Max pass thru bus rating: 200A
- Line feed voltage range is 91-139 VAC
- Power frequencies from 47-53 / 57-63 Hz
- Electronics
-
- CEM3 power control
- Full number pad for fast access to dimmer override and setup
- Graphic backlit display
- Standard diagnostic reporting
- Options
- Advanced Features (AF) dimmer-specific output reporting with optional AF modules
- Custom output panels
- Cam-Lok Pass Thru Panel
- Stage Pin, Edison or Twist-Lock or 19-pin Multi-pin output connector options
- Castered cart
In the Box ETC SP3-2420B 24 x 20A Portable Dimming Pack with Stage Pin Connectors Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC SP3-2420B 24 x 20A Portable Dimming Pack with Stage Pin Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC 7142A1102-1 Specs | Material | Aluminum construction
Scratch-resistant, gray and black epoxy paint | | Ratings | 12 Modules, 24 dimmers maximum | | Cooling | Low noise fan | | Connectors | Edison
2x 5-Pin XLR Input (DMX) | | Control | CEM3 power control
Full number pad for fast access to dimmer override and setup
Graphic backlit display
DMX512-A
Direct Ethernet control signal input (Net3, sACN) | | Dimmer | 100-0% Dimming via DMX | | Voltage | Switches from single-phase 120-240 VAC to 3-phase 120-208 VAC operation
Line feed: 91-139 VAC
Power frequencies: 47-53 / 57-63 Hz
Max. pass thru bus rating: 200 A | | Operating Conditions | Temperature: 32-104°F (0-40°C) Maximum
Humidity: 10-90% non-condensing | | Certification and Compliance | cUL marked, tested, listed to UL508 (File: E152039) standard
Complies with ESTA DMX512-A standard | | Dimensions | 24 x 17.5 x 12.6" (610 x 445 x 321 mm) | | Weight | 110 - 130 lb (50 - 59 kg) | | | | Box Dimensions (LxWxH) | 69.0 x 19.0 x 14.0" |
