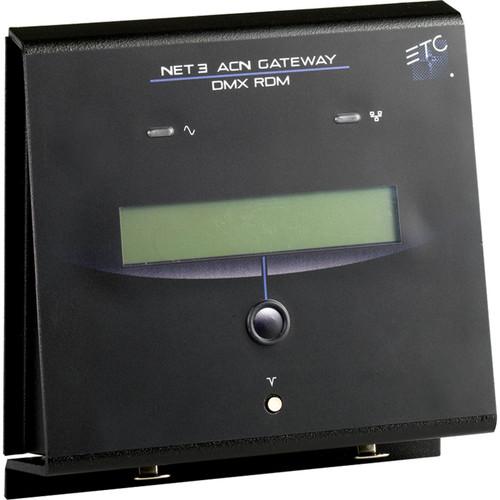

Product description Reap the benefits of networking your lighting with the DMX/RDM Two-Port Gateway from ETC. Connected via Ethernet to a network switch, just like all other devices in the network, the gateway uses two 5-pin XLR outputs to communicate with two lines of up to 32 DMX-compatible devices each, supporting a full DMX512 universe on each line. Remote Device Management (RDM) allows for bi-directional communication between your controller and any RDM-compliant devices in your setup without getting in the way of standard DMX devices that do not recognize the RDM protocol.
The Gateway can be powered by PoE via the network connection, or by use of an external DC power supply (available separately). Use a standard two-gang back box (available separately) for flush-mounting, or the included ETC connectorized surface-mount back box for touring installations. - Supports Net3 protocol powered by ACN
- LCD displays labeling, status, and configuration information
- Power and network activity LED indicators
- Configurable using Network Software utility (GCE/NCE) or directly from ACN
- Termination switches on rear panel
In the Box ETC Two-Port DMX/RDM Output Touring Gateway Hanging Bracket Connectorized Back Box Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ETC Two-Port DMX RDM Output Touring Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersETC N32G Specs | | | Ports | 2 x 5-pin XLR female output
Up to 512 DMX addresses per port | | Fault Voltage | Withstands up to 250 VAC | | Termination | Integrated DMX/RDM termination | | | | Power Consumption | 5 W (max) | | External Power Supply | 8 to 28 VDC | | | | Maximum Delay Time | Not greater than one packet time (input to output) | | Refresh Rate | Up to 40 Hz | | | | Data Distribution | DMX over Ethernet | | Certification | CE, RoHS, ETL-listed | | | | Material | 16-gauge cold-rolled steel
Casing: Scratch-resistant powder-coat finish | | Other Ports | 1 x RJ45
1 x 2-pin DC power input | | Indicators & Controls | Menu button
Reset button
Power and data indicators | | LCD Display | Gateway identification
Network configuration
DMX port configuration
DMX port status
RDM configuration | | | | Supports | Net3/ACN (ANSI E1.31 and E1.17)
RDM (ANSI E1.20)
USITT DMX512-A (ANSI E1.11) | | Compliant | USITT DMX512 and ANSI E1.11 DMX512-A
IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX, and 802.3af for PoE | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -40 to 158°F (-40 to 70°C) | | Humidity | 5 to 95%, non-condensing | | | | Dimensions | 6.47 x 4.88 x 5.41" (16.43 x 12.40 x 13.74 cm) | | Weight | 3.9 lb (1.8 kg) | | | | Box Dimensions (LxWxH) | 11.4 x 10.6 x 7.5" |
