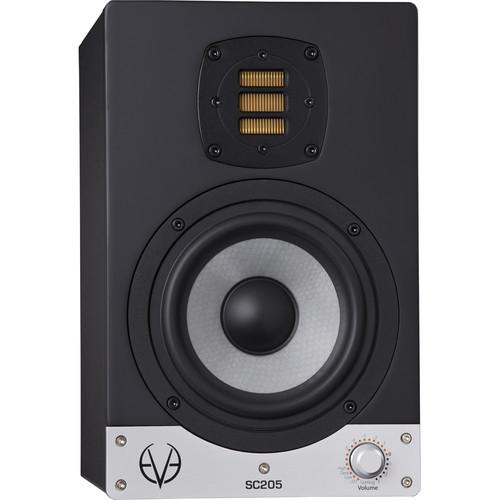

User Manual for Eve Audio SC205 - 5" Two-Way Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Eve Audio SC205 - 5" Two-Way
- Product category: Studio Monitors Eve Audio
- Brand: Eve Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eve Audio Studio Monitors
|
User manual for the Eve Audio SC205 - 5" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eve Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eve Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eve Audio product will considerably shorten its lifespan!
|
Product description The SC205 from EVE Audio is a two-way active studio monitor for your home or professional studio. Equipped with a bi-amplifier with a short-term total output of 100W for powering its 5" woofer and an AMT RS1 tweeter, the SC205 is designed to offer maximum headroom with minimal distortion.
The SC205's custom-made 5" SilverCone woofer, which is driven by a 1.5" voice coil, provides bass frequency response down to 53 Hz. The speaker's compact size makes it suitable for smaller listening environments, and you can mount the SC205 on a regular microphone or speaker stand by way of the threaded screw inserts on the bottom. There are also threaded screw inserts on the back for wall mounting using the optional adapter plate.
The SC205 also features both balanced XLR inputs and unbalanced RCA inputs for flexible connectivity, and a selector knob on the front that gives access to volume control and filter settings to help you tailor your monitors to the way you work. - DSP
- One push knob operation gives access to DSP-based volume control and filter settings via high quality A/D converter (24bit/192 kHz) from Burr-Brown
- Bass Port Design
- Large rear rectangular port with no hard edges for high efficiency on lower frequencies
In the Box Eve Audio SC205 - 5" Two-Way Active Studio Monitor (Single) Power Cord Limited 1-Year Warranty Quick start Guide PDF 380.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Eve Audio SC205 - 5" Two-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEve Audio SC205 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 100 W | | Drivers | HF Driver: 1 x / Air Motion Transformer
LF Driver: 1 x 5" / 130 mm Woofer | | Amplification | HF Amplifier: Rated at 50 W
LF Amplifier: Rated at 50 W | | | | Frequency Range | 53 Hz to 21 kHz | | Maximum Sound Pressure Level (SPL) | 101 dB | | Protections and Limiting | Limiter | | | | Crossover Frequency | 3 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input (10 kOhms) | | | | Power Consumption | 1 W (Standby)
70 W (Maximum) | | | | Dimensions (W x H x D) | 6.9 x 10.8 x 9.2" / 175.0 x 275.0 x 233.0 mm | | Weight | 11.0 lb / 5.0 kg | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 15.1 x 12.8 x 10.4" |
