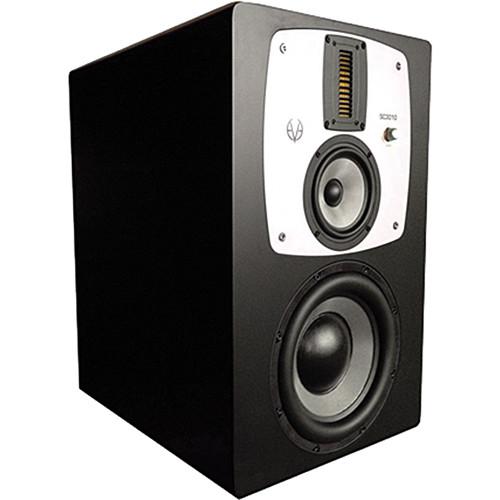

User Manual for Eve Audio SC3010 - 10" Three-Way Active Main Monitor Click to enlarge the picture
Contents of the user manual for the Eve Audio SC3010 - 10" Three-Way
- Product category: Studio Monitors Eve Audio
- Brand: Eve Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eve Audio Studio Monitors
|
User manual for the Eve Audio SC3010 - 10" Three-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eve Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eve Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eve Audio product will considerably shorten its lifespan!
|
Product description The SC3010 from EVE Audio is a three-way active main monitor designed for recording and mastering studios, film and television post-production facilities, cinema applications and in-wall installations. Equipped with three amplifiers--which combine for a short-term total output of 1000W to power its 10" woofer, 5" mid-range driver and AMT RS6 tweeter--the SC3010 is designed to offer maximum headroom with minimal distortion.
To increase efficiency, the SC3010's custom-made 10" SilverCone woofer provides bass frequency response down to 30 Hz, while the 5" mid-range driver extends up through 1800 Hz. The SC3010 also makes use of the proprietary AMT RS6 HF driver, which uses a large front plate and internal magnet to drive the tweeter with greater efficiency.
For flexible positioning, the silver module located in the middle of the speaker that houses the mid-range woofer and the tweeter can be rotated 90-degrees, allowing the speakers to be positioned either horizontally or vertically. This helps to preserve control room sight lines and may further optimize acoustic performance.
The SC3010 also features both balanced XLR inputs and unbalanced RCA inputs for flexible connectivity, and a selector knob on the front that gives access to volume control and filter settings to help you tailor your monitors to the way you work. - DSP
- One push knob operation gives access to DSP-based volume control and filter settings via high quality A/D converter (24bit/192 kHz) from Burr-Brown
- Bass Port Design
- Large rear rectangular port with no hard edges for high efficiency on lower frequencies
In the Box Eve Audio SC3010 - 10" Three-Way Active Main Monitor (Single) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eve Audio SC3010 - 10" Three-Way Active Main Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEve Audio SC3010 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x / Air Motion Transformer
LF Driver: 1 x 10" / 250 mm Woofer
MF Driver: 1 x 5" / 130 mm Cone | | Amplification | HF Amplifier: Rated at 250 W
MF Amplifier: Rated at 250 W
LF Amplifier: Rated at 800 W | | | | Frequency Range | 29 Hz to 21 kHz | | Maximum Sound Pressure Level (SPL) | 114 dB | | Protections and Limiting | Limiter | | | | Crossover Frequency | Low-Pass Frequency: 240 Hz
High-Pass Frequency: 1.8 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input (10 kOhms) | | | | Power Consumption | 1 W (Standby)
1000 W (Maximum) | | | | Dimensions (W x H x D) | 15.0 x 22.8 x 17.3" / 380.0 x 580.0 x 440.0 mm | | Weight | 81.6 lb / 37.0 kg |
