User Manual for Eve Audio SC307 - 6.5" Three-Way Active Studio Monitor Click to enlarge the picture
Contents of the user manual for the Eve Audio SC307 - 6.5" Three-Way
- Product category: Studio Monitors Eve Audio
- Brand: Eve Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eve Audio Studio Monitors
 |
User manual for the Eve Audio SC307 - 6.5" Three-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eve Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eve Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eve Audio product will considerably shorten its lifespan!
|

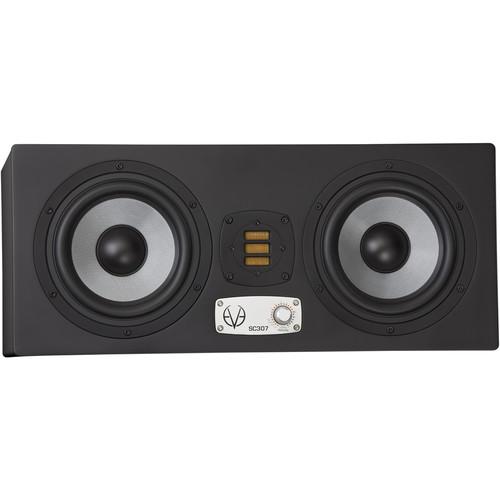

Product description The SC307 from EVE Audio is a three-way active studio monitor for your home or professional studio. Equipped with three amplifiers with a short-term total output of 250W to power its two 6.5" woofers and AMT RS2 tweeter, the SC307 is designed to offer maximum headroom with minimal distortion.
To increase efficiency, one of the SC307's custom-made 6.5" SilverCone woofers provides bass frequency response from 40 to 300 Hz, while the other provides a fuller range up to 3000 Hz. The SC307 also makes use of the proprietary AMT RS2 HF driver, which uses a large front plate and internal magnet to drive the tweeter with greater efficiency.

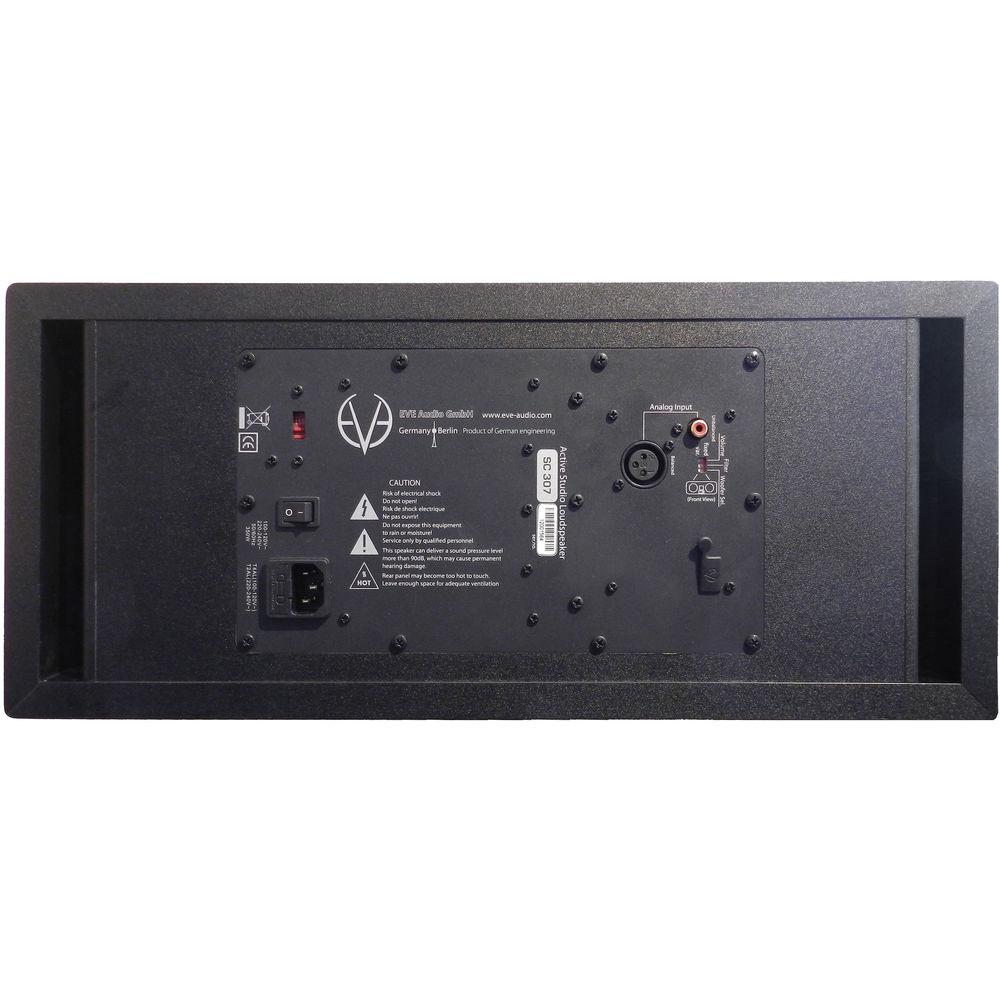

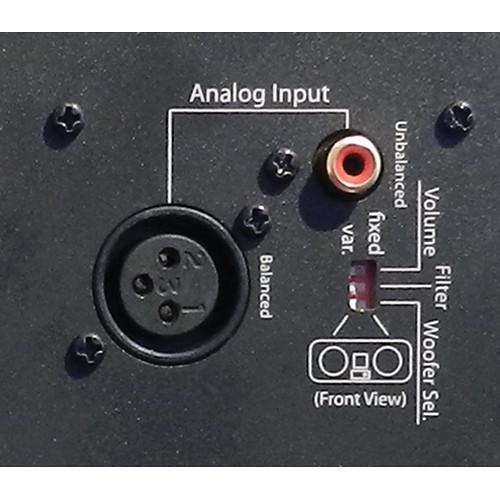

The SC307 also features both balanced XLR inputs and unbalanced RCA inputs for flexible connectivity, and a selector knob on the front that gives access to volume control and filter settings to help you tailor your monitors to the way you work. - DSP
- One push knob operation gives access to DSP-based volume control and filter settings via high quality A/D converter (24bit/192 kHz) from Burr-Brown
- Bass Port Design
- Large rear rectangular port with no hard edges for high efficiency on lower frequencies
In the Box Eve Audio SC307 - 6.5" Three-Way Active Studio Monitor (Single) Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eve Audio SC307 - 6.5" Three-Way Active Studio Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEve Audio SC307 Specs | | | Monitor Type | Active 3-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x / Air Motion Transformer
MF Driver: 1 x 6.5" / 130 mm Cone
LF Driver: 1 x 6.5" / 130 mm Woofer | | Amplification | HF Amplifier: Rated at 50 W
MF Amplifier: Rated at 100 W
LF Amplifier: Rated at 100 W | | | | Frequency Range | 40 Hz to 21 kHz | | Maximum Sound Pressure Level (SPL) | 114 dB | | Protections and Limiting | Limiter | | | | Crossover Frequency | Low-Pass Frequency: 300 Hz
High-Pass Frequency: 2.8 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x RCA Unbalanced Analog Input (10 kOhms) | | | | Power Consumption | 1 W (Standby)
120 W (Maximum) | | | | Dimensions (W x H x D) | 19.7 x 8.5 x 12.2" / 500.0 x 215.0 x 310.0 mm | | Weight | 27.3 lb / 12.4 kg |
