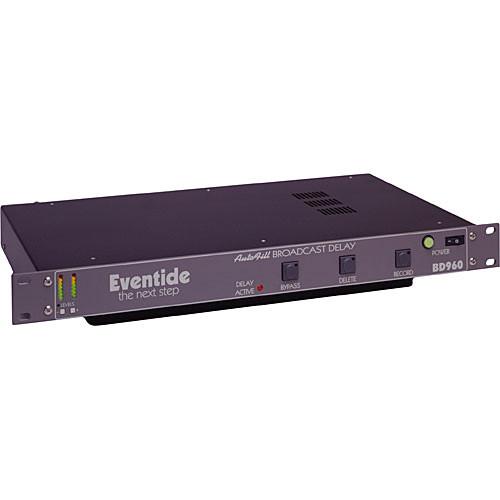

User Manual for Eventide BD960 Broadcast Audio Delay Click to enlarge the picture
Contents of the user manual for the Eventide BD960 Broadcast Audio Delay
- Product category: Broadcast Processors Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Broadcast Processors
|
User manual for the Eventide BD960 Broadcast Audio Delay contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|
Product description The BD960 Broadcast Audio Delay from Eventide is designed to delay broadcast audio for obscenity control over the radio. It can be used to prevent obscenities being uttered over the air by delaying programming for up to 8 seconds and fill the time with silence or recorded audio. - Bypass Function
- Bypass function allows the broadcast to operate without a delay or any fill control.
- Manual
- Manual control is offered to the user through the Delete function; when the operator hears an offensive word, the delete button can be pressed and held for a length similar to the delay time. The audio after the delay will be the first to hit the airwaves.
- Call Interrupt
- This device can be installed so when operating in a "call-in" situation when the delete button is pressed the caller is disconnected.
- Fill Selection
- The user can record fill audio to take the place of offensive material or select silence. The selected fill will happen automatically when the delete button is activated.
- Input Levels
- Input levels can be adjusted to work within studio parameters; the supplied LED level meters are used for level reference.
- Remote Operation
- Remote operation can be accessed via RS-232.
UPC: 840694000302 In the Box Eventide BD960 Broadcast Audio Delay Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide BD960 Broadcast Audio Delay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide BD-960 Specs | Analog Input | 2 x XLR female balanced line | | Analog Output | 2 x XLR male balanced line | | Impedance | Input: 10 kOhms bridging
Output: < 50 Ohms, balanced, for driving a 600-Ohm load | | Input Level | -6 dBm to +25 dBm, adjustable ±10 dB | | Output Drive | Output amplifier clipping level > +25 dBm | | | | Bit Rate | 24-bit | | Dynamic Range | > 100 dB | | Sampling Rate | 48 kHz | | Frequency Response | 10 Hz to 22 kHz ±1 dB | | Crosstalk | < -95 dB | | THD + N | < 0.008% | | | | Length | Up to 8 seconds stereo | | Dynamic Range | > 100 dB | | Sampling Rate | 24 kHz | | Frequency Response | 10 Hz to 11 kHz ±1 dB | | THD + N | < 0.005% | | | | Controls | Power, level up/down, bypass, delete, record | | Indicators | Power, dual 8-LED level bargraphs, bypassed, delete, record, delay | | | | Delete | 2 N/O relay contacts that close during delete | | Remote | Allows external contact closure to ground to cause | | Jack | Delete and bypass | | RS-232 | Allows simple remote control from a computer | | Temperature Range | 40 to 120°F / 4 to 49°C | | Power Requirement | 100 to 240 VAC, 25 W universal power supply | | Dimensions (W x H x D) | 19.00 x 1.75 x 10.50" / 48.26 x 4.45 x 26.67 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 13.55 lb | | Box Dimensions (LxWxH) | 22.3 x 18.0 x 8.3" |
