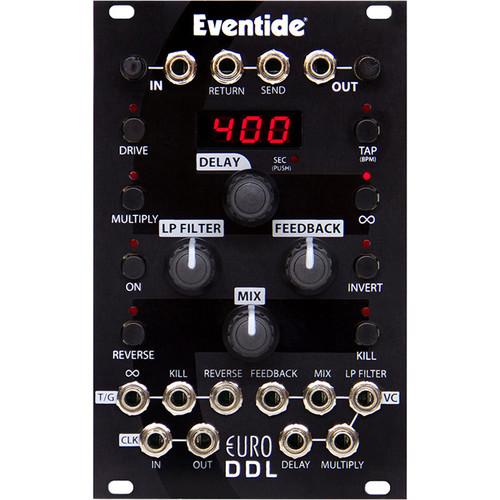

Product description With an analog heart and soul, the Eventide EuroDDL is a hybrid digital/analog delay in a 16-HP Eurorack format. The EuroDDL strictly limits the amount of digital circuitry to only what's required for the delay. Soft saturation clipping, low pass filter, feedback, insert loop, and +20 dB boost are all analog. All controls can be controlled via the 1/8" CV and trigger inputs. Additionally, the unit offers a send/return insert and clock I/O. The EuroDDL is flexible and is capable of a variety of time-based effects with short delays (0.11 ms resolution) for comb-filter and flange effects, while longer delays can be used for echo effects. There is an infinite looping function, reverse function, and feedback inversion. The delay converter is 24-bits with a maximum delay time of up to 10 seconds at a 192-kHz sample rate and 160 seconds at a 12-kHz sample rate. The EuroDDL includes a ribbon cable and four rack screws. - General Features
-
- A Eurorack delay with minimal digital circuitry, it's designed to do nothing more than simple, yet flexible delay.
- The DDL is pristine. It’s long. It’s short (0.11 msec resolution). It’s smooth, it loops, and it goes backwards.
- The delay converter is 24-bits with a max delay up to 10 seconds at 192-kHz sample rate and 160 seconds at 12-kHz rate.
- Delay time can be varied smoothly and over a wide range—either manually, via tap tempo, or by remote control voltage.
- Short delays can be used for comb filter and flanging effects; longer delays for echo effects
- Infinite delays for looping and backwards delays for reverse effects are available.
- Panel Controls
-
- Input Level: Control knob
- Output Level: Control knob
- Send/Return: Post delay, pre-LPF, pre-feedback insert
- Delay Knob: Turn knob to change delay time, push + turn for coarse control
- Delay Time: 0.11 ms to 160 seconds (30 to 400 BPM)
- Drive: 20 dB input boost
- Delay Multiply: Active when lit
- Hold/Turn Knob to Set Mult: 2 x (96 kHz) to 16 x (12 kHz)
- Low-Pass Filter: Tune filter from 400 Hz to 20 kHz (12 dB/octave)
- Low-Pass Engage: Hold/turn Delay knob to set CV mode to replace or scale
- Mix: Dry / wet control
- Reverse: Toggles delay direction
- Hold/turn delay knob to change offset between -5V and +5V
- Trigger / Gate Inputs: +2.5V
- Clock I/O: +2.5V input, +5V output
- Voltage Control Inputs: -5V to +5V
- Tap Button: Tap to enter delay
- Hold + turn knob to set tap divider
- 1.4: Quarter note
- 1.8: Eighth note
- 1.2: Half note
- 4.4: Whole note
- 1.5b: Dotted whole
- 2 b: 2 bars
- 2.5b: 2.5 bars
- 4 b: 4 bars
- 1.4d: Dotted 1/4 (3 / 8)
- 1.8d: Dotted 1/8 (3/16)
- 16 d: Dotted 1/16 (3/32)
- 32 d: Dotted 1/32 (3/64)
- 1 6 t: 1/16th note triplets
- 1.8 t: 1/8th note triplets
- 1.4 t: Quarter note triplets
- 4.4 t: Whole note triplets
- Seconds Indicator: Seconds displayed when lit, milliseconds when off
- Infinite Repeat: Repeat samples in delay buffer
- Feedback
- Level: 0% to 110%
- Invert: Invert signal in feedback path
- Hold/turn delay knob to adjust delay range
- Kill: Disables delay input, dry signal and feedback are unaffected
- Hold/turn delay knob to adjust delay glide time
UPC: 840694001408 In the Box Eventide EuroDDL Digital Delay Eurorack Module Ribbon Cable 4 x Rack Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide EuroDDL Digital Delay Eurorack Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide Euro DDL Specs | Sample Rate | 12 to 192 kHz | | Resolution | 24-bit | | Minimum Delay Time | 0.11 ms | | Maximum Delay Time | 12 kHz: 160 seconds
192 kHz: 10 seconds | | Input | Max: 20 dBu
Impedance: 100 kOhms | | Output | Max: 20 dBu
Impedance: 22 kOhms | | Insert | Send:
Max: 16 dBu
Impedance: 2 kOhms
Return:
Max: 20 dBu
Impedance 50 kOhms | | Power | +12 V 200 mA, -12 V 100 mA | | Horizontal Pitch | 16 HP | | Weight | Not specified by manufacturer |
