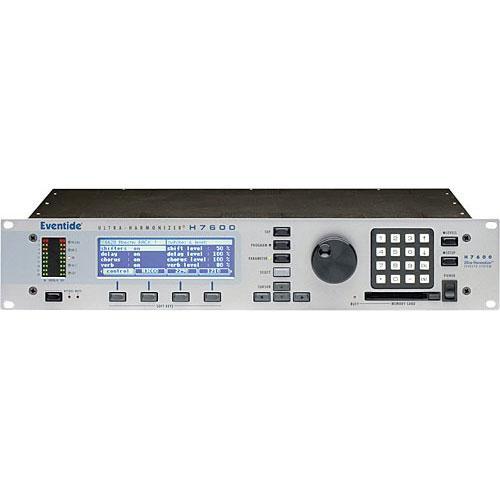

User Manual for Eventide H7600 - Stereo Multi-Effects Processor with Analog and Digital I O Click to enlarge the picture
Contents of the user manual for the Eventide H7600 - Stereo Multi-Effects Processor
- Product category: Effects Processors Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Effects Processors
|
User manual for the Eventide H7600 - Stereo Multi-Effects Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|
Product description The H7600 from Eventide is a highly programmable, stereo, digital signal processor. Nearly 1000 presets cover the entire gamut of signal processing, from lush reverbs, to choruses, flangers, delays, pitch shifters, dynamics, EQs, to filters, distortions, synthesizers, samplers, and everything in between. The unit houses a single signal processor, delivering an unprecedented number of preset algorithms and processing power to musicians, producers, and post-production professionals.For the users who are interested in making their own programs, the H7600 continues Eventide's modular programming paradigm. Programs are composed of individual building blocks or modules. With the open architecture of the unit, the users are able to create their own original programs. Connectivity includes AES/EBU, S/PDIF, and word clock digital I/O. Two channels of analog I/O via XLR and two channels of Hi-Z inputs are provided for connecting instruments. Effects - 1000 stunning programs that cover all audio processing categories
- Includes UltraShifter, a natural sounding, formant-corrected pitch changer, optimized for voice, which also provides automatic pitch correction
- 174-second mono sampler or 87 seconds of phase-locked stereo with advanced looping, editing and layering capabilities
- Post-production and broadcast programs provide scores of different audio environments
- Includes twenty MIDI Virtual Rack presets that feature up to five full effects ganged together. Each preset offers ten different editable parameters, which can be programmed, stored and controlled in real time via MIDI
Connectivity - AES/EBU digital inputs and outputs and S/PDIF digital inputs and outputs
- Two analog inputs and outputs
- Very comprehensive routing capabilities for controlling the I/O
General - Pristine analog with a signal to noise ratio of better than 105dB
- MIDI, BPM and Tap Tempo lock effects in time with the beat
- Comprehensive search engine functionality for easier preset sorting
- Complex editing simplified with Building-Block Effects Architecture
- Includes VSIG and VSIG-X graphic editor/development tools
- Ethernet-like jack for use with Eve/Net remote controllers
UPC: 840694001002 In the Box Eventide H7600 - Stereo Multi-Effects Processor with Analog and Digital I/O AC Power Cable 64MB Flash Card PCMCIA Flash Card Adaptor One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide H7600 - Stereo Multi-Effects Processor with Analog and Digital I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide H7600 Specs | Effects Type | Multi-effects | | Channels | 2 | | Effect Variations | 230 modules (the H7600 has an open architecture that allows the user to create their own algorithms using these modules) | | Presets | 1000 programs | | User Memory | Nominally 100+ (internal depending on the size of the program) | | Inputs | Analog:
2 x 1/4" TS/XLR combo
Digital:
1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x ADAT lightpipe
1 x BNC word clock | | Output | Analog:
2 x 1/4" TS/XLR combo
Digital:
1 x XLR AES/EBU
1 x RCA coaxial S/PDIF
1 x ADAT lightpipe
1 x BNC word clock | | AD/DA Conversion | 24-bit / 96kHz | | MIDI | In/Out/Thru | | External Storage | 68-pin PCMCIA 2.0 / JEIDA 4.0 interface (supports compact flash cards with supplied adaptor) | | Display | Custom backlit | | Frequency Response | 5 Hz to 46 kHz, +/-3.0 dB @ 96 kHz sample rate | | Dynamic Range | >105 dB | | Noise | SNR: >105 dB, A-weighted | | Dimensions (WxDxH) | 19" x 12 1/2" x 3 1/2" (483 x 317 x 89 mm) | | Weight | 12 lbs (5.5 kg) | | Specialties | 174-second mono sampler or 87 seconds of phase-locked stereo with advanced looping, editing, and layering capabilities
Two 1/4" TRS phone foot pedal jacks allow for connecting foot switches, foot pedals, or control voltage sources to modulate parameters or to trigger events, including remote program loads | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 22.2 x 18.3 x 8.2" |
