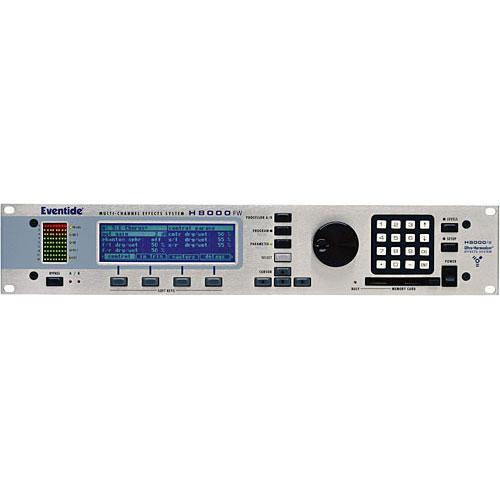

User Manual for Eventide H8000FW - Multi Channel, Multi Effects Processor with Analog, Digital and FireWire I O Click to enlarge the picture
Contents of the user manual for the Eventide H8000FW - Multi Channel, Multi
- Product category: Effects Processors Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Effects Processors
|
User manual for the Eventide H8000FW - Multi Channel, Multi contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|
Product description The H8000FW from Eventide is a highly programmable, multi-channel, digital signal processor. Over 1,800 presets cover the entire gamut of signal processing, from lush reverbs, to choruses, flanges, delays, pitch shifters, dynamics, EQs, to filters, distortions, synthesizers, samplers, ring modulators and everything in between. The unit houses two independent signal processors, each having eight inputs and eight outputs. The two processors can be run in parallel, in series, or in any variation utilizing the unit's "anything to anything" routing capability. In addition, the H8000 can run "monolithic programs" that use the processing resources of both DSPs to run a single large program.For the users who are interested in making their own programs, the H8000 continues Eventide's "modular programming paradigm." Programs are composed of individual building blocks, or "modules" and with the open architecture of the unit, the users are able to create their own original programs. Multi-Processor - The culmination of thirty-five years of digital effects creation, the H8000FW includes 1,800+ stunning programs that cover all audio processing categories
- Eight channels of up to 24-bit/96kHz processing including over eighty 5.1 presets, including 5.1 reverbs and effects
- Includes UltraShifter, a natural-sounding, formant-corrected pitch changer, optimized for voice, which also provides automatic pitch correction
- 174 second mono sampler, or 87 seconds of phase-locked stereo with advanced looping, editing and layering capabilities
- Over forty Virtual rack programs which combine up to five stereo effects in one program
- The unit can run two Virtual Rack programs simultaneously
- Contains the best of Eventide's post-production suite of effects including a wide variety of phone and speakerbox emulations
- Eight channels of phase locked time compression/expansion for broadcast
Connectivity - Twelve AES/EBU digital inputs and outputs, eight ADAT digital inputs and outputs and two S/PDIF digital inputs and outputs
- Four analog inputs and outputs
- Sixteen channels ofFireWire for connection to a PC or Mac
- Very comprehensive routing capabilities for controlling all of the I/O
General - Pristine analog with a signal-to-noise ratio of better than 110dB
- MIDI, BPM and Tap Tempo lock effects in time with the beat
- Comprehensive search engine functionality for easier preset sorting
- Complex editing simplified with "Building-Block Effects Architecture"
- Includes VSIG and VSIG-X graphic editor/development tools, FireWire drivers for Mac (including Universal Binary) and PC, and routing program
- Ethernet jack for plug-and-play use with Eve/Net remote controller
UPC: 840694001019 In the Box Eventide H8000FW - Multi Channel, Multi Effects Processor with Analog, Digital and FireWire I/O AC Power Cable 64MB Flash Card PCMCIA Flash Card Adaptor One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide H8000FW - Multi Channel, Multi Effects Processor with Analog, Digital and FireWire I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide H8000FW Specs | Effects Type | Multi Effects | | Channels | 8 | | Effect Variations | 250 modules (the H8000FW has an open architecture that allows the user to create their own algorithms using these modules) | | Presets | Over 1,800 programs | | User Memory | Nominally 100+ (internal depending on the size of the program) | | Inputs | Analog:
4 x 1/4" TRS/XLR comboDigital:
2 x XLR AES/EBU
1 x 25-pin D-Sub AES/EBU (8 channels)
2 x RCA coaxial S/PDIF
1 x ADAT Lightpipe
1 x BNC Wordclock | | Output | Analog:
4 x XLRDigital:
2 x XLR AES/EBU
1 x 25-pin D-Sub AES/EBU (8 channels)
2 x RCA coaxial S/PDIF
1 x ADAT Lightpipe
1 x BNC Wordclock | | AD/DA Conversion | 24-bit/96kHz | | MIDI | In, Out Thru | | External Storage | 68-pin PCMCIA 2.0/JEIDA 4.0 interface (supports Compact Flash cards with supplied adaptor) | | Display | Custom backlit | | Frequency Response | 5Hz to 46kHz, +0/-3.0dB @ 96kHz sample rate | | Dynamic Range | >110dB | | Noise | SNR: >110dB, A-weighted | | Dimensions (WxDxH) | 19" x 12 1/2" x 3 1/2" (483 x 317 x 89 mm) | | Weight | 12 lbs (5.5 kg) | | Specialties | 174 second mono sampler, or 87 seconds of phase-locked stereo with advanced looping, editing and layering capabilitiesIncludes VSIG and VSIG-X graphic editor/development tools, FireWire drivers for Mac and PC and routing program | | | | Package Weight | 21.3 lb | | Box Dimensions (LxWxH) | 21.89 x 17.717 x 8.347" |
