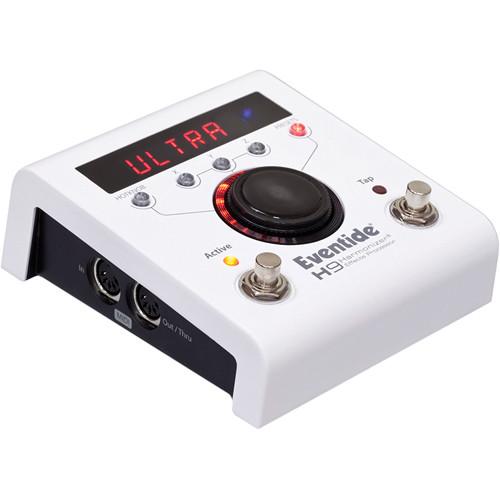

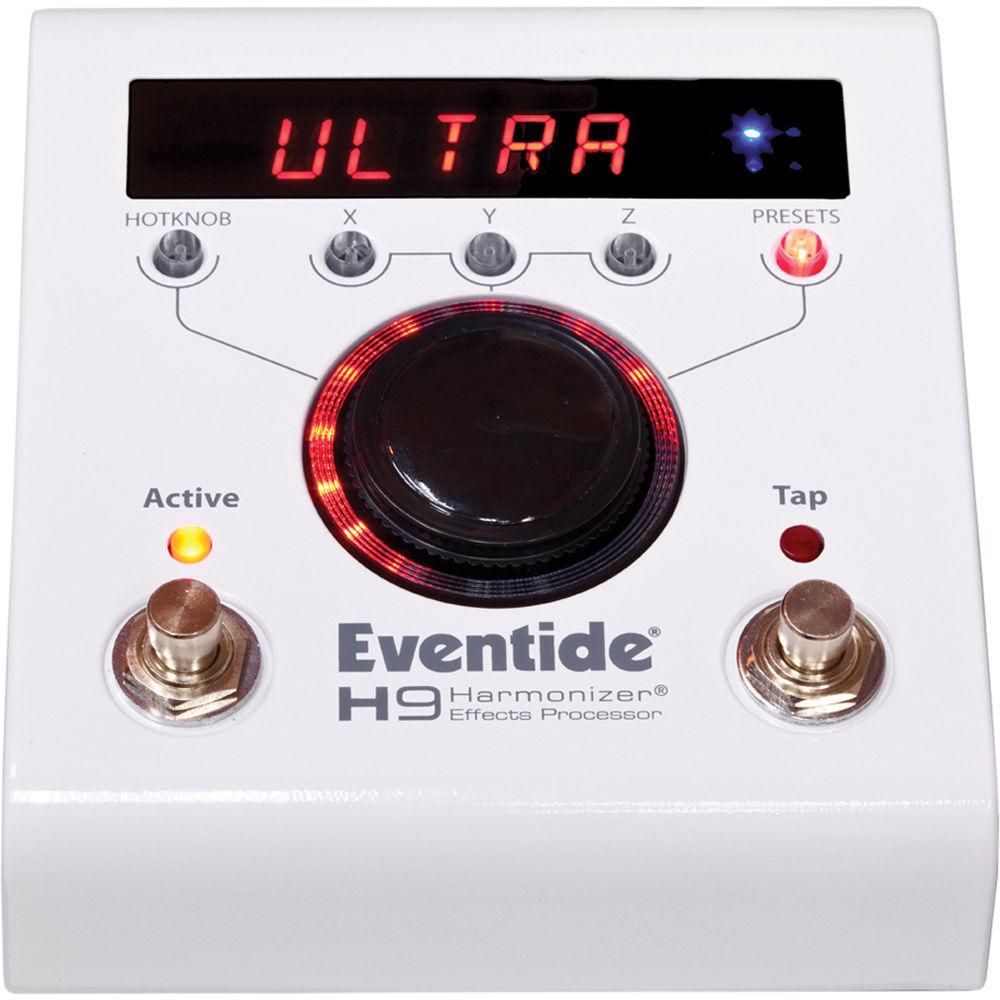

Product description The H9 Harmonizer Effects Pedal with Bluetooth Control from Eventide is a multi-effect guitar pedal that features effect algorithms from Eventide's ModFactor, PitchFactor, TimeFactor, and Space stompboxes. It also stores its own exclusive algorithms. Every effect parameter, preset, and system setting can be edited via the single-knob interface or via Bluetooth with your iPod, iPhone, iPad, or computer equipped with the free H9 Control app.
The H9 has an "active" footswitch for engaging and bypassing the unit, as well as a tap tempo footswitch for controlling time-based effects. It includes dual 1/4" TS analog inputs and outputs, in addition to a 1/4" expression pedal input for integrating an expression pedal or auxiliary switch. The mini-USB port not only provides access for editing effects with your Mac or Windows computer, but also provides MIDI input and output. The pedal comes with a coupon for a free additional algorithm, and furthermore, you can "MAXOut" the H9 at any time—meaning you can upgrade it to a state in which all current and future algorithms will be yours for the using. - Notable Features

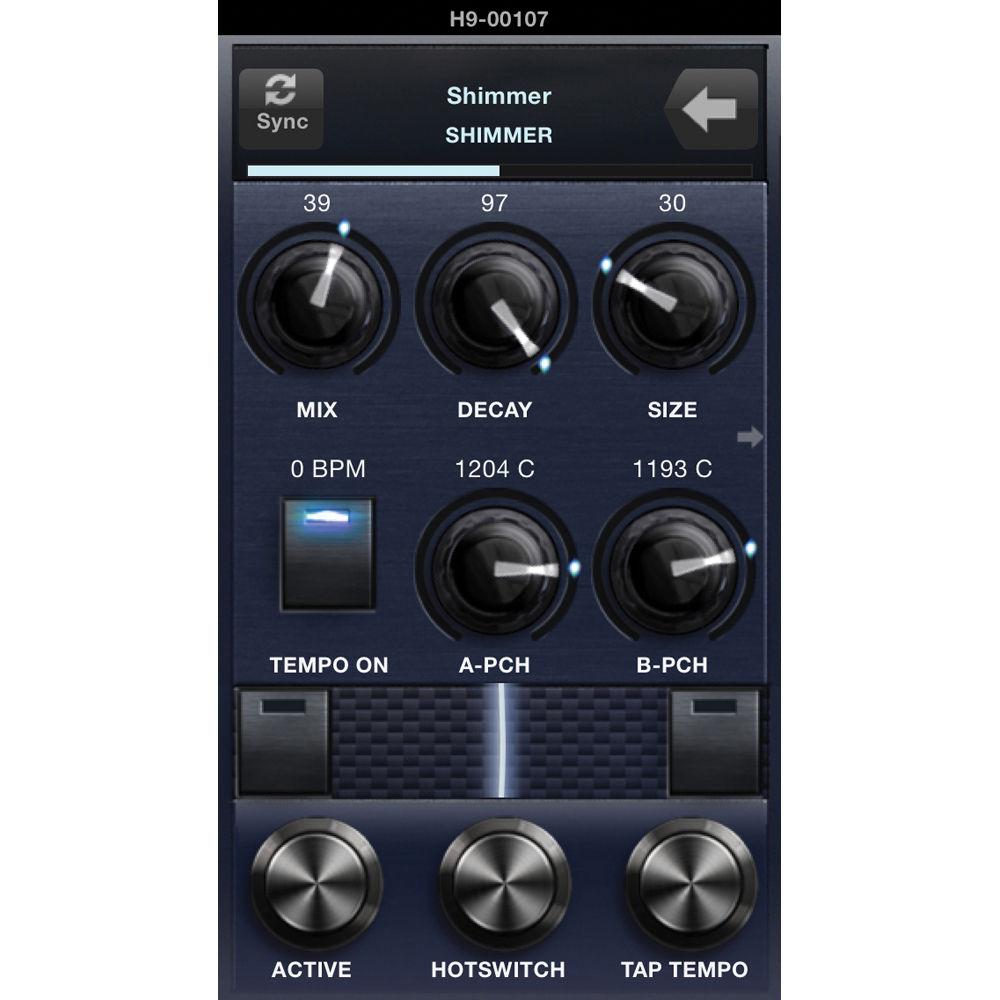

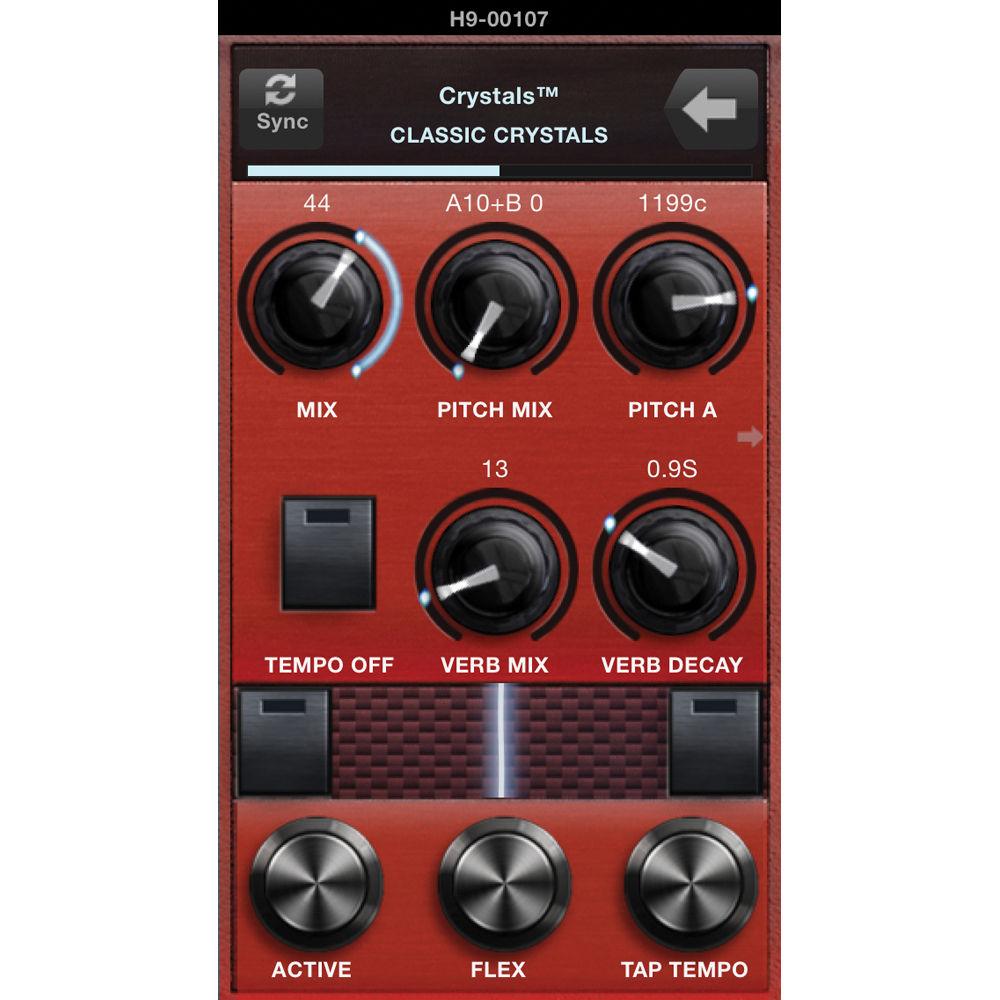

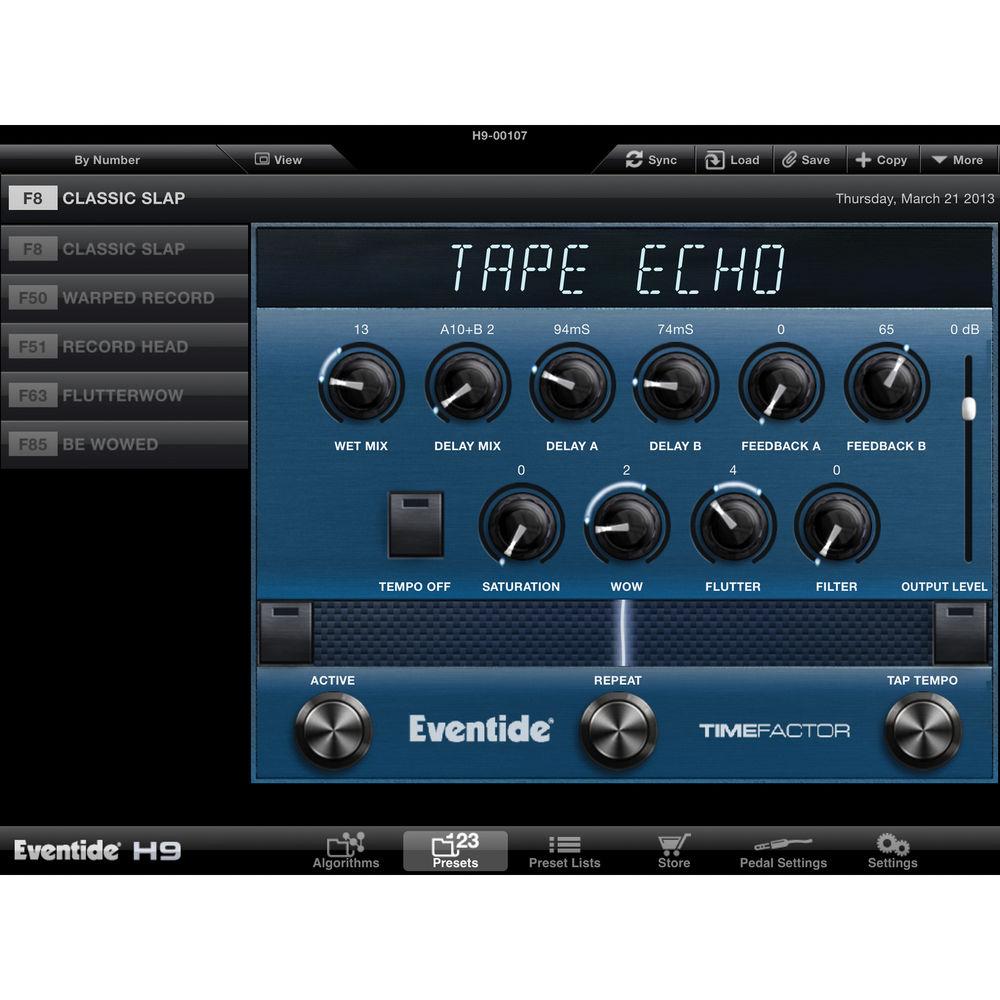

- H9 Control App

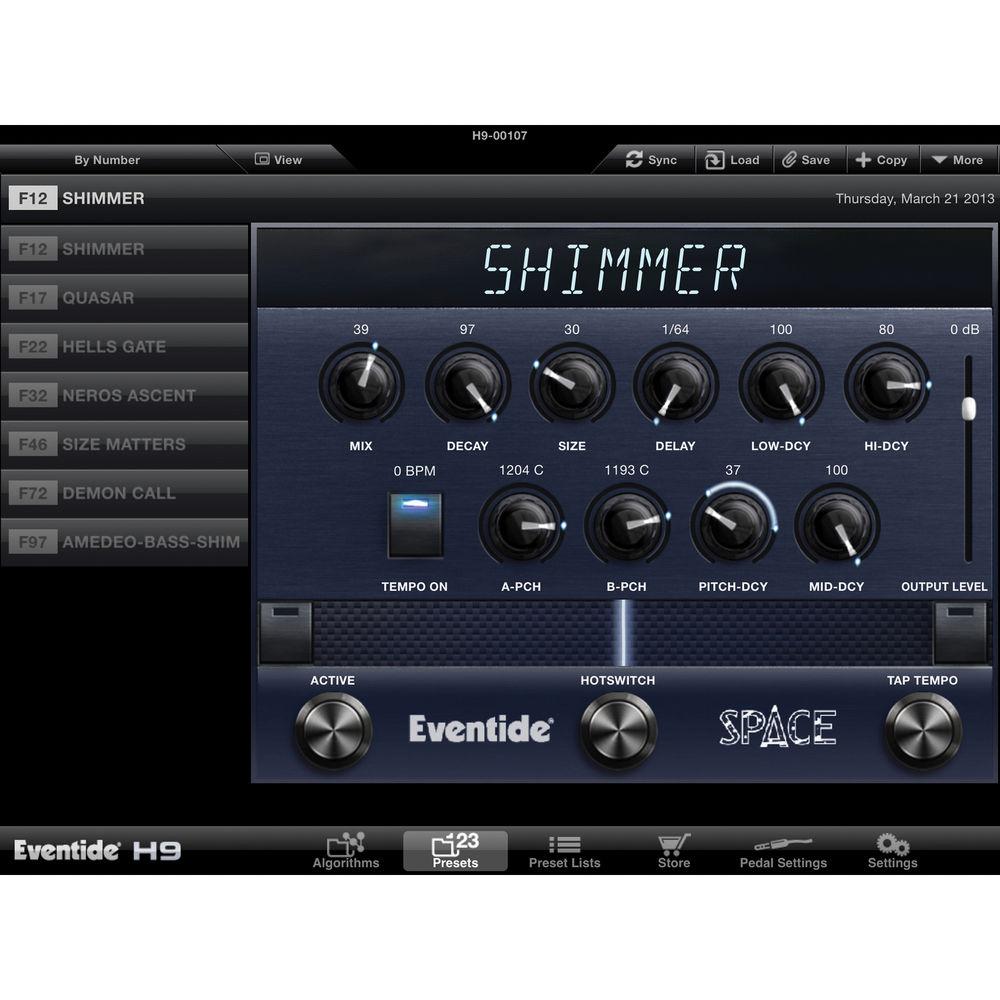

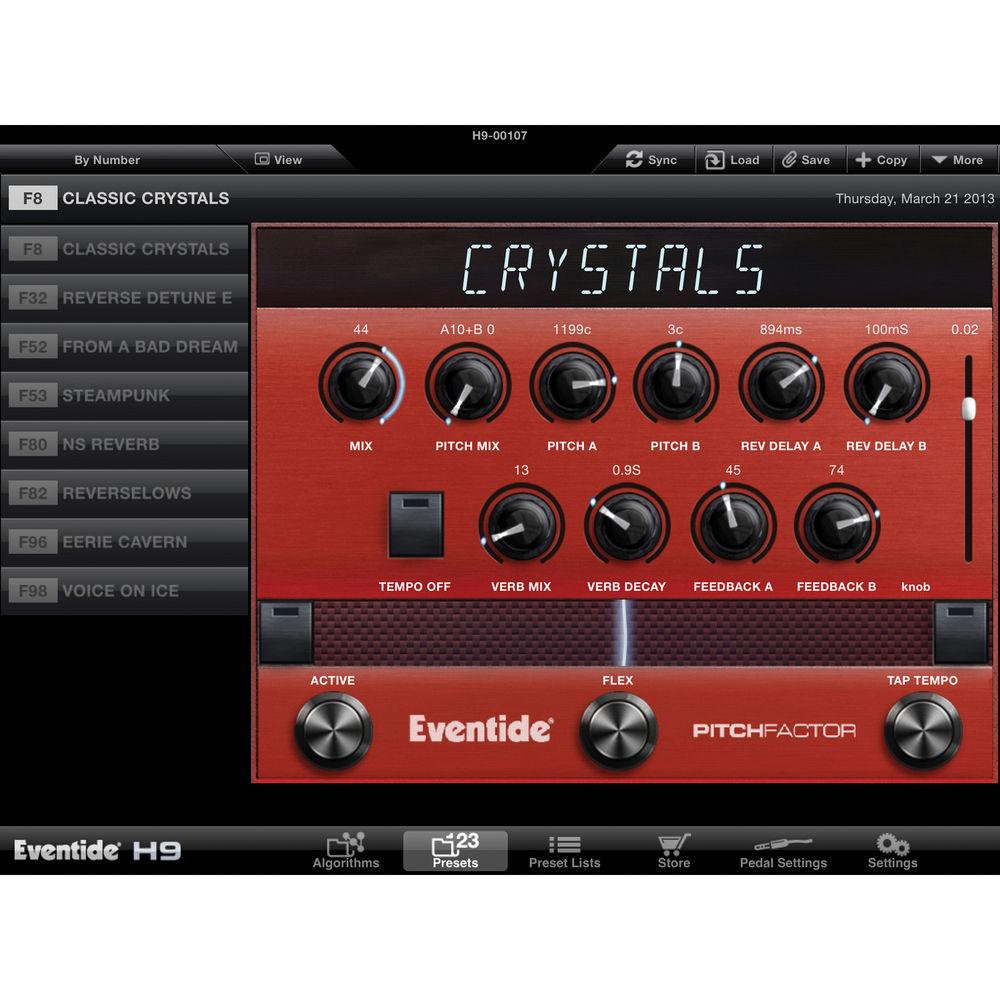

- The H9 Harmonizer can be controlled by the free H9 Control app on your iPod, iPhone of iPad via Bluetooth. The H9 Control app can be used to edit, create, and manage presets and system settings, as well as purchase additional in-app algorithms. All of Eventide's stompbox algorithms and presets are available for in-app purchase. H9 Control is also available for Mac and Windows
Included Effects Algorithms - ModFactor: Chorus, Tremolo
- PitchFactor: Crystals, H910/H949
- TimeFactor: Tape Echo, Vintage Delay
- Space: Shimmer, Hall
- H9 Exclusive: UltraTap Delay
- Additional Features
-
- True analog bypass
- Real-time MIDI control
- Power supply included
- MIDI via DIN and USB
- Fast accurate tuner included
- Expression pedal/AUX footswitch input
- Sync to the beat with tap tempo or MIDI
UPC: 840694001156 In the Box Eventide H9 Harmonizer Effects Pedal with Bluetooth Control Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide H9 Harmonizer Effects Pedal with Bluetooth Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

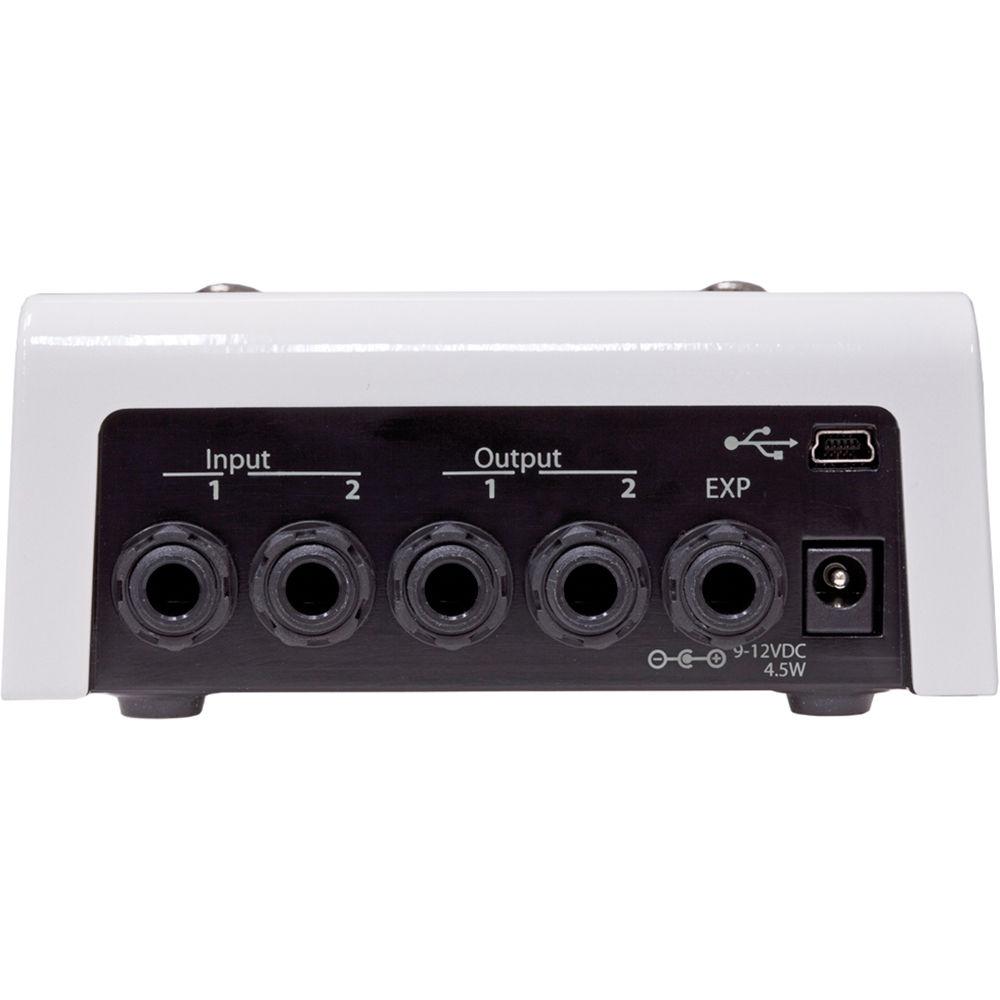

Technical parametersEventide H9 Specs | Connections | 2 x 1/4" TS (6.35 mm) inputs
2 x 1/4" TS (6.35 mm) outputs
1 x 1/4" (6.35 mm) expression pedal input

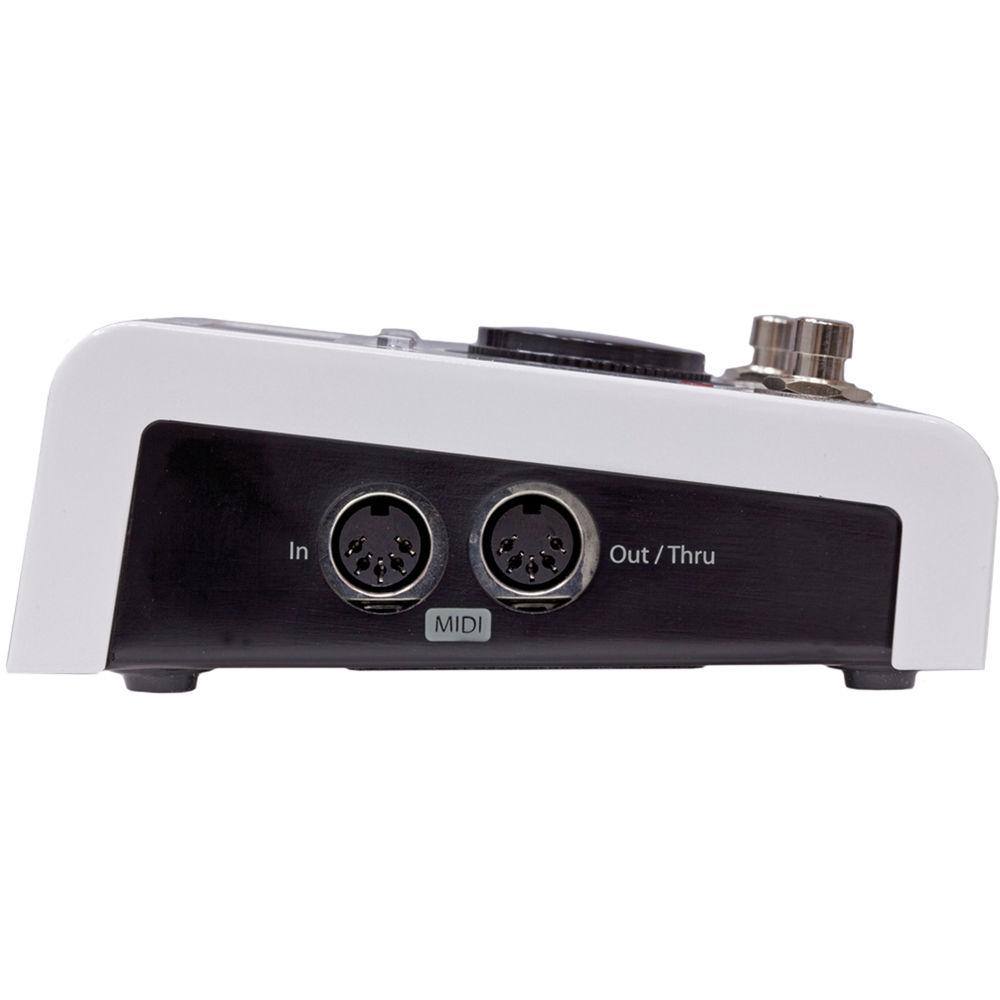

1 x DIN 5-pin MIDI input
1 x DIN 5-pin MIDI output
1 x USB 2.0 mini-B port

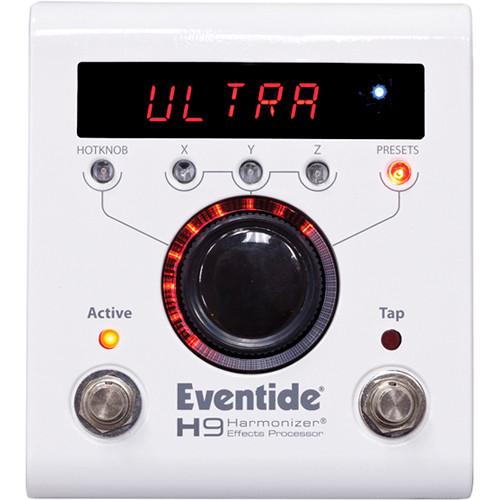

1 x 9 VDC power jack, 500 mA, center-pin positive | | Controls | 1 x Active switch
1 x Tap Tempo switch
1 x Master Control knob
1 x Hotknob button
1 x X button
1 x Y button
1 x Z button
1 x Presets button | | Effects & Controls | ModFactor: Chorus, Tremolo
PitchFactor: Crystals, H910/H949
TimeFactor: Tape Echo, Vintage Delay
Space: Shimmer, Hall
H9 Exclusive: UltraTap Delay
One additional algorithm of your choice | | Impedance | Input: 600 KOhms (mono or stereo)
Output: 470 Ohms
Recommended Load: 10 kOhms or greater | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.7 x 7.1 x 3.3" |
