User Manual for Eventide H9000 Expandable 16-Channel Effects Processor Click to enlarge the picture
Contents of the user manual for the Eventide H9000 Expandable 16-Channel Effects Processor
- Product category: Effects Processors Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Effects Processors
 |
User manual for the Eventide H9000 Expandable 16-Channel Effects Processor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|

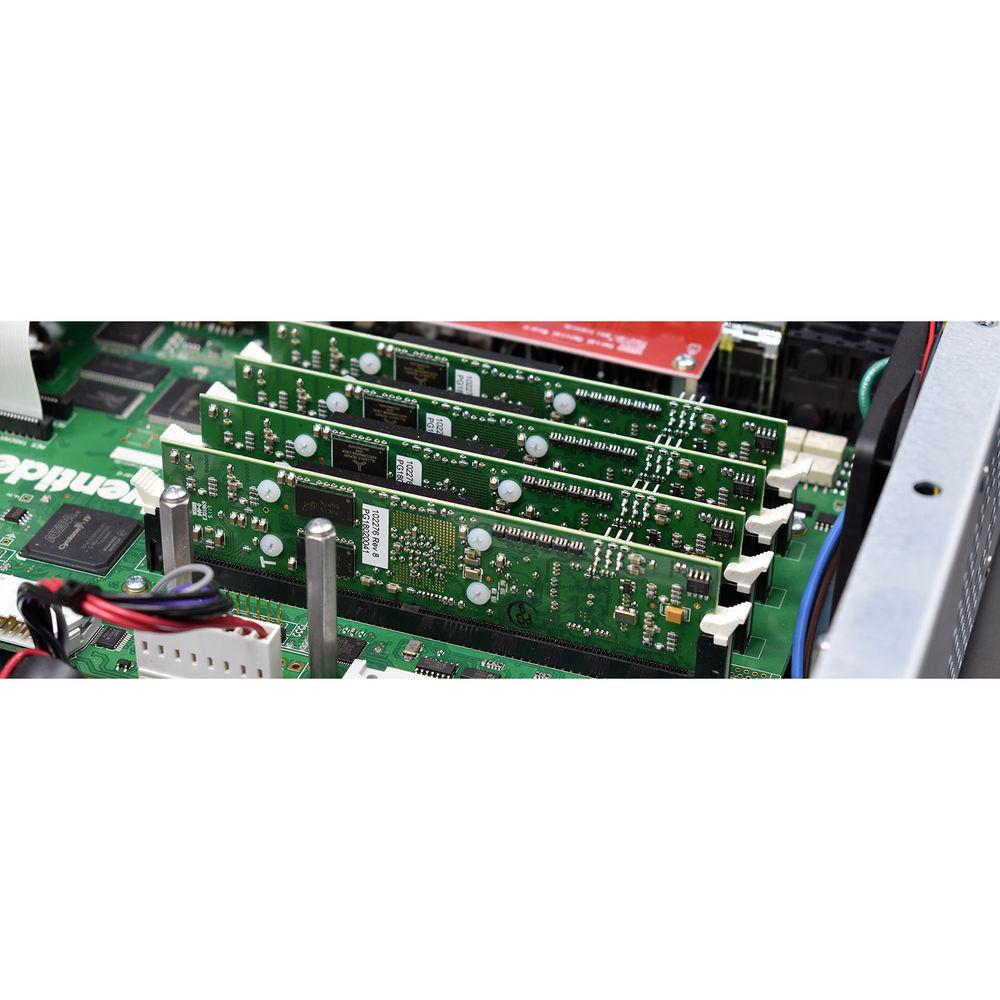

Product description The Eventide H9000 is an expandable 16-channel effects processor designed to deliver efficient, versatile, and customizable audio processing for recording and mixing engineers in broadcast, film and music production, and live stage applications. Its four quad-core ARM DSP processors provide power for up to 16 simultaneous effects instantiated on individual channels or configured as chains with up to four effects per chain. Route 16 channels of audio I/O via USB or up to eight channels via analog, AES/EBU, or ADAT connections. Run the H9000 at sample rates up to 96 kHz clocked internally or to external word clock. An array of 50 effect types are used in over 9000 presets. Store presets to the internal memory or external USB drives. Algorithm parameters can be adjusted from the front-panel controls, a networked computer, or a MIDI controller. It allows stand-alone operation or plug-in use thanks to compatibility with Mac OS X and AAX Native, Audio Units, and VST plug-in formats. - 16 channels of audio I/O via USB
- Eight channels of audio I/O via analog, AES/EBU, and ADAT
- Two channels audio I/O via S/PDIF
- Three expansion slots enable simple installation of additional I/O cards
- Send, process, and return up to 16 separate channels of individual DAW tracks

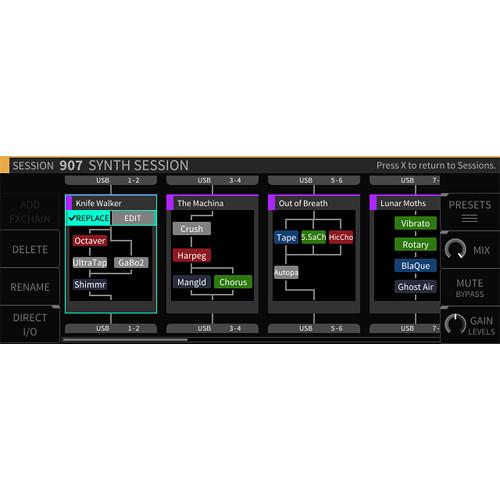

- Arrange up to four separate FX chains, each containing up to four separate algorithms routed in series, parallel, and more
- Clock internally or lock to an external clock via BNC word clock I/O

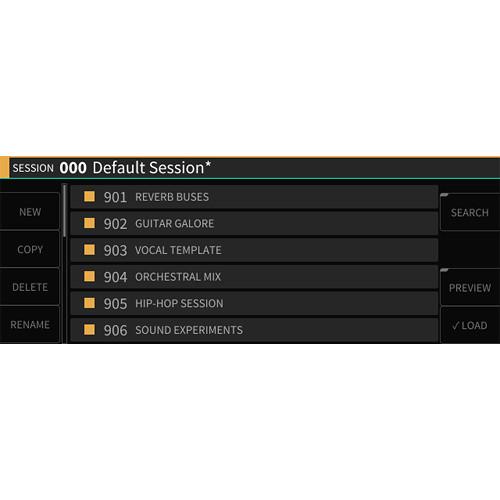

- Versatile preset types allow you to store and recall individual algorithms, FX chains, or entire sessions

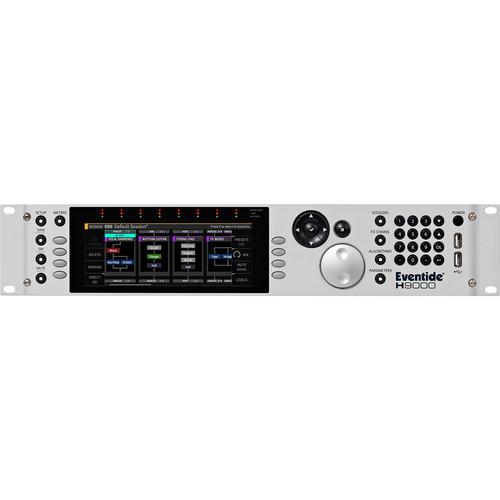

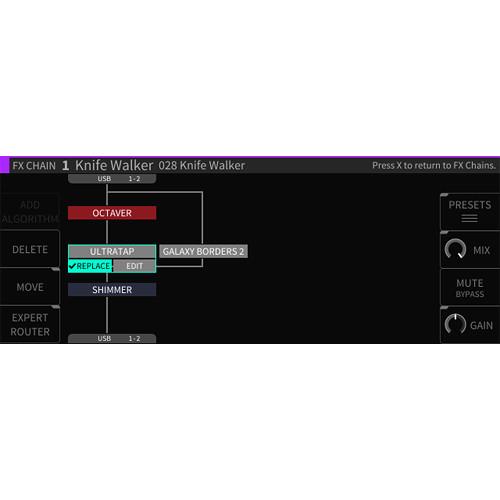

- Large color display with convenient controls including a jog wheel, cursor diamond, number pad, multi-function soft keys, and dedicate function keys

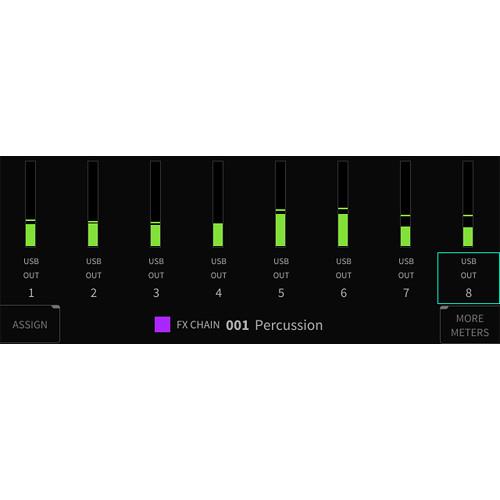

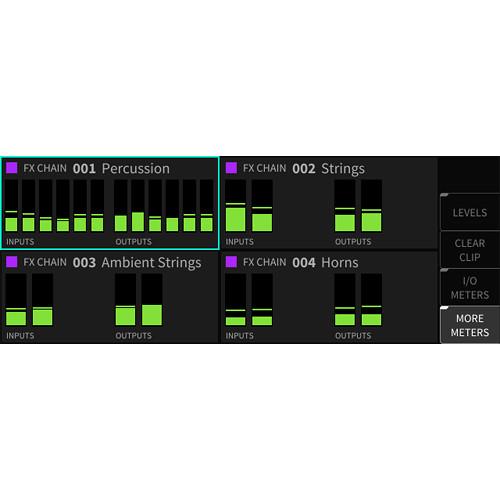

- 3-segment LEDs display eight channels of metering information and are always active
- Presets can be loaded from and saved to the internal memory or a USB drive connected to the front- or rear-panel USB ports
- Supports manipulation via MIDI controller connected to a USB or MIDI port
- Includes USB Wi-Fi dongle for easy access and full control via a network-connected computer
- Search for presets by effect, product, instrument, source character, and more

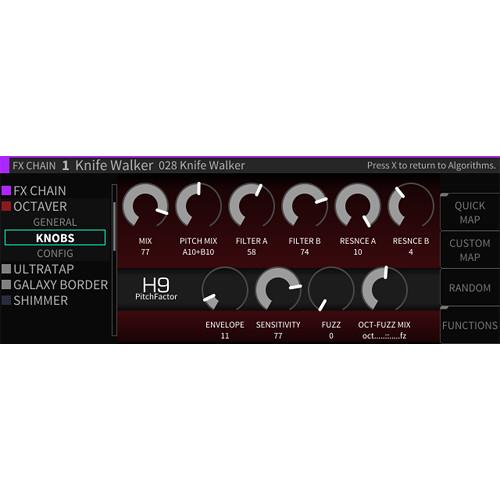

- Custom map parameters and adjust multiple parameters with a single knob
- Tap tempo, set it manually, or lock it to incoming MIDI clock
- Supports control via footswitches and expression pedals
UPC: 840694001453 In the Box Eventide H9000 Expandable 16-Channel Effects Processor USB Wi-Fi Dongle IEC Power Cable USB Type-A to Type-B Cable BNC Connector BNC T Adapter Rackmount Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide H9000 Expandable 16-Channel Effects Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide H9000 Specs | System Requirements | For Optional Software Control:
Mac OS X 10.9 or later
Mac computer equipped with a USB Type-A port
Core Audio–compatible application
Host software that supports AAX Native, Audio Units, or VST plug-in formats (for plug-in use) | | Rack Height | 2 RU | | Effects Type | Multi | | Channels | 16 | | Effect Variations | 50 effect types | | Presets | Types: Algorithm, FX Chain, and Session
Total: Over 9000 | | User Memory | Internal memory

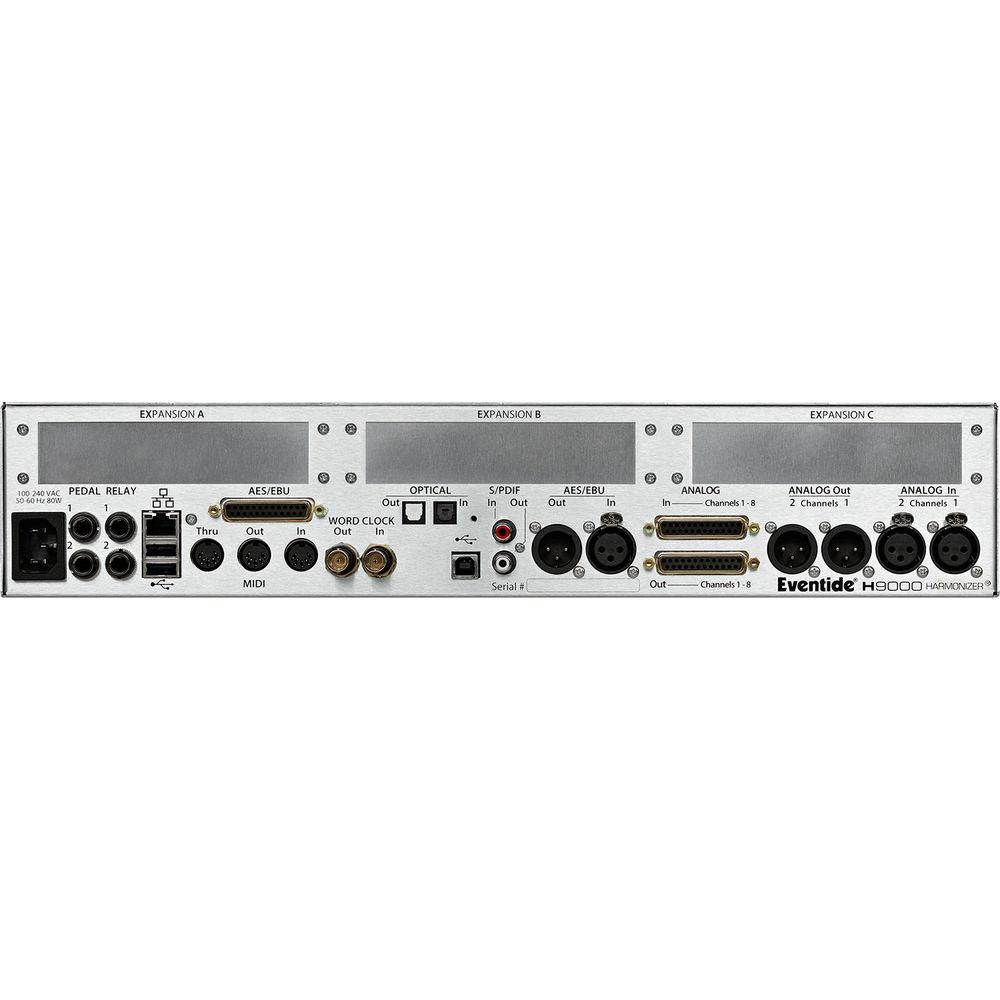

External storage via USB flash drive | | Inputs | 2 x XLR 3-pin (analog)
1 x DB25 (8 channels, analog)
1 x XLR 3-pin (2 channels, AES/EBU)
1 x DB25 (8 channels I/O, AES/EBU)
1 x RCA coaxial (2 channels, S/PDIF)
1 x TOSLINK optical (2 channels in S/PDIF mode, 8 channels in ADAT mode) | | Output | 2 x XLR 3-pin (analog)
1 x DB25 (8 channels, analog)
1 x XLR 3-pin (2 channels, AES/EBU)
1 x DB25 (8 channels I/O, AES/EBU)
1 x RCA coaxial (2 channels, S/PDIF)
1 x TOSLINK optical (2 channels in S/PDIF mode, 8 channels in ADAT mode) | | AD/DA Conversion | Up to 96 kHz | | Sample Rates | Up to 96 kHz using analog, USB, AES/EBU, or S/PDIF via RCA
Up to 48 kHz using ADAT or S/PDIF via optical | | USB | 4 x USB 2.0 Type-A for external storage, Wi-Fi dongle, and USB MIDI controller
1 x USB 2.0 Type-B for 16-channel audio interface functionality | | MIDI | 1 x MIDI 5-pin input
1 x MIDI 5-pin output
1 x MIDI 5-pin thru | | Word Clock | 1 x BNC input (50 Ohms)
1 x BNC output (50 Ohms) | | Ethernet | 1 x RJ45 | | Pedal Control | 2 x 1/4" TRS inputs | | Relay Input | 2 x 1/4" TRS | | External Storage | USB hard drives or flash drives | | Expansion | 3 x expansion slots | | Display | Front-panel color screen | | Signal to Noise Ratio | 120 dBA at 44.1 kHz
114 dBA at 48 kHz and higher sample rates | | Total Harmonic Distortion | 0.002% | | Power Requirement | 100 to 240 VAC, 50/60 Hz, 80 W | | Dimensions (W x H x D) | 19.0 x 3.5 x 12.5" / 48.3 x 8.9 x 31.8 cm | | Weight | 14 lb / 6.4 kg |
