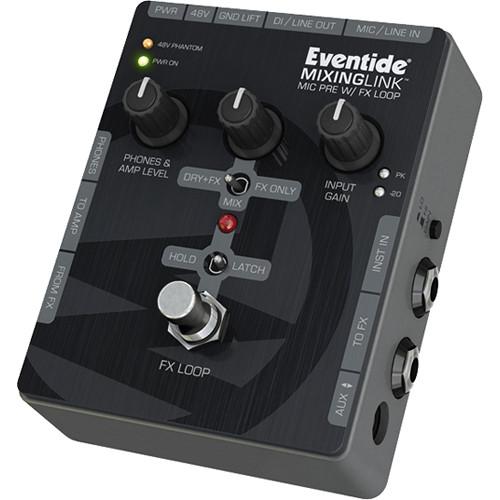

User Manual for Eventide MixingLink Microphone Preamp with Effects Loop Click to enlarge the picture
Contents of the user manual for the Eventide MixingLink Microphone Preamp with Effects
- Product category: Microphone Preamps Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Microphone Preamps
 |
User manual for the Eventide MixingLink Microphone Preamp with Effects contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|

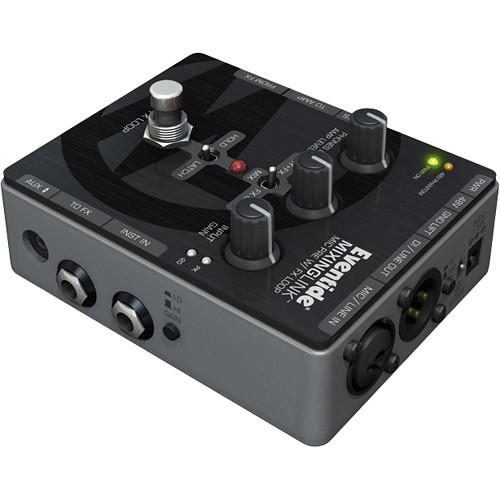

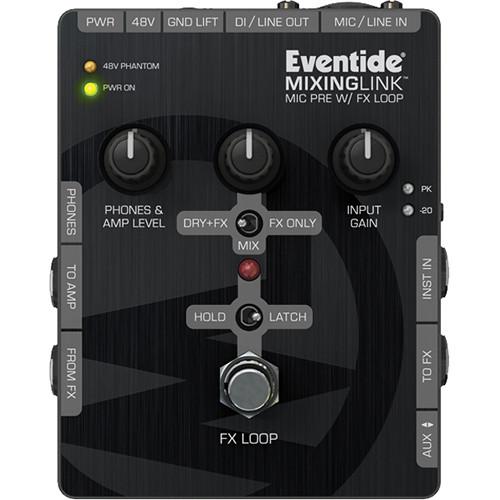

Product description The MixingLink Microphone Preamp with Effects Loop from Eventide is a stompbox mic preamplifier with an integrated switchable effects loop. It is designed for live use and provides immediate control over your effects while performing. With up to 70dB of gain and 48-volt phantom power, the MixingLink can be used with dynamic, condenser, and ribbon microphones.
The MixingLink's footswitch can be assigned to latching or momentary operation, allowing you to keep your effects engaged continuously or only when you press on the footswitch. Its 3 mixing modes let you select whether you want 100% of your mic signal with effects blended in, a blend of your effects with your dry vocal signal, or only your effects to be output. Guitar amp, DI, and line outputs provide a variety of connectivity options for your vocals final destination regardless of which mode you select. - Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals
- Aux I/O connection supporting stereo input and mobile device send level
- Latching or momentary footswitch control of effects loop for performance effects
- Guitar amp output and headphone monitor output with separate master volume control
- Balanced XLR output which supports DI and line levels (-10dB to +18dBu)
- Versatile mix control supports 3 modes of operation - 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)
UPC: 840694001170 In the Box Eventide MixingLink Microphone Preamp with Effects Loop International Universal 9 VDC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide MixingLink Microphone Preamp with Effects Loop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEventide MixingLink Specs | Signal to Noise Ratio | > 120 dB | | Footswitch | Latching or momentary | | Gain | Up to 70 dB | | Phantom Power | 48 V | | Power Supply | 9 V DC power supply
9 V battery
Eventide's PowerFactor 2 | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 8.3 x 6.1 x 2.1" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
