User Manual for Eventide Rose Digital Delay Pedal with Analog Circuitry Click to enlarge the picture
Contents of the user manual for the Eventide Rose Digital Delay Pedal with
- Product category: Effects Pedals Eventide
- Brand: Eventide
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Eventide Effects Pedals
 |
User manual for the Eventide Rose Digital Delay Pedal with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Eventide product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Eventide user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Eventide product will considerably shorten its lifespan!
|

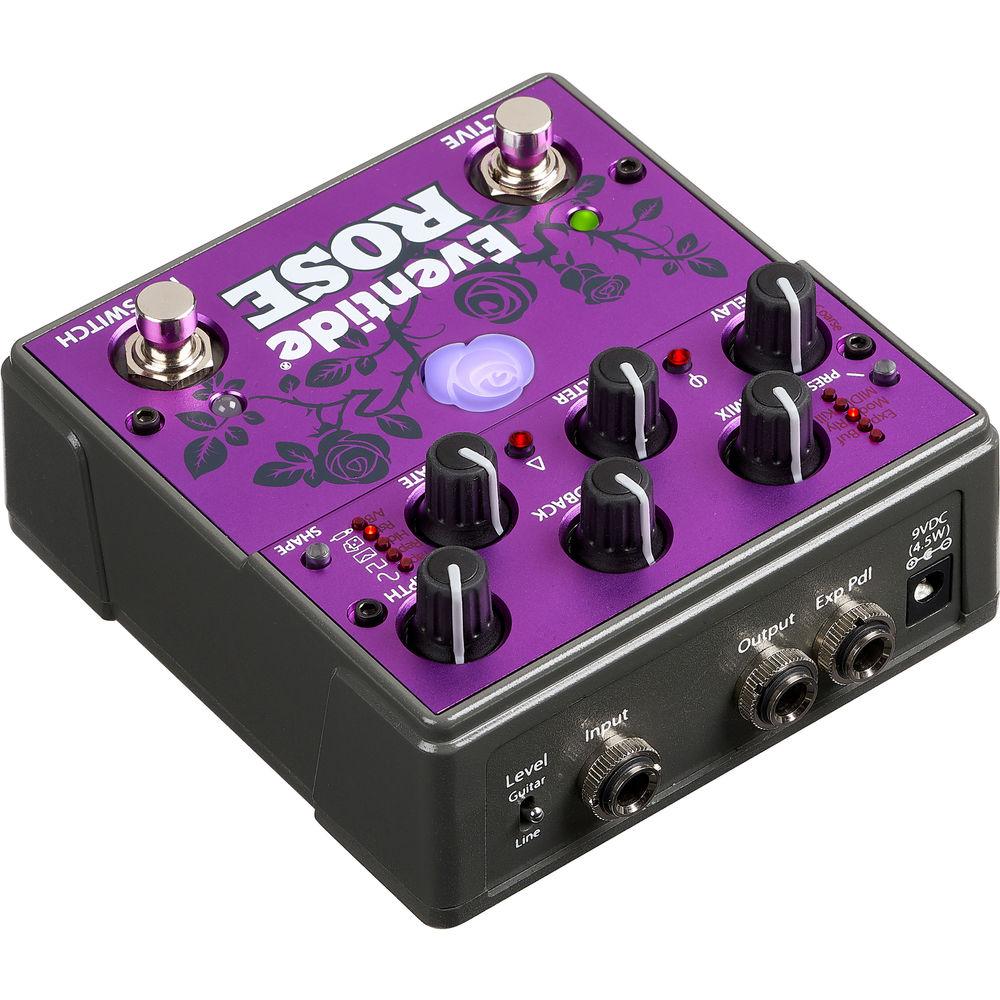

Product description Building on the original 1745 DDL, the Eventide Rose Delay is a stompbox meant for guitarists and line-level instrumentalists alike. It combines a digital delay with analog circuitry to give you the features of an analog bucket brigade delay without the sonic limitations inherent in that kind of design.
The delay itself stems from a variable digital clock that can be swept over a range of .01 μs to 50 seconds and then mangled or improved upon by a variety of controls. At full resolution, the delay can give you up to 10 seconds, but at lower fidelities, you can achieve up to 50 seconds of delay.
A low-pass filter, feedback knob, and modulation rate and depth controls are on hand. Five different types of modulation are available: sine wave, square wave, random, envelope, and external.
Speaking of the external jack, it can function as an expression, auxiliary or MIDI-via-TRS input, allowing you a lot of flexibility for control. Reverse delay and invert phase are other tonal variants that the pedal supplies, and with five factory presets, as well as the ability to assign various parameters to the HotSwitch, you'll have plenty opportunities for experimentation. - Key Features at a Glance
-

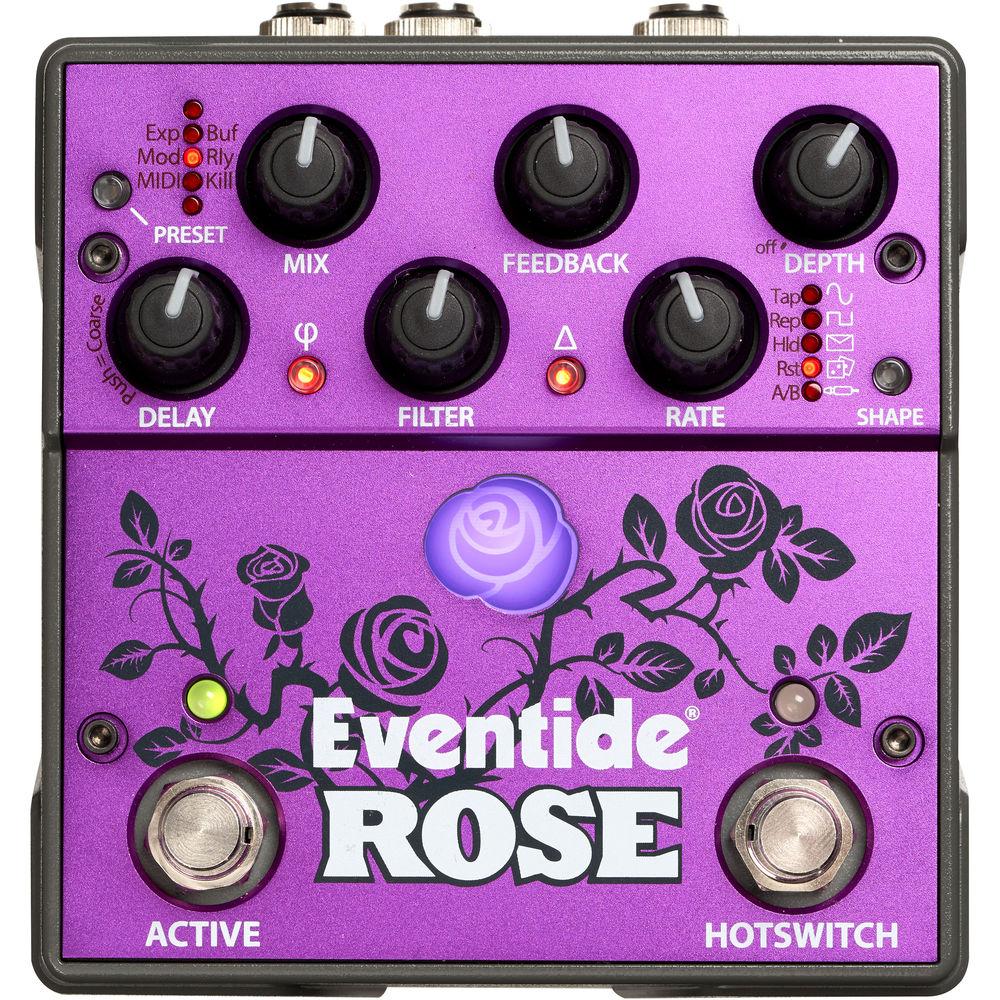

- 6 tactile knobs (Mix, Feedback, Depth, Delay, Filter, Rate)
- Invert phase and reverse delay
- Delay multiplier
- Assignable Hotswitch for tap tempo, delay repeat, modulation hold, modulation reset, and A/B
- 5 factory presets
- Modulation (sine, square, random. envelope, and external)
- Analog mix, feedback, and low-pass filter
- Expression/auxiliary/MIDI/TRS input
- 3 different bypass types: Buffered, Relay, Kill Input
- Accepts line or instrument levels
- The delay line’s clock can be swept over a wide range with delay time varying from .01 μs to 50 seconds.
UPC: 840694001286 In the Box Eventide Rose Digital Delay Pedal with Analog Circuitry Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Eventide Rose Digital Delay Pedal with Analog Circuitry in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

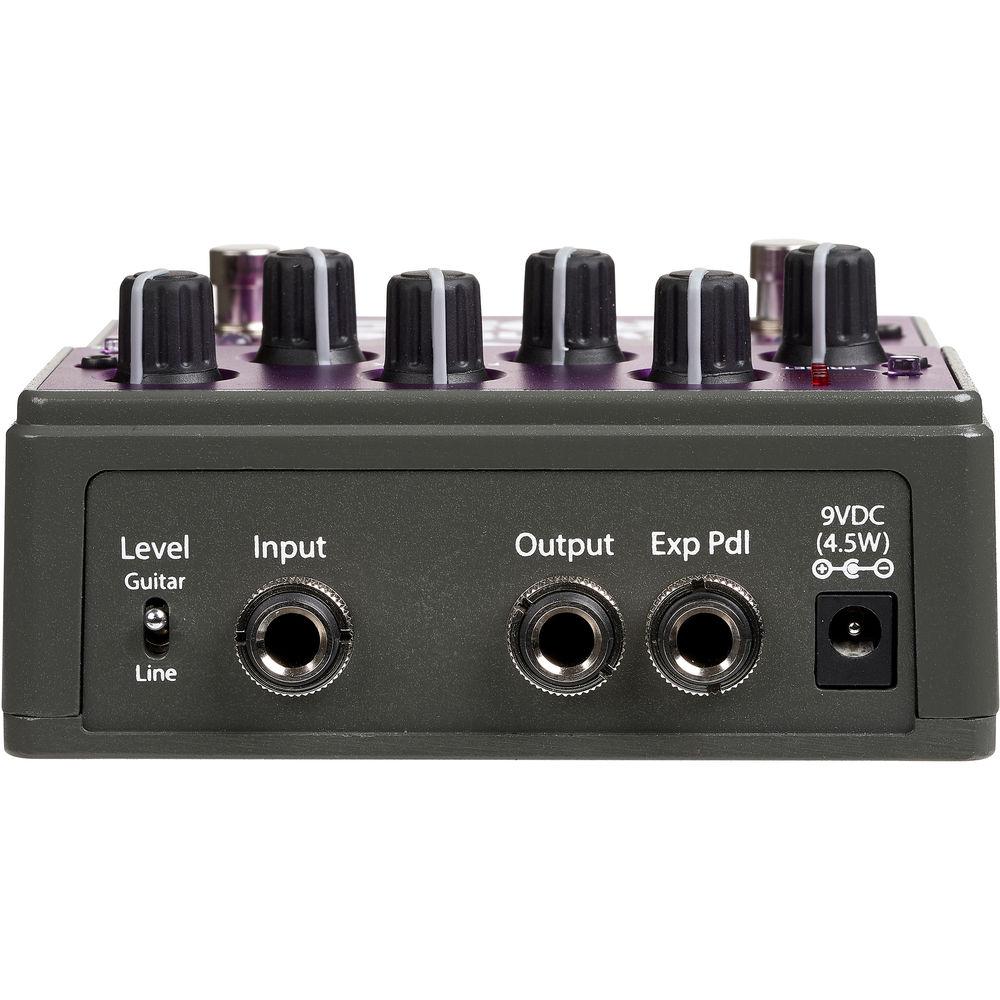

Technical parametersEventide Rose Digital Delay Specs | Analog I/O | 1 x 1/4" Input (Instrument & Line Level)
1 x 1/4" TRS (Expression, Auxiliary, MIDI Input)
1 x 1/4" Output (Instrument & Line Level) | | Controls | Delay Knob
Mix Knob
Filter Knob
Feedback Knob
Rate Knob
Depth Knob/Push Button
Shape Button
Preset Button
Phase Button
Delta Button
Guitar/Line Switch
Engage/Bypass Footswitch
HotSwitch Footswitch | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 1.995 lb | | Box Dimensions (LxWxH) | 8.1 x 5.9 x 2.6" |
