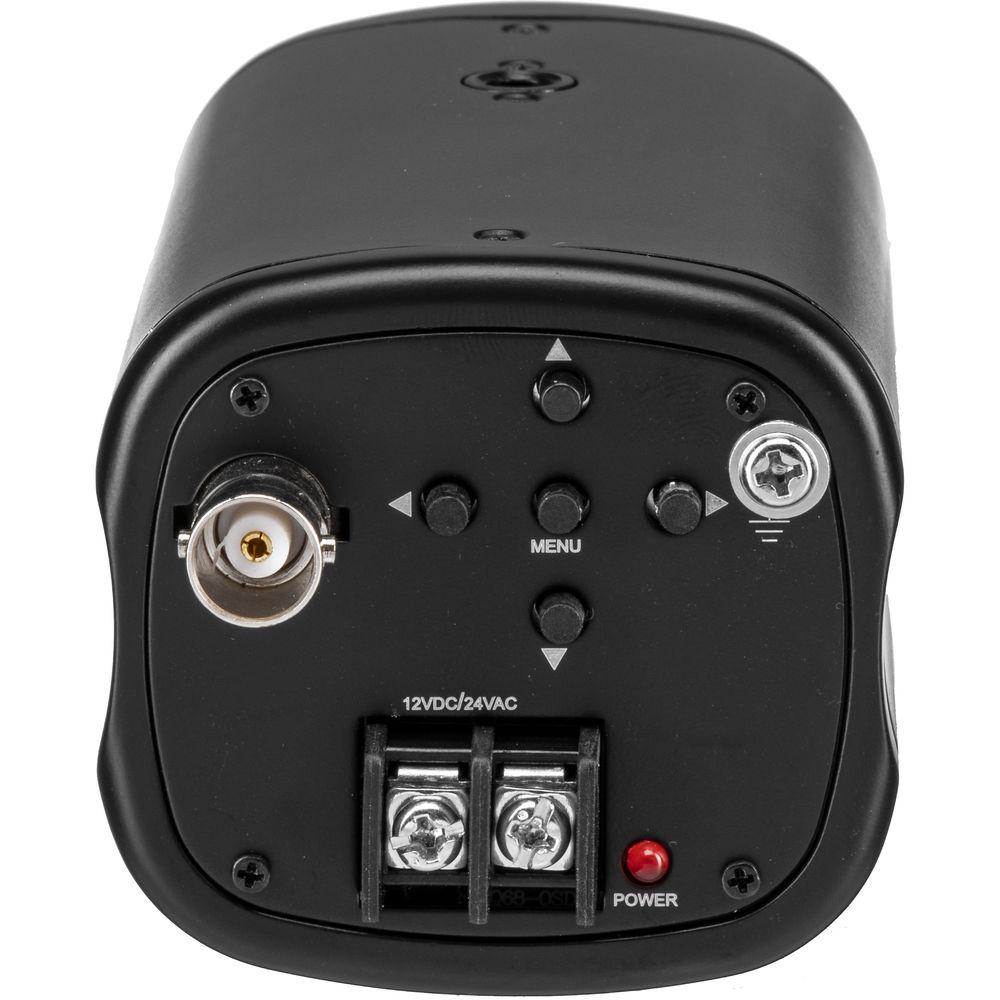

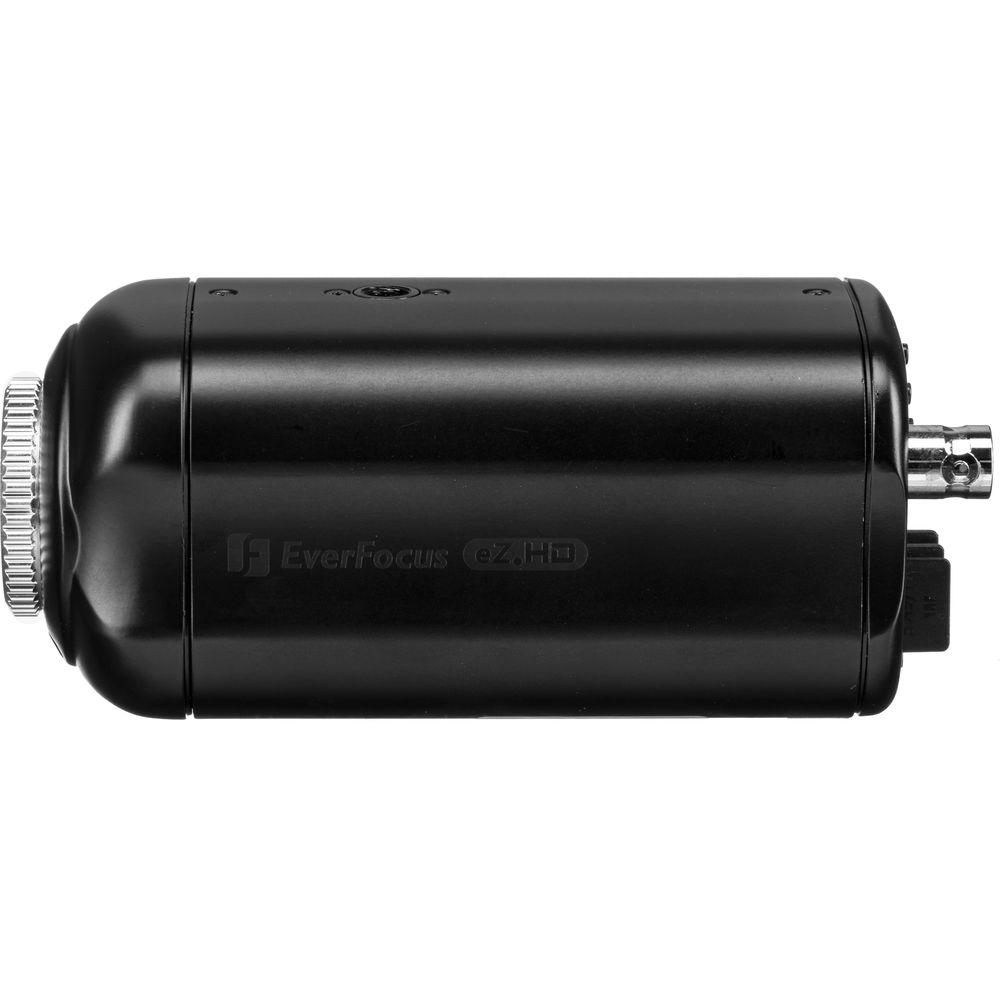

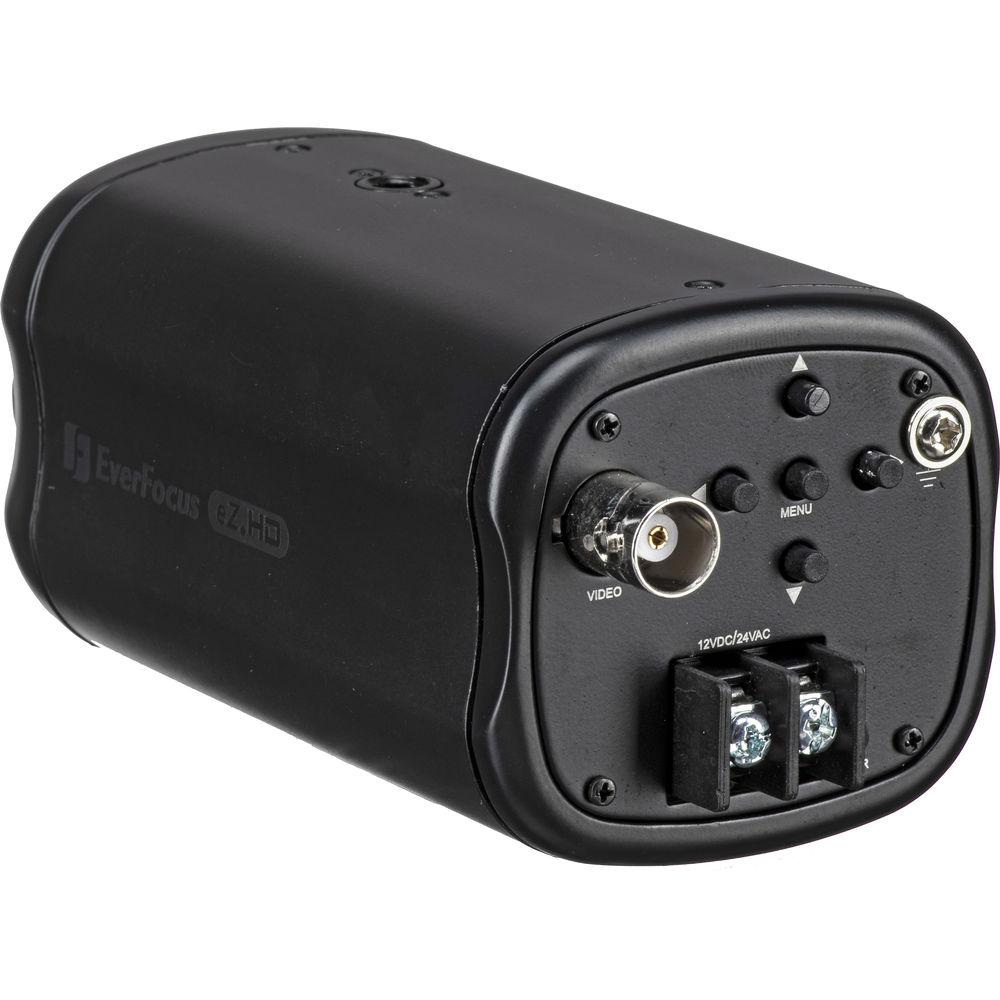

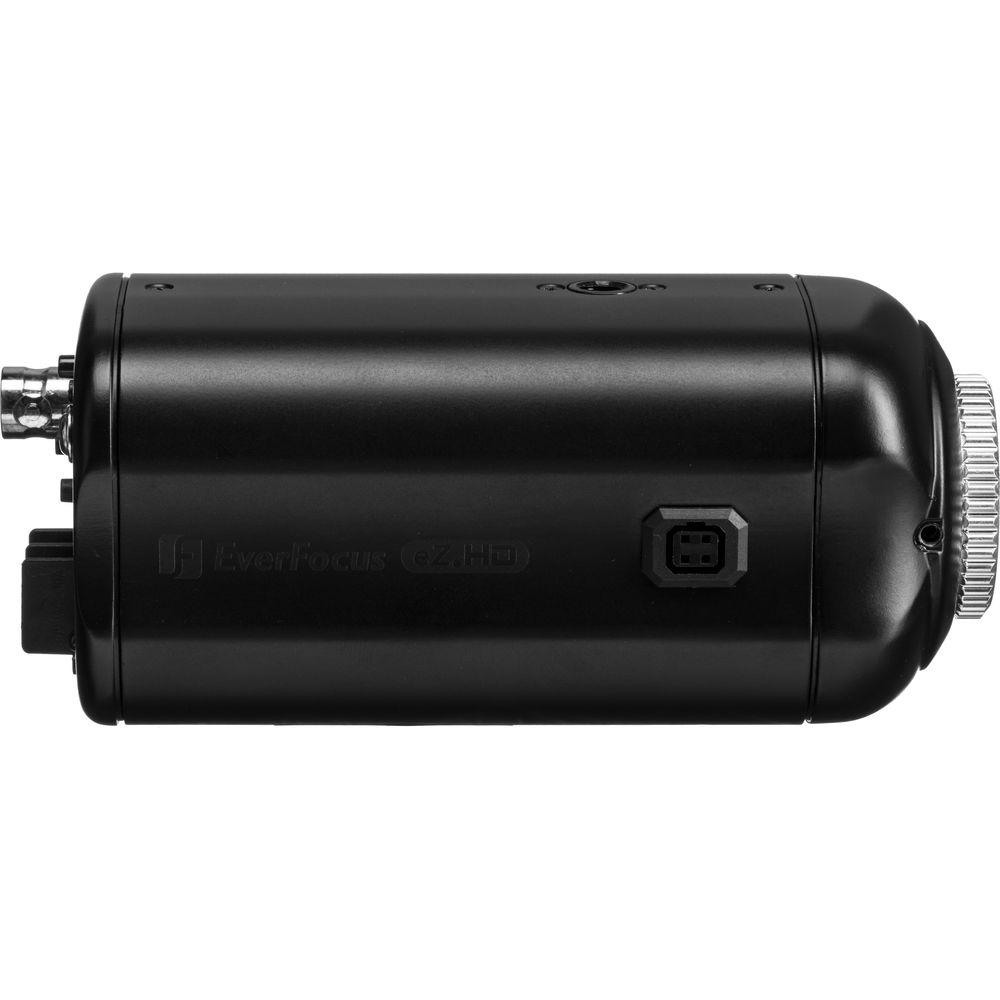

User Manual for EverFocus 1080p True Day Night Box Camera Click to enlarge the picture
Contents of the user manual for the EverFocus 1080p True Day Night Box
- Product category: Wired Analog & HD Cameras EverFocus
- Brand: EverFocus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for EverFocus Wired Analog & HD Cameras
 |
User manual for the EverFocus 1080p True Day Night Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any EverFocus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official EverFocus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a EverFocus product will considerably shorten its lifespan!
|
Product description Monitor an indoor area in either 1080p, 720p, or 960H video resolution using the 1080p True Day/Night Box Camera from EverFocus. The camera features a 1/2.9" Sony progressive-scan CMOS sensor for high sensitivity, and digital wide dynamic range improves visibility in high-contrast environments. The camera also offers backlight compensation, white balance, automatic gain control, and 3DNR for capturing high-quality images in a wide range of scenarios. Four selectable zones can be programmed for motion detection and privacy masking, enabling you to personalize your field of view. There is an OSD, which can be controlled using the built-in joystick, and both the camera settings and PTZ operation can be managed from your connected DVR. - 1080p full HD resolution for high-quality images
- 1/2.9" CMOS image sensor provides high sensitivity
- Digital wide dynamic range improves visibility in high contrast scenarios
- 3D noise reduction allows for clear images of fast moving subjects
- High signal-to-noise ratio images in low-light environments
- Supports 1080p, 720p, and 960H signal outputs
- Easily switch between resolutions using an OSD joystick
- Control camera OSD setting and PTZ operating directly from your DVR
UPC: 697101017527 In the Box EverFocus 1080p True Day/Night Box Camera (Black) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the EverFocus 1080p True Day Night Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEverFocus EQ900FB Specs | Image Sensor | 1/2.9" Sony 2.24 MP progressive-scan CMOS | | Video Format | NTSC / PAL (can be switched via OSD) | | Resolution | 1920 x 1080 | | Sensitivity | 0.003 lux (Sens-up 30x) | | Signal to Noise Ratio | Over 48 dB (AGC off) | | Electronic Shutter | Auto / Manual (30x to 1/50,000) / FLK | | Video Output | BNC 1.0 Vp-p, 75 ohms | | Gamma Correction | 0.45 | | BLC | Selectable: Off / BLC / HS BLC | | Automatic Gain Control | 15 levels | | White Balance | ATW / AWC-SET / Indoor / Outdoor / Manual / AWB | | Sync Mode | Internal | | Day/Night | Ext, Auto, Color, B&W | | Supports | UTC function | | OSD Languages | English, Simplified Chinese, Traditional Chinese, German, French, Italian, Spanish, Polish, Russian, Portuguese, Netherlands, Turkish | | Digital Noise Reduction | 2DNR / 3DNR / Off | | Defog | Off / Auto | | Wide Dynamic Range | Digital: On / Off / Auto | | Sens-Up | Off / Auto (2 to 30x) | | Mirror | Off / Mirror / V-Flip / Rotate | | Motion Detection | Off / On (4 selectable zones) | | Privacy Masking | Off / On (4 selectable zones) | | Power Source | 12 VDC / 24 VAC | | Power Consumption | 12 VDC: 2 W (max)
24 VAC: 1.8 W (max) | | Operating Temperature | -14 to 122°F / -26 to 50°C | | Humidity | Less than 80% | | Certifications | CE, RCC, RoHS | | Dimensions | 5.1 x 1.9 x 1.7" / 129.0 x 49.0 x 44.0 mm | | Weight | 8.5 oz / 240.0 g | | | | Package Weight | 0.755 lb | | Box Dimensions (LxWxH) | 6.75 x 3.85 x 3.85" |
