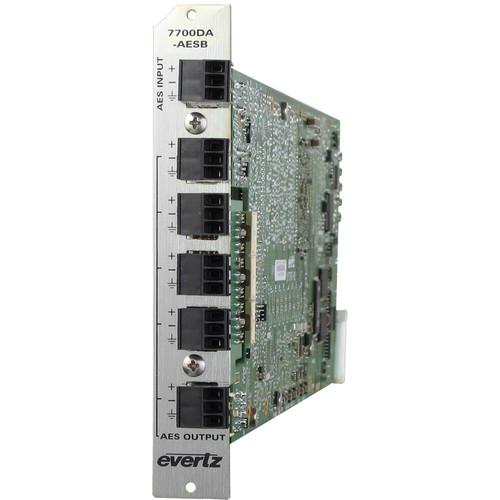

User Manual for Evertz Microsystems 7700DA-AESB Auto Equalizing Balanced AES EBU Distribution Amplifier with 3RU Rear Plate Click to enlarge the picture
Contents of the user manual for the Evertz Microsystems 7700DA-AESB Auto Equalizing Balanced
- Product category: Distribution Amplifiers (DA's) Evertz Microsystems
- Brand: Evertz Microsystems
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Evertz Microsystems Distribution Amplifiers (DA's)
|
User manual for the Evertz Microsystems 7700DA-AESB Auto Equalizing Balanced contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Evertz Microsystems product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Evertz Microsystems user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Evertz Microsystems product will considerably shorten its lifespan!
|
Product description The 7700DA-AESB Auto Equalizing Balanced AES/EBU Distribution Amplifier from Evertz Microsystems is a five-output distribution amplifier with auto-equalizing input and re-clocking for 110-ohm balanced AES signals. The distribution amplifier automatically equalizes AES signals on Belden 1800B cable when the drive signal is 7 V p-p. It re-clocks data with sampling frequencies of 32, 44.1, 48, and 96 kHz. The LED indicators on the edge provide quick and accurate assessment of the incoming signal integrity. The 7700DA-AESB also provides a contact-closure output that can be configured using on-board jumpers to assert when an input error condition exists. The 7700DA-AESB occupies one card slot and comes with a 3RU rear plate for use with 350FR, 7700FR-C, 7800FR or 7801FR multiframes. - Five 110-ohm balanced outputs
- AES3-1992 standard for AES audio on a 110-ohm twisted-pair cable
- Transformer coupled 110-ohm balanced input (selectable Hi-Z)
- Data reclocking provides jitter reduction
- EQ and reclock provides extended cable-length compensation
- Error LED indication for input PLL out of lock, parity error, or biphase coding error
- External indication of input error condition using contact closure output
In the Box Evertz Microsystems 7700DA-AESB Auto Equalizing Balanced AES/EBU Distribution Amplifier with 3RU Rear Plate 3RU Rear Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems 7700DA-AESB Auto Equalizing Balanced AES EBU Distribution Amplifier with 3RU Rear Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems 7700DA-AESB+3RU Specs | | | Standard | AES3-1992 | | Connector | 3-pin removable terminal strip | | Number of Inputs | 1 | | Input Level | 2 to 7 V p-p | | Coupling | Transformer | | Input Impedance | 110 Ohms (selectable Hi-Z) | | Return Loss | >14 dB 100 kHz to 6 MHz | | Equalization | Automatic to 984' (300 m) with Belden 1800B (or equivalent) @ 48 kHz AES signal | | Sampling Frequency | 32, 44.1, 48, and 96 kHz | | | | Number of Outputs | 5 per card, reclocked | | Connector | 3-pin removable terminal strip | | Output Level | 5 V p-p | | Output Impedance | 110 Ohms | | Return Loss | 30 dB, 100 kHz to 6 MHz | | | | Voltage | 12 VDC | | Power | 1.8 W | | EMI / RFI | Complies with FCC part 15, class A, EU EMC directive | | | | Number of Slots | 1 | | Dimensions | 1 x 12" (2.5 x 30.5 cm) | | Weight | 8 oz (226.8 g) |
