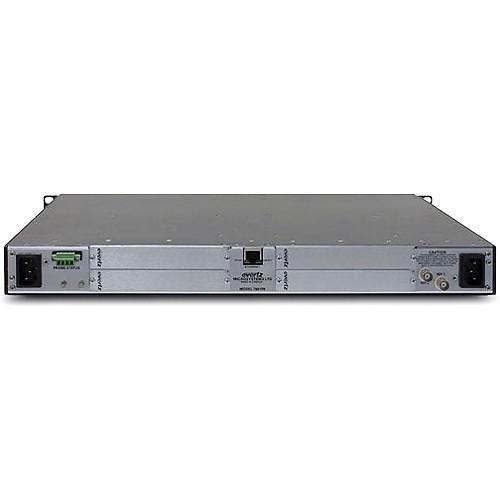

Product description The Evertz Microsystems 7801FC VistaLINK Frame Controller Card provides a single point of access to communicate with VistaLINK-capable modules. It features a 10Base-T/100Base-TX Ethernet port, and communication is facilitated through the use of Simple Network Management Protocol (SNMP).
The 7801FC VistaLINK Frame Controller handles all SNMP communications between the frame (7801FR) and the network manager (NMS), and serves as a gateway to individual cards in the frame. - Complies with IEEE 802.3 100Base-TX and 10Base-T Ethernet standards
- 100 Mb/s Fast Ethernet or 10 Mb/s Ethernet data transfer, selected by auto-negotiation
- Full-duplex or half-duplex operation, selected by auto-negotiation
- RJ-45 connector for network cable connection
- Card edge LEDs indicate module fault, microprocessor state, activity and link status
- Rear panel LEDs indicate Ethernet link, activity and speed
- Supports "ftp" upgrades for frame-wide firmware upgrades (product specific)
- Includes VistaLINK PRO (VLPRO-C) module software configuration tool
- Provides frame/chassis status information through VistaLINK including power supply status, frame status, card insertion/removal counters, 7801FC software version number and LED control
In the Box Evertz Microsystems 7801FC VistaLINK Frame Controller Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Evertz Microsystems 7801FC VistaLINK Frame Controller Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersEvertz Microsystems 7801FC Specs | Network Type | Fast Ethernet 100 Base-TX IEEE 802.3u standard for 100 Mb/s baseband CSMA/CD local area network
Ethernet 10 Base-T IEEE 802.3 standard for 10Mb/s baseband CSMA/CD local area network | | Connector | RJ-45 | | Power Requirements | 12 VDC / 8 W | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 16.65 lb | | Box Dimensions (LxWxH) | 23.1 x 21.7 x 5.7" |
